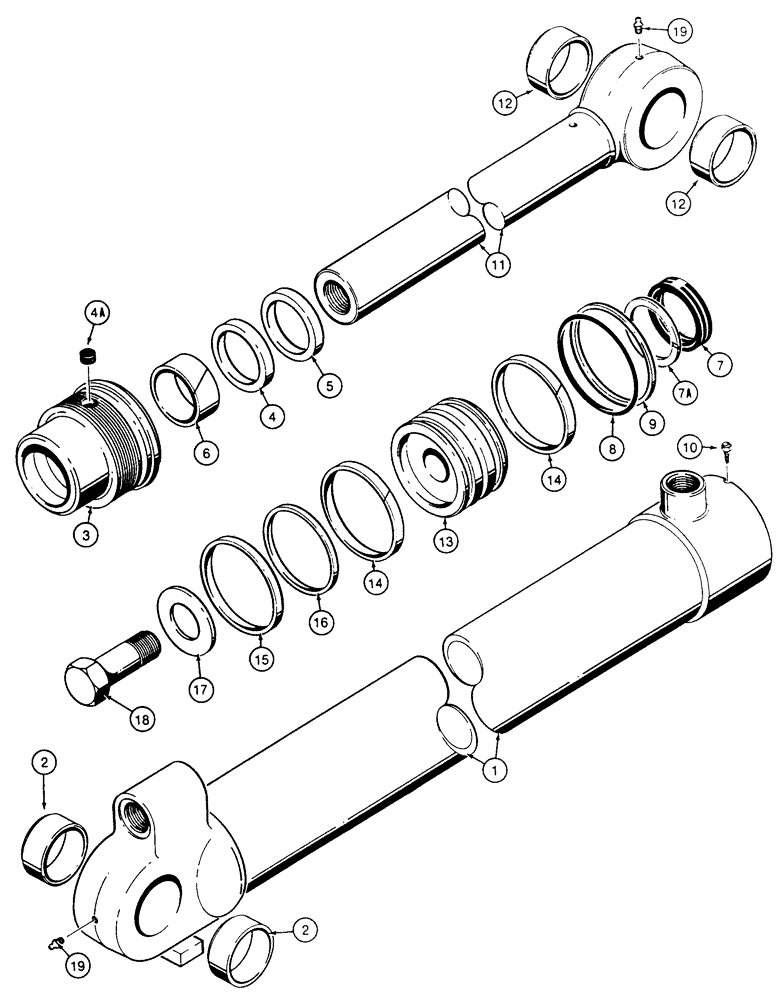

Запчасти Case 850E (8-048) - G101210 LOADER BUCKET CYLINDERS (08) - HYDRAULICS

G101210

CYLINDER

ASSEMBLY - 3-1/2 inch (89 mm) ID x 37-1/4 inch (946 mm) stroke loader bucket

2шт.

1

G101559

TUBE,45.69" L

- cylinder

1шт.

2

CASD37723

BUSHING

- tube

2шт.

3

1543021C1

CYLINDER END CAP

GLAND - cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

RING - retaining, gland

1шт.

4a

G102569

PLUG

- nylon, thead locking, gland, if used

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of Seal Kit P/N 1543274C1

1шт.

6

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING - center

1шт.

Part of Seal Kit P/N 1543274C1

1шт.

7

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

- U-cup, piston rod, wide, with O-ring

1шт.

Part of Seal Kit P/N 1543274C1

1шт.

7

G100778

SEAL

- U-cup, piston rod, service option - severe heat or cold

1шт.

7a

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

- piston rod, narrow

1шт.

Part of Seal Kit P/N 1543274C1

1шт.

8

238-5238

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

Gland -238, 70 Duro, 3.484" ID x .139" Thk

1шт.

Part of Seal Kit P/N 1543274C1

1шт.

9

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of Seal Kit P/N 1543274C1

1шт.

10

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 ", If used

1шт.

11

G35453

ROD

- piston, 2 inch (51mm) diameter

1шт.

12

CASD37723

BUSHING

- rod

2шт.

13

G100692

PISTON

- cylinder

1шт.

14

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

2шт.

Part of Seal Kit P/N 1543274C1

1шт.

15

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

- backup, piston seal

1шт.

Part of Seal Kit P/N 1543274C1

1шт.

16

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit P/N 1543274C1

1шт.

17

G32351

WASHER

- flat, hardened, special

1шт.

18

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

- Hex, 1-1/4"-12 NF x 2-3/4", G8

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

2шт.

1543274C1

SEAL KIT

KIT - seal, Includes: Ref. 5, 6, 7 (G107923), 7A, 8, 9 and 14-16.

1шт.
