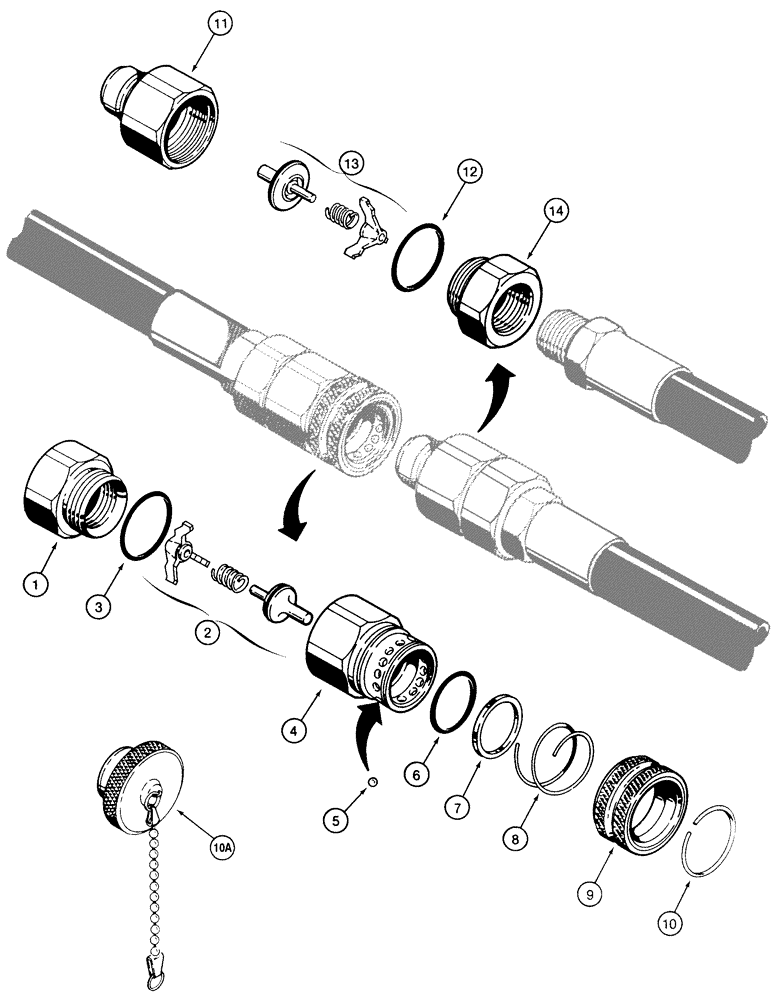

Запчасти Case 850E (8-044) - HYDRAULIC QUICK DISCONNECT COUPLINGS, D52800 FEMALE COUPLING (08) - HYDRAULICS

D52800

COUPLING, QUICK, FEM

COUPLING - quick disconnect, female

1шт.

1

D31975

FITTING

ADAPTER - end, coupling

1шт.

2

D53915

VALVE

ASSEMBLY - coupling

1шт.

3

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- adapter

1шт.

4

D53916

BODY

- coupling

1шт.

5

211-1007

BALL,7/32" Dia

- 7/32", Gr 25, Chrome alloy steel

10шт.

6

238-5213

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

- body

1шт.

7

D54276

RING

BACKUP RING - O-ring

1шт.

8

D31979

VALVE SPRING

SPRING - sleeve

1шт.

9

D31980

SLEEVE CYLINDER

SLEEVE - ball retaining

1шт.

10

D31981

RING

- retaining, spring

1шт.

10a

D39924

PLUG

- dust, for female coupling

1шт.

D52694

QUICK MALE COUPLING

COUPLING - quick disconnect, male

1шт.

11

D31971

BODY

- coupling, D54694 male

1шт.

12

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- body, D54694 male coupling

1шт.

13

D53915

VALVE

ASSEMBLY - coupling, D54694 male

1шт.

14

D31975

FITTING

ADAPTER - end, coupling, D54694 male

1шт.
