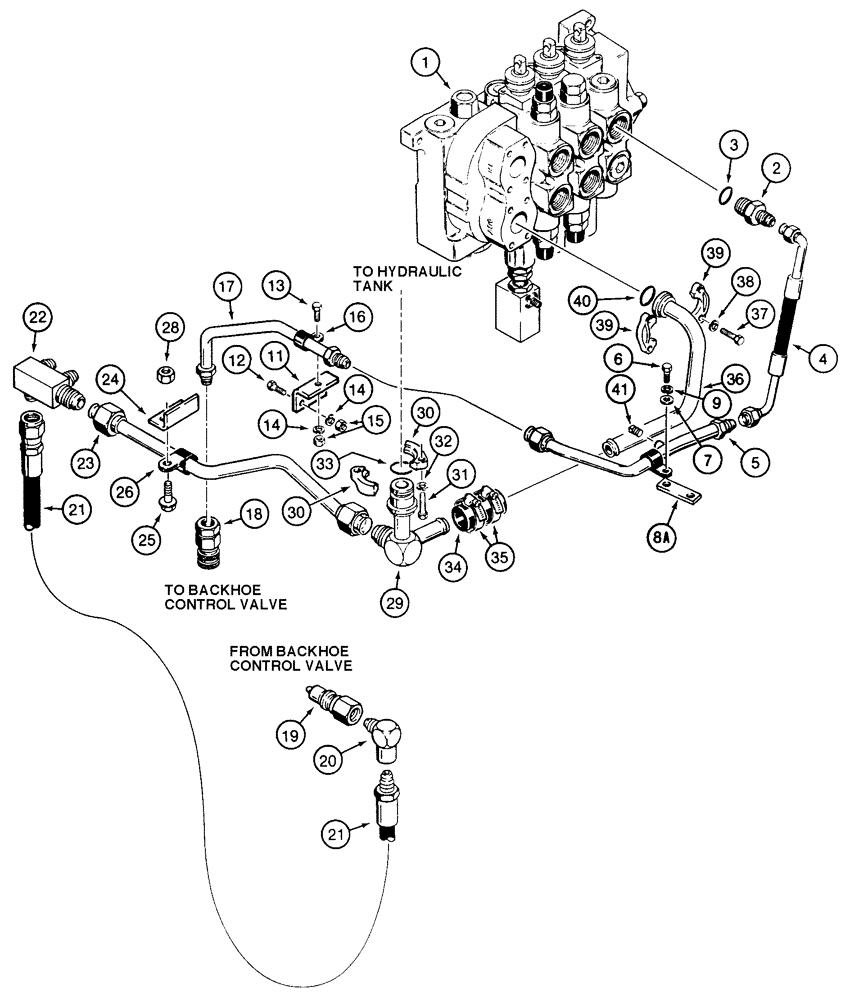

Запчасти Case 850E (8-038) - BACKHOE HYDRAULIC CIRCUIT, CONTROL VALVE TO BACKHOE AND RESERVOIR (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - equipment control, loader models with backhoe, for correct assembly and components, see page 8-83 or 8-87

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 1-5/16-12 inch O-ring boss

1шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

4

R36952

HOSE

- from control valve backhoe section, A port

1шт.

5

R56930

TUBE

- from control valve to tube at female quick disconnect

1шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

7

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

8

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type, Tube to seat and and tank frame 1", Insul, 3/8" Bolt

1шт.

8a

R53701

LINK

- range control lever, Serial Range: attaches-frame

1шт.

9

492-11038

LOCK WASHER,3/8"

2шт.

10

425-106

NUT,3/8"-16, Cl 5

1шт.

11

R36023

BRACKET

- tube support, attaches to seat and tank frame

1шт.

12

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Bracket mounting Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

13

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

Clamp mounting Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

14

492-11038

LOCK WASHER,3/8"

3шт.

15

425-106

NUT,3/8"-16, Cl 5

3шт.

16

D88052

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

- P-type, 1 inch ID, tube support

1шт.

17

R35169

TUBE,1" OD

- backhoe supply, to female quick disconnect coupling

1шт.

18

D52800

COUPLING, QUICK, FEM

COUPLING - quick disconnect, female, parts list figure 8-44

1шт.

19

D52694

QUICK MALE COUPLING

COUPLING - quick disconnect, male, parts list figure 8-44

1шт.

20

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

- street, 90 degree, 3/4 inch PT x female PT

1шт.

21

R36060

HOSE

- 45 inch (1143 mm) long, return from backhoe to control valve

1шт.

22

R54565

MANIFOLD

- backhoe hydraulic return and cooling lines

1шт.

23

R50923

TUBE,1.25" OD

- return, manifold to reservoir

1шт.

24

R50985

SUPPORT

BRACKET - tube support, weld to seat and tank frame

1шт.

25

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

1шт.

26

D41564

- P-type, return tube

1шт.

28

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

29

R35286

TUBE,1.25" OD x 4.12, 3.99" L

TEE - return, to hydraulic reservoir and control valve

1шт.

30

R27612

CLAMP

- split flange, to hydraulic reservoir

2шт.

31

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

32

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

33

238-5325

O-RING,0.21" Thk x 1.475" ID, -325, Cl 5, 75 Duro

-325, 70 Duro, 1.475" ID x .210" Thk, Tee, at hydraulic reservoir

1шт.

34

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- cut from S118465X bulk hose, see below 31.80 mm ID x 101.60 mm ID, SAE 100R3

1шт.

For completion of the backhoe hydraulic circuit see the 35C Backhoe Parts Catalog, form no. 8-2062.

1шт.

35

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

CLAMP, HOSE, , Adjustable #24, 1.06/2.00 Type F Worm

2шт.

36

R35206

TUBE,1.25" OD

- return, to control valve

1шт.

37

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

- hex, 7/16 NC x 1-1/2 inch

4шт.

38

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

39

A12301

CLAMP,Half

CLAMP - split flange, to control valve

2шт.

40

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

Tube -222, 90 Duro, 1.484" ID x .139" Thk

1шт.

41

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket, 1/8 inch PT

1шт.

S118465X

LARGE HOSE

HOSE - bulk, 1-1/4 (32) x 1-3/4 (45) x 180 inch (4572 mm) long

1шт.
