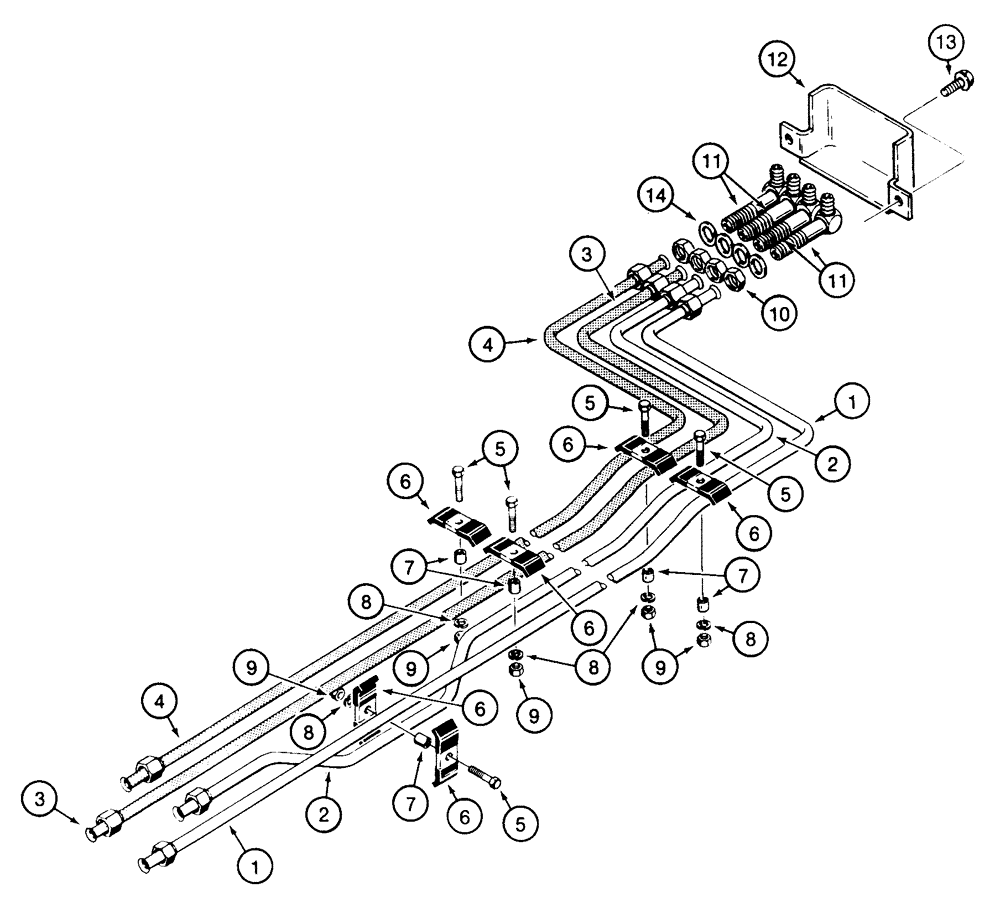

Запчасти Case 850E (8-028) - DOZER TILT AND ANGLE HYDRAULIC CIRCUITS, TUBES TO GRILLE (08) - HYDRAULICS

1

R34844

TUBE,0.5" OD

- lower port, tilt circuit

1шт.

2

R34850

TUBE,0.5" OD

- upper port, tilt circuit

1шт.

3

R34846

TUBE,0.5" OD

- lower port, angle circuit

1шт.

4

R34848

TUBE,0.5" OD

- upper port, angle circuit

1шт.

5

413-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

5шт.

6

R25528

CLAMP

- support, tubes

6шт.

7

D76208

SPACER

- clamps

5шт.

8

492-11038

LOCK WASHER,3/8"

5шт.

9

425-106

NUT,3/8"-16, Cl 5

5шт.

10

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

4шт.

11

R29758

FITTING

ELBOW - 90 degree, special, bulkhead

4шт.

12

R34008

GUARD

- bulkhead elbows

1шт.

13

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

2шт.

14

D35268

SHIM,1/32" Thk

(25/32" ID x 1-1/4" OD), Special finish 1/32" Thk

4шт.
