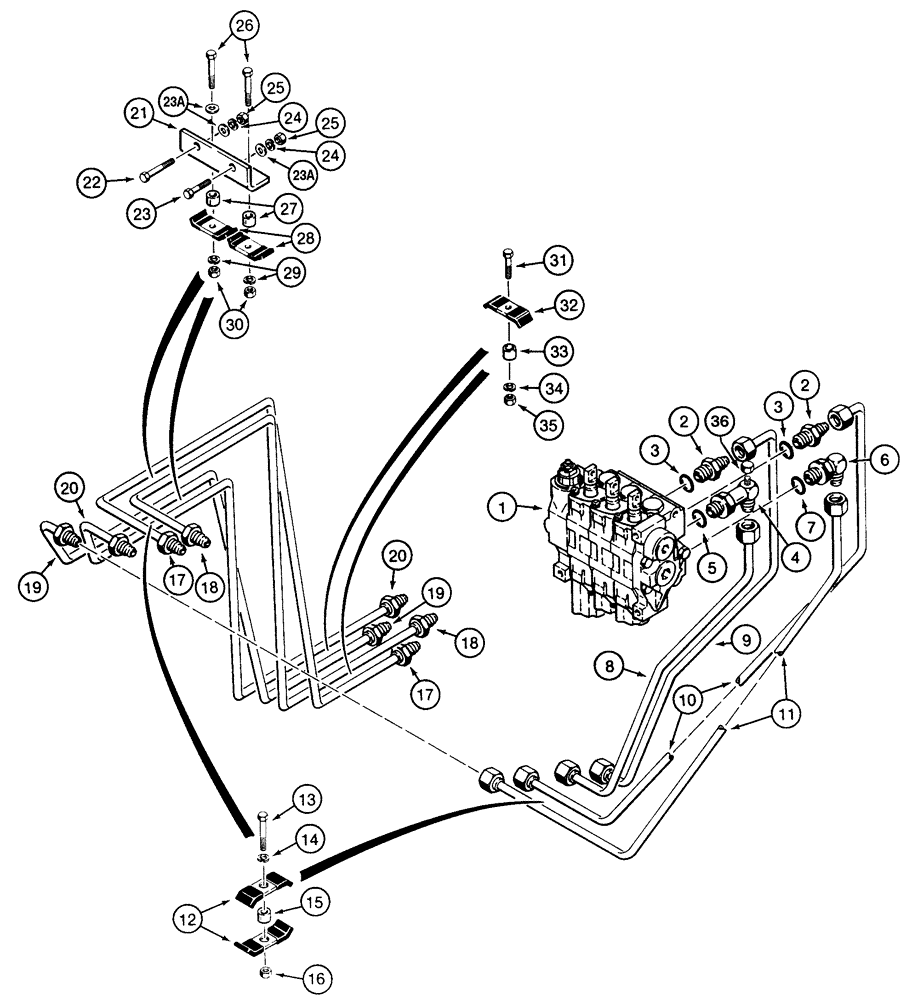

Запчасти Case 850E (8-026) - DOZER TILT AND ANGLE HYDRAULIC CIRCUITS, CONTROL VALVE AND DESCENDING TUBES (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, for correct assembly and components, see figure 8-102 or 8-104

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, upper ports 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

127370A1

TEE

- special, tilt circuit, lower port

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

6

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 3/4-16 flare x 7/8-14 inch adj O-ring boss, angle circuit, lower port

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

R58095

TUBE,0.5" OD

- lower port, tilt circuit

1шт.

9

R58093

TUBE,0.5" OD

- upper port, tilt circuit

1шт.

10

R58101

TUBE ASSY.,0.5" OD

TUBE - upper port, angle circuit

1шт.

11

R58103

TUBE ASSY.,0.5" OD

TUBE - lower port, angle circuit

1шт.

12

D40236

CLAMP

- support, tubes

4шт.

13

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

2шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

D76208

SPACER

- clamp

2шт.

16

425-106

NUT,3/8"-16, Cl 5

2шт.

17

101374A1

TUBE,12.7 mm OD, 552, 490 mm Length

- lower port, tilt circuit

1шт.

See Figure 8-28 for tubes to grille.

1шт.

18

101370A1

TUBE,12.7 mm OD, 571, 490 mm Length

- upper port, tilt circuit

1шт.

See Figure 8-28 for tubes to grille.

1шт.

19

101378A1

TUBE,12.7 mm OD, 621, 620 mm Length

- lower port, angle circuit

1шт.

See Figure 8-28 for tubes to grille.

1шт.

20

101376A1

TUBE,12.7 mm OD, 354, 640 mm Length

- upper port, angle circuit

1шт.

See Figure 8-28 for tubes to grille.

1шт.

21

R58842

BRACKET

- support, tubes

1шт.

22

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch, bracket mounting, LH

1шт.

23

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, bracket mounting, right-hand

1шт.

23a

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

3шт.

24

492-11038

LOCK WASHER,3/8"

2шт.

25

425-106

NUT,3/8"-16, Cl 5

2шт.

26

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch, Camp mounting

2шт.

27

D76208

SPACER

- clamp

2шт.

28

R25528

CLAMP

- support, tubes

2шт.

29

492-11038

LOCK WASHER,3/8"

2шт.

30

425-106

NUT,3/8"-16, Cl 5

2шт.

31

413-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

2шт.

32

R25528

CLAMP

- support, tubes

2шт.

33

D76208

SPACER

- clamp

2шт.

34

492-11038

LOCK WASHER,3/8"

2шт.

35

425-106

NUT,3/8"-16, Cl 5

2шт.

36

218-752

CAP,37 Degree, 7/16"-20

Flare 37º, 7/16"-20

1шт.
