Запчасти Case 850D (7-06) - BRAKE MASTER CYLINDER ASSEMBLY (07) - BRAKES

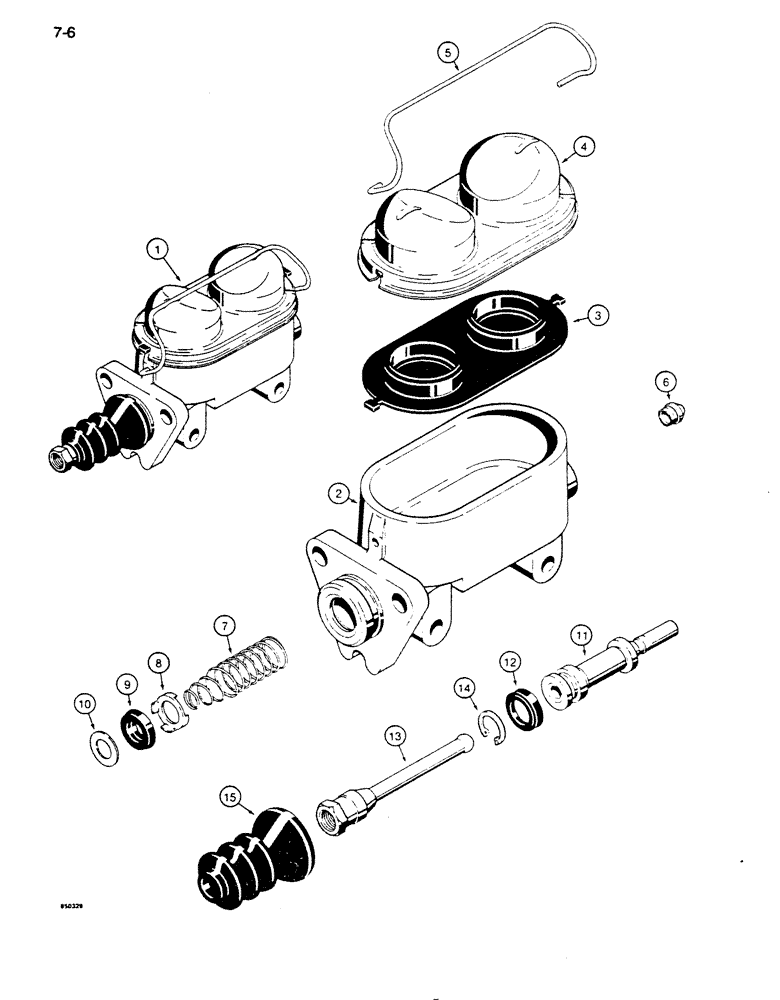

Схема запчастей Case 850D - (7-06) - BRAKE MASTER CYLINDER ASSEMBLY (07) - BRAKES
6
9
14
13
15
5
3
1
12
4
7
10
2
8
11

Артикул

Название

Примечание

Количество

1

D131596

MASTER CYLINDER

CYLINDER,MASTER brake, Includes: Ref. 2 - 15

2шт.

2

NSS

NOT SOLD SEPARAT

BODY - master cylinder

1шт.

3

N6832

GASKET

diaphragm, cover

1шт.

4

N6833

COVER

filler cap

1шт.

5

N6831

BAIL

cover

1шт.

6

N6825

SEAT

tube

1шт.

N6823

PISTON

PISTON ASSEMBLY - brake master cylinder, Includes: Ref. 7 - 13

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING - return

1шт.

8

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

9

N6830

CUP

seal, inner

1шт.

10

N6828

GUARD

flat, cup support

1шт.

11

NSS

NOT SOLD SEPARAT

PISTON - master cylinder

1шт.

12

N6829

SEAL

seal, outer

1шт.

13

L32137

ROD

push

1шт.

14

A42256

SNAP RING,0.901", Int, #90

Master cylinder

1шт.

15

N8819

BOOT

push rod

1шт.

Выбрано товаров: 16
