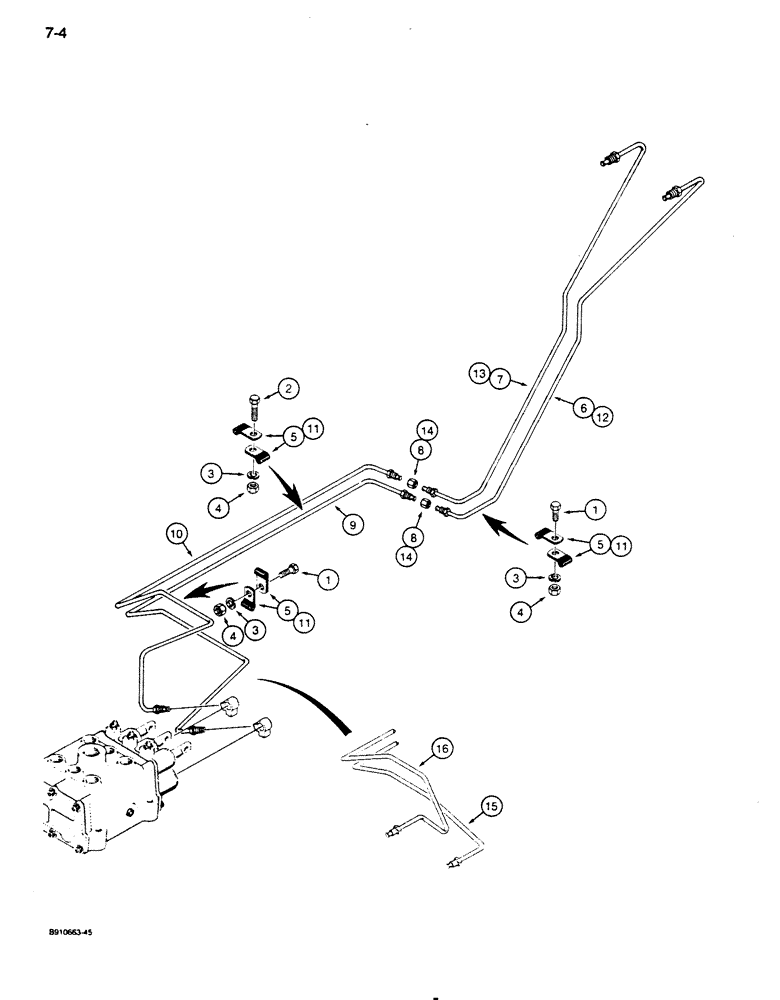

Запчасти Case 850D (7-04) - POWER BRAKE HYDRAULIC LINES, MASTER CYLINDERS TO TRANSMISSION CONTROL VALVE (07) - BRAKES

1

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

2

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

3

192-21

LOCK WASHER,3/8"

3шт.

4

129-103

NUT,Hex, 3/8" - 16, Gr 5

3шт.

5

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

3/16" 95 mm) OD brake line tubes

6шт.

6

R52054

TUBE,0.187" OD

from master brake cylinder, right-hand, 3/16" 95 mm) OD line

1шт.

7

R52052

TUBE,0.187" OD

from master brake cylinder, left-hand, 3/16" 95 mm) OD line

1шт.

8

222-1052

HYD CONNECTOR,3/16" Inv Fl

3/8-24 inch inverted flare, 3/16" 95 mm) OD brake line tubes

2шт.

9

R52058

TUBE,0.187" OD

to transmission control valve, right-hand, 3/16" 95 mm) OD brake line

1шт.

10

R52056

TUBE,0.187" OD

to transmission control valve, left-hand, 3/16" 95 mm) OD brake line

1шт.

11

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

5/16" (5 mm) OD brake line tubes

6шт.

12

R57626

TUBE,7.9 mm OD

from master brake cylinder, right hand, 5/16" (5 mm) OD brake line

1шт.

13

R57624

TUBE,7.9 mm OD

from master brake cylinder, left hand, 5/16" (5 mm) OD line

1шт.

14

222-1054

HYD CONNECTOR,5/16" Inv Fl

1/2 -20 inch inverted flare, 5/16" (5 mm) OD brake line tubes

2шт.

14

222-1054

HYD CONNECTOR,5/16" Inv Fl

1/2 -20 inch inverted flare, 5/16" (5 mm) OD brake line tubes

2шт.

15

R57630

TUBE,7.9 mm OD

to transmission control valve, right hand, 5/16" (5 mm) OD brake line

1шт.

16

R57628

TUBE,7.9 mm OD

to transmission control valve, left hand, 5/16" (5 mm) OD brake line

1шт.
