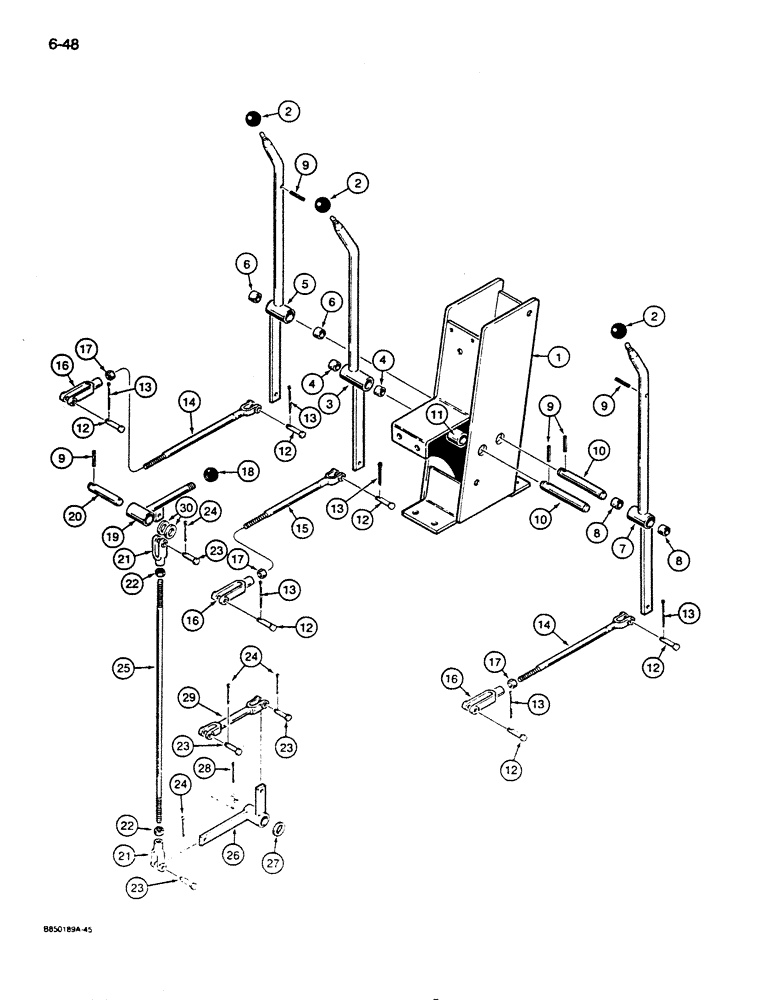

Запчасти Case 850D (6-48) - TRANSMISSION CONTROLS (06) - POWER TRAIN

1

REF

INSTRUCTION

CONTROL TOWER - transmission controls, for correct tower, mounting, and top cover, see Figure 9-032

1шт.

2

70213

KNOB

control lever

3шт.

3

R32065

LEVER

forward-reverse, rear mounting, Includes: Ref. 4

1шт.

4

R31144

BUSHING

control lever

2шт.

5

R32057

LEVER

left-hand, high-low, forward mounting, Includes: Ref. 6

1шт.

6

R31144

BUSHING

control lever

2шт.

7

R32058

LEVER

right-hand, high-low, forward mounting, Includes: Ref. 8

1шт.

8

R31144

BUSHING

control lever

2шт.

9

138-319

LOCK PIN,3/16" x 1 1/4", Slotted

5шт.

10

R32064

SHAFT

control levers

2шт.

11

R32884

SPACER

forward-reverse control lever

1шт.

12

141-53

CLEVIS PIN,5/16" x .940"

6шт.

13

132-331

COTTER PIN,3/32" x 5/8"

6шт.

14

R34012

ROD

high-low

2шт.

15

R34011

ROD

forward-reverse

1шт.

16

H44198

YOKE

UNIVERSAL JOINT YOKE 5/16" - 24 NF, plated

3шт.

17

129-122

NUT,5/16"-24, G5

3шт.

18

D49996

KNOB

control lever, dual range

1шт.

19

R32074

LEVER

dual range

1шт.

20

D29768

SHAFT

control lever, dual range

1шт.

21

213-41

ADJUSTABLE CLEVIS,3/8"-24

2шт.

22

129-123

NUT,3/8"-24, G5

2шт.

23

141-54

CLEVIS PIN,3/8" x 1 1/16"

4шт.

24

132-331

COTTER PIN,3/32" x 5/8"

4шт.

25

R32078

ROD

range control lever

1шт.

26

R32071

LEVER

dual range control

1шт.

27

192-25

LOCK WASHER,5/8"

1шт.

28

132-312

COTTER PIN,3/16" x 1 1/4"

1шт.

29

D30319

ROD

range control

1шт.

30

D44330

SHIM,.031" Thk

Dual range control lever

1шт.
