Запчасти Case 850D (6-46) - TRANSMISSION OIL FILTERS, R35926 OIL FILTER - SUCTION LINE/ R48993 TRANSMISSION OIL FILTER (06) - POWER TRAIN

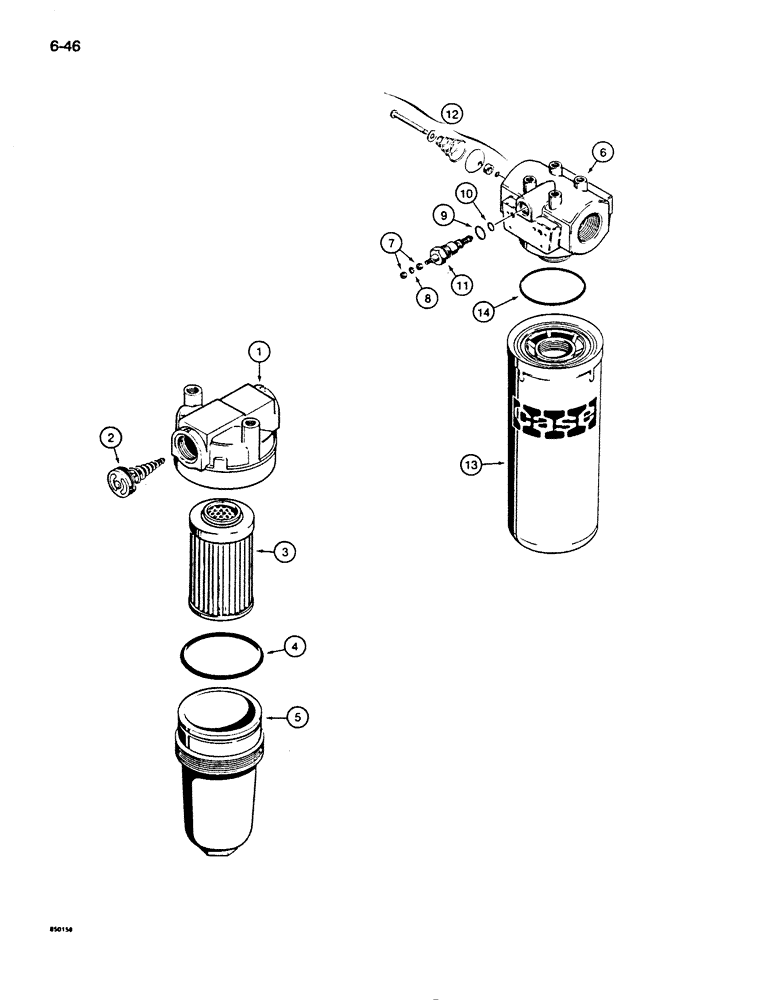

Схема запчастей Case 850D - (6-46) - TRANSMISSION OIL FILTERS, R35926 OIL FILTER - SUCTION LINE/ R48993 TRANSMISSION OIL FILTER (06) - POWER TRAIN
12
3
11
6
5
4
1
2
13
7
14
10
9
8

Артикул

Название

Примечание

Количество

R35926

FILTER

oil, suction line, Includes: Ref. 1 - 5

1шт.

D78327

HEAD (CYLINDER)

filter, Includes: Ref. 1 & 2

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

2

D49376

VALVE

head

1шт.

D32211

FILTER, ELEMENT

ELEMENT, FILTER KIT, Includes: Ref. 3 & 4

1шт.

3

NSS

NOT SOLD SEPARAT

ELEMENT - screen

1шт.

4

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

element

1шт.

5

D43799

HOUSING

filter assembly

1шт.

R48993

FILTER

transmission oil, R48993, Includes: Ref. 6 - 14

1шт.

6

NSS

NOT SOLD SEPARAT

HEAD - R48993 transmission oil filter

1шт.

N7929

INDICATOR

electrical, R48993 transmission oil filter, Includes: Ref. 7 - 11

1шт.

7

129-667

NUT,#10-32, LH

R48993 transmission oil filter

2шт.

8

193-99

LOCK WASHER,Int Tooth, #10

R48993 transmission oil filter

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

R48993 transmission oil filter

1шт.

10

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

Inner, small, R48993 transmission oil filter

1шт.

11

NSS

NOT SOLD SEPARAT

RESTRICTION INDICATOR - electrical, R48993 transmission oil filter

1шт.

12

NSS

NOT SOLD SEPARAT

BYPASS VALVE - R48993 transmission oil filter

1шт.

N9025

HYDRAULIC OIL FILTER

R48993 transmission oil filter, Includes: Ref. 13 & 14

1шт.

13

NSS

NOT SOLD SEPARAT

ELEMENT - R48993 transmission oil filter

1шт.

14

N9026

O-RING

element, R48993 transmission oil filter

1шт.

Выбрано товаров: 20
