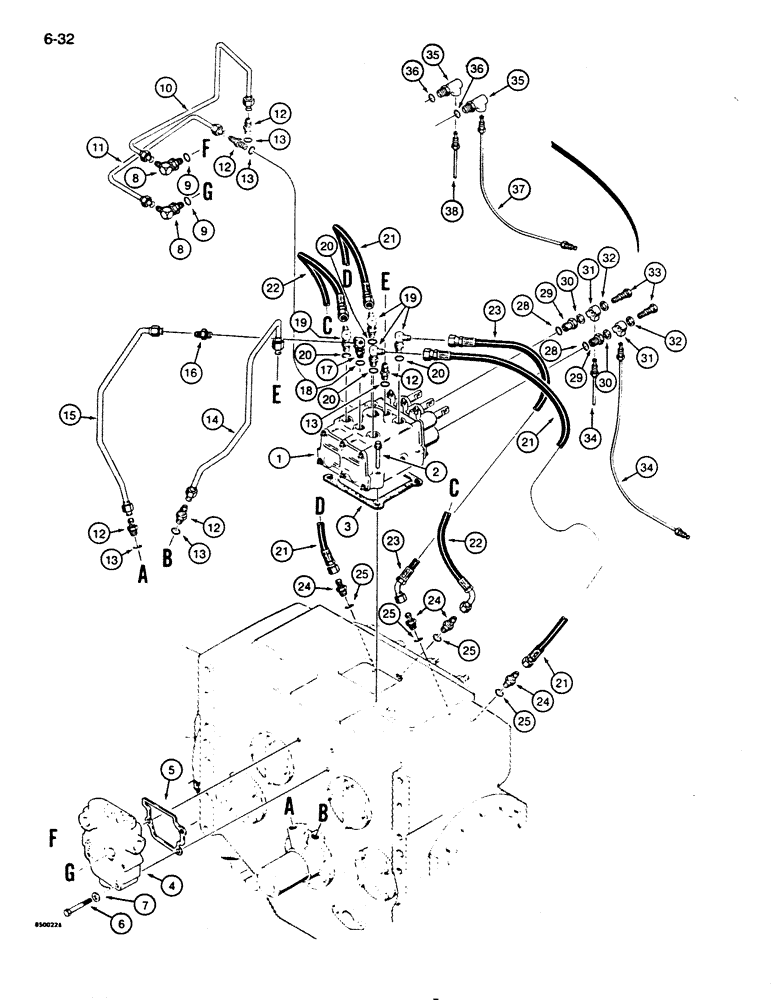

Запчасти Case 850D (6-32) - TRANSMISSION HYDRAULIC LINES (06) - POWER TRAIN

1

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - transmission, for correct assembly and components, see Figure 6-34

1шт.

2

166-49

12 PT SCREW,Flg, 3/8" - 16 x 2", Gr 8

Ferry head, 3/8" - 16 NC x 2"

4шт.

3

1986527C1

GASKET

valve to housing, if used

1шт.

3a

B17504

GASKET

Eliminator No. 504, 300 ml cartridge, control valve to transmission housing, if used, not shown

1шт.

4

G110505

VALVE

modulator, parts list Figure 6-36

1шт.

5

G105635

GASKET

modulator valve

1шт.

6

26-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

3шт.

7

D32117

COPPER WASHER

3/8", if used

3шт.

8

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes Ref. 9

2шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Elbow

1шт.

10

G108277

HYD TUBE

forward-reverse

1шт.

11

G108278

HYD TUBE,0.5" OD

high-low

1шт.

12

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Straight, Male, Incl. Ref 13

5шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Adapter

1шт.

14

G108275

TUBE,12.7 mm OD

forward

1шт.

15

G108276

TUBE,0.5" OD

reverse

1шт.

16

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

straight, male

1шт.

17

G107178

ELBOW

90 degree, tapped for alarm switch plumbing, Includes: Ref. 18

1шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Elbow

1шт.

19

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes Ref. 20

4шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Elbow

1шт.

21

G108248

HOSE

right-hand low and left-hand high clutches

2шт.

22

G108247

HOSE

left-hand low clutch

1шт.

23

G108060

HOSE

right-hand high clutch

1шт.

24

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Straight, Male, Incl. Ref 25

4шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Adapter

1шт.

28

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Adapter, used on G107154 & G107155 transmissions

2шт.

29

72125

ADAPTER

straight, used on G107154 & G107155 transmissions

2шт.

30

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

inner, Y-fitting, used on G107154 & G107155 transmissions

2шт.

31

51200243

FITTING

special, Y-fitting, used on G107154 & G107155 transmissions

2шт.

32

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

outer, Y-fitting, used on G107154 & G107155 transmissions

2шт.

33

A12864

BOLT

special, Y-fitting, used on G107154 & G107155 transmissions

2шт.

34

A50358

TUBE

control valve to brake cylinder, used on G107154 & G107155 transmissions

2шт.

35

1348882C1

FITTING

TEE - special, at control valve, used on 1348893C1 & 1348894C1 transmissions, Includes: Ref. 36

2шт.

36

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Used on 1348893C1 & 1348894C1 transmissions

1шт.

37

1348951C1

TUBE,6.35 mm OD, 290, 70.3 mm Length

valve to right-hand brake, used on 1348893C1 & 1348894C1 transmissions

1шт.

38

1348953C1

TUBE

valve to left-hand brake, used on 1348893C1 & 1348894C1 transmissions

1шт.
