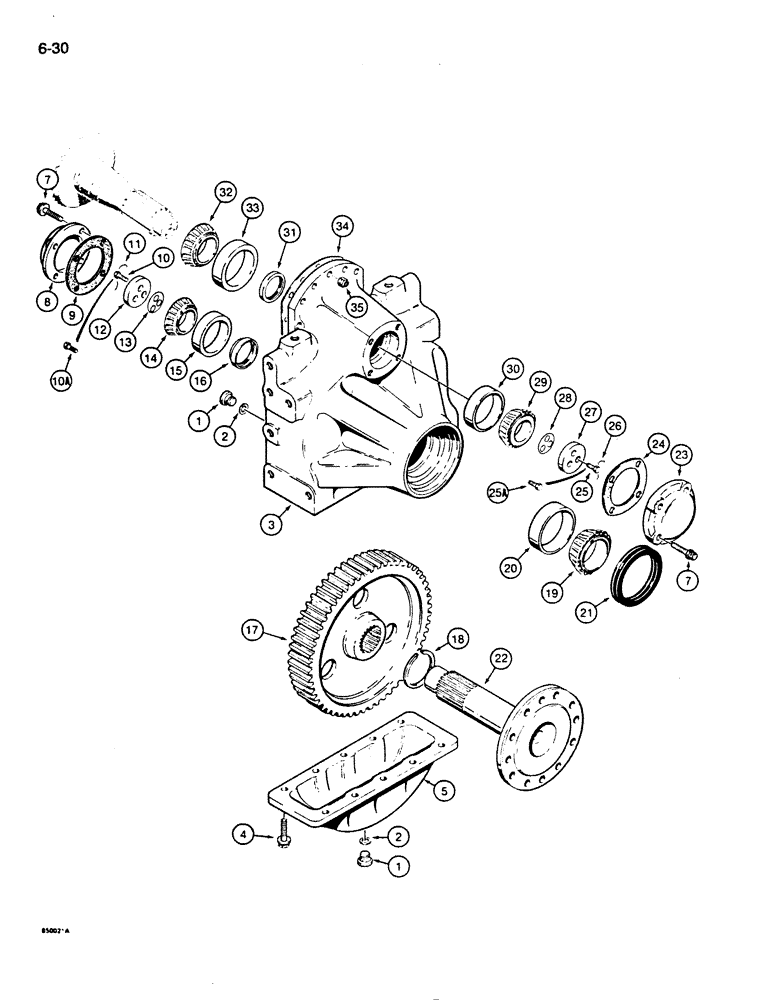

Запчасти Case 850D (6-30) - TRANSMISSION FINAL DRIVE, 70" (1778 MM) GAUGE LGP DOZER MODELS (06) - POWER TRAIN

G107165

TRANSMISSION

70" (1778 mm) gauge LGP dozer only, Includes: Ref. 1 - 35

2шт.

1

A50014

PLUG

fill and drain, order 218-5210 plug below

2шт.

1

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Not shown

2шт.

2

G102141

SEALING WASHER

copper, for A50014 plug, if used

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

If used, not shown

2шт.

3

G103712

HOUSING

final drive assembly

1шт.

4

166-87

BOLT,Flg, 1/2" - 13 x 1 1/2", Gr 8

Ferry head, 1/2" - 13 NC x 1-1/2"

10шт.

5

1348875C1

COVER

bottom, see Ref. 6 for sealant to housing, was G101601

1шт.

6

REF

INSTRUCTION

SEALANT - Gasket Eliminator 504, pan to housing, not shown

1шт.

7

166-85

12 PT SCREW,Flg, 1/2" - 13 x 1", Gr 8

Ferry head, 1/2" - 13 NC x 1"

8шт.

8

G103711

COVER

final drive shaft

1шт.

9

G103710

GASKET

cover, final drive shaft

1шт.

10

R19888

SCREW

special, used with tie wire, order item 10A

3шт.

10a

28-920

BOLT,Hex, 9/16" - 18 x 1-1/4", Gr 8

3шт.

11

391-825

ELECTRICAL WIRE

WIRE tie, No. 20 x 70 inch, if used

1шт.

12

G102001

PLATE

bearing retaining, final drive shaft

1шт.

13

G101997

SHIM,.005" Thk

Plate

1шт.

13

G101998

SHIM,.007" Thk

Plate

1шт.

13

G101999

SHIM,.020" Thk

Plate

1шт.

14

63461C91

BEARING ASSY,3.25" ID x 5.25" OD x 1.5625"

final drive shaft, inner

1шт.

15

160301R1

BEARING ASSY,133.35mm OD x 32.55mm W

tapered roller bearing, inner

1шт.

16

A50721

SPACER

final drive shaft

1шт.

17

G103588

GEAR WHEEL

final drive

1шт.

18

G106949

SNAP RING,#393, 3.713, Ext

gear

1шт.

19

L33736

ROLLER BEARING

final drive shaft, outer

1шт.

20

L33731

BEARING CUP,154.9 mm OD x 27.9 mm

apered roller bearing, outer

1шт.

21

G109655

SEAL

final drive shaft

1шт.

22

G106950

SHAFT

final drive

1шт.

Ref #22A D455344 Final Drive Seal guard, (Hole Pattern must be modified)

1шт.

23

G105822

COVER ASSY

upper, bevel gear

1шт.

24

G101598

GASKET

upper cover

1шт.

25

A31107

BOLT

special, used with tie wire, order Ref. 25A

3шт.

25a

26-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

3шт.

26

391-825

ELECTRICAL WIRE

WIRE tie, No. 20 x 70 inch, if used

1шт.

27

G102108

PLATE

bearing retaining, bevel gear

1шт.

28

G100328

SHIM,.005" Thk

Plate

1шт.

28

G100329

SHIM,.007" Thk

Plate

1шт.

28

G100330

SHIM,.020" Thk

Plate

1шт.

29

895102C91

BEARING

bevel gear, outer

1шт.

30

895366C1

BEARING CUP

tapered roller, outer

1шт.

31

A32015

SEAL,82.55mm ID x 114.3mm OD x 11.91mm Thk

housing, bevel gear

1шт.

32

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

bevel gear, inner

1шт.

33

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

tapered roller bearing, inner

1шт.

34

A50199

SHIM,.003" Thk

Housing

1шт.

34

A50198

SHIM,.005" Thk

Housing

1шт.

35

131-1153

LOCK NUT,1/2"-13, GC

14шт.

B17428

LOCTITE

Gasket Eliminator No. 504, 50 ml tube

1шт.

B17504

GASKET

Eliminator No. 504, 300 ml cartridge

1шт.
