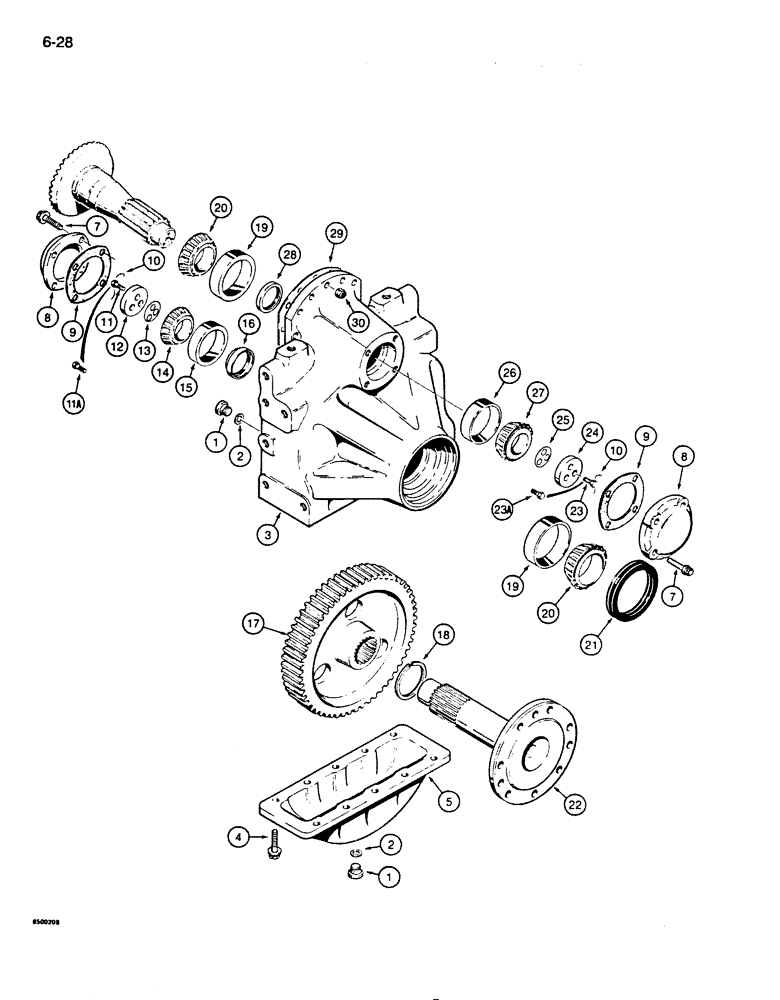

Запчасти Case 850D (6-28) - TRANSMISSION FINAL DRIVE, ALL MODELS EXCEPT 70" (1778 MM) GUAGE LGP DOZER MODELS (06) - POWER TRAIN

G107164

TRANSMISSION

all models except 70" (1778 mm) gauge LGP dozer models, Includes: Ref. 1 - 30

2шт.

1

A50014

PLUG

fill or drain, order 218-5210 plug below

2шт.

1

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Fill or drain, if used, includes 237-6008 O-ring, Ref 2. below, not shown

2шт.

2

G102141

SEALING WASHER

copper, for A50014 plugs, if used

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Shipped with 218-5210 plugs, if used, not shown

2шт.

3

G101600

HOUSING

final drive assembly

1шт.

4

166-87

BOLT,Flg, 1/2" - 13 x 1 1/2", Gr 8

Ferry head, 1/2" - 13 NC x 1-1/2"

10шт.

5

1348875C1

COVER

bottom, see item 6 for sealant to housing, was G101601

1шт.

6

REF

INSTRUCTION

SEALANT - Gasket Eliminator No. 504, pan to housing, not shown

1шт.

7

166-85

12 PT SCREW,Flg, 1/2" - 13 x 1", Gr 8

Ferry head, 1/2" - 13 NC x 1"

8шт.

8

G105822

COVER ASSY

shafts

2шт.

9

G101598

GASKET

cover

2шт.

10

391-825

ELECTRICAL WIRE

WIRE tie, bolt, No. 20 x 70 inch, if used

2шт.

11

R19888

SCREW

hex head, 9/16" - 18 NF x 1-1/4", use with tie wire, no longer used, order Ref. 11A

3шт.

11a

28-920

BOLT,Hex, 9/16" - 18 x 1-1/4", Gr 8

3шт.

12

G102107

PLATE

bearing retaining, final drive shaft

1шт.

13

R21741

SHIM,.005" Thk

Plate

1шт.

13

R21742

SHIM,.007" Thk

Plate

1шт.

13

R21743

SHIM,.020" Thk

Plate

1шт.

14

630203C91

TAPERED BEARING

final drive shaft, inner

1шт.

15

L35931

BEARING CUP

tapered roller bearing, inner

1шт.

16

G100325

SPACER

final drive shaft

1шт.

17

A50134

GEAR

final drive

1шт.

18

G104968

SNAP RING,#325, 3.070, Ext

gear

1шт.

19

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

tapered roller

2шт.

20

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

final drive, outer, bevel gear, inner

2шт.

21

1981095C1

SEAL

final drive shaft, was G101798

1шт.

22

G106477

SHAFT

final drive

1шт.

23

A31107

BOLT

hex, 1/2 NC x 1-1/4 inch, used with tie wire, no longer used, order item 23A

3шт.

23a

26-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

3шт.

24

G102108

PLATE

bearing retaining, bevel gear

1шт.

25

G100328

SHIM,.005" Thk

Plate

1шт.

25

G100329

SHIM,.007" Thk

Plate

1шт.

25

G100330

SHIM,.020" Thk

Plate

1шт.

26

895366C1

BEARING CUP

tapered roller, outer

1шт.

27

895102C91

BEARING

bevel gear, outer

1шт.

28

A32015

SEAL,82.55mm ID x 114.3mm OD x 11.91mm Thk

housing, bevel gear

1шт.

29

A50199

SHIM,.003" Thk

Housing

1шт.

29

A50198

SHIM,.005" Thk

Housing

1шт.

30

131-1153

LOCK NUT,1/2"-13, GC

14шт.

B17428

LOCTITE

Gasket Eliminator No. 504, 50 ml tube

1шт.

B17504

GASKET

Eliminator No. 504, 300 ml cartridge

1шт.
