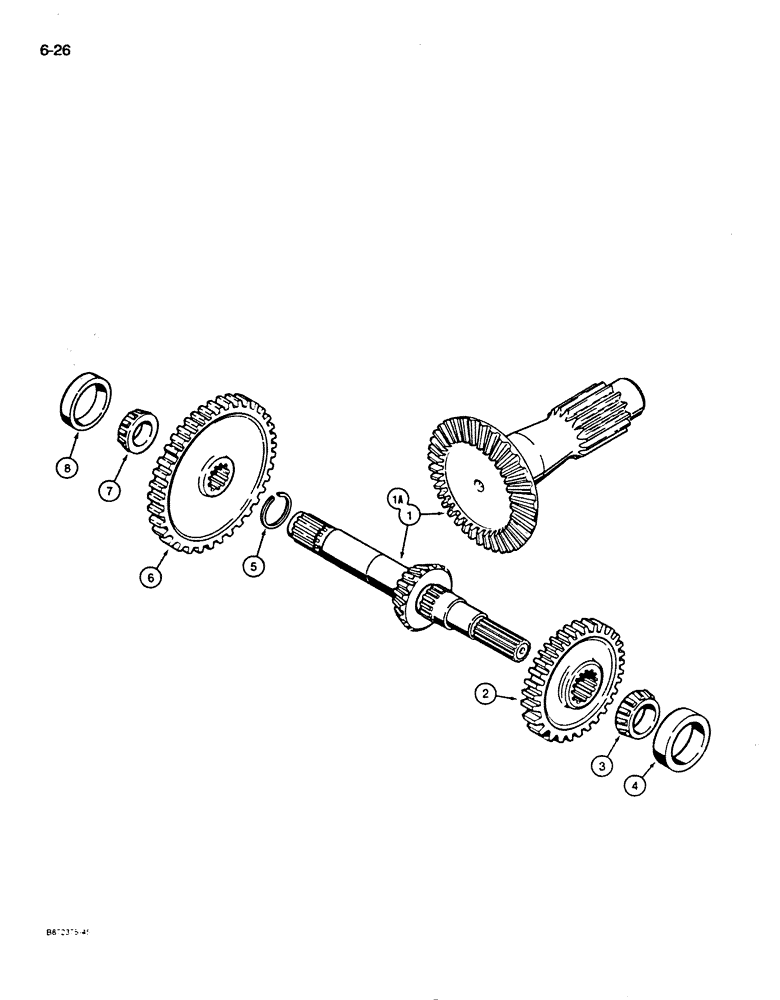

Запчасти Case 850D (6-26) - TRANSMISSION BEVEL PINION SHAFT AND GEAR (06) - POWER TRAIN

1

G107896

GEAR

& BEVEL PINION SHAFT - matched set, if used, NOT interchangeable with G110536 matched set (Ref. 1A), shaft is stamped with part number G107898 on low clutch driven gear (Ref. 6) end for identification

2шт.

1a

G110536

GEAR-SET

& BEVEL PINION SHAFT - matched set, if used, NOT interchangeable with G107896 matched set (Ref. 1), shaft is stamped with part number G110535 on low clutch driven gear (Ref. 6) end for identification

2шт.

2

G103777

GEAR

high clutch, 40 teeth, front

2шт.

3

A31264

ROLLER BEARING,1.625" ID x 1"

TAPERED ROLLER BEARING - high clutch gear, front

2шт.

4

ST973

TAPERED BEARING,1.688" ID x 3.126" OD x 0.9515"

tapered roller bearing, front

2шт.

5

A27085

RING

low clutch gear

2шт.

6

G103778

GEAR

low clutch, 51 teeth, rear

2шт.

7

A26719

ROLLER BEARING,38.1mm ID x 20.64mm W

low clutch gear, rear

2шт.

8

A50264

BEARING CUP,72mm OD x 14.2mm W

tapered roller, rear

2шт.
