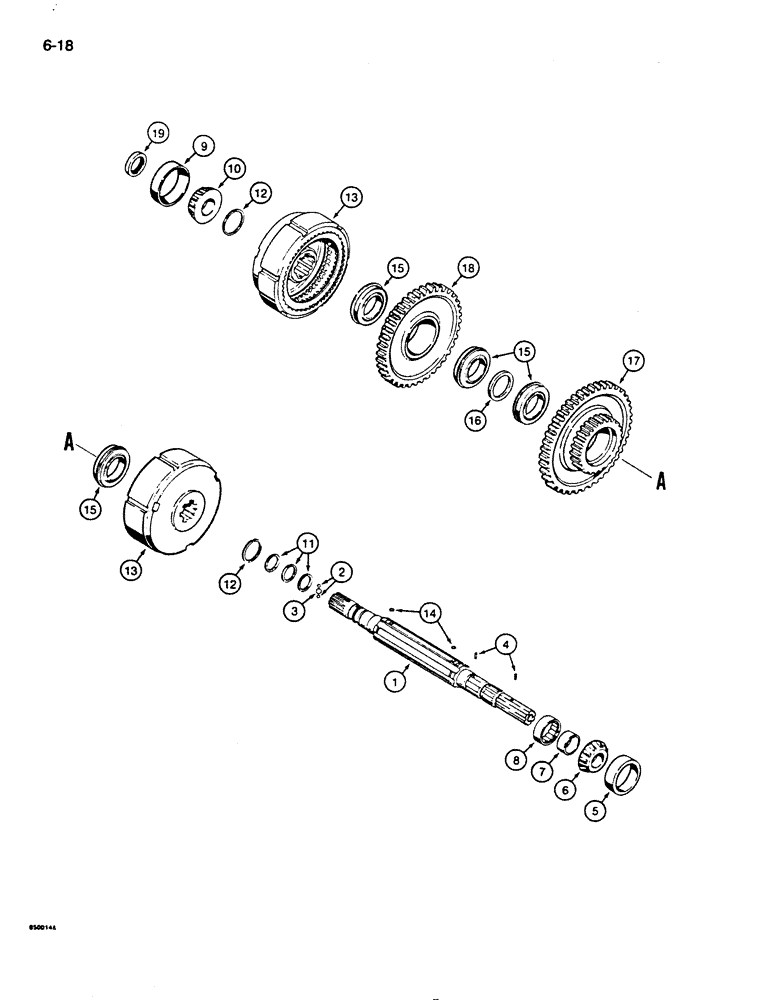

Запчасти Case 850D (6-18) - TRANSMISSION MAIN SHAFT AND FORWARD-REVERSE CLUTCHES (06) - POWER TRAIN

1

G109370

SHAFT

main, Includes: Ref. 2 & 3

1шт.

2

211-7

BALL,1/4" Dia

Grade 200 chrome alloy steel

2шт.

3

211-10

BALL

3/8 inch diameter, grade 200 chrome alloy steel

1шт.

4

138-68

LOCK PIN,5/32" x 7/16", Slotted

Through washer

2шт.

5

128242R1

BEARING CUP,76.225 mm OD x 23.863 mm

tapered roller, front

1шт.

6

G106461

ROLLER BEARING,33.34mm ID x 28.78mm W

main shaft, front

1шт.

7

G106696

BEARING,41.26mm ID x 50.77mm OD x 32mm W

inner, needle

1шт.

8

H748111

NEEDLE BEARING,Needle, 50.8mm ID x 65.17mm OD x 25.4mm W

main shaft, in front housing cover

1шт.

9

G109317

BEARING CUP

tapered roller bearing, rear

1шт.

10

G109318

CONE

main shaft, rear

1шт.

11

A51841

RING

main shaft, rear

3шт.

12

A50046

RING

clutch retaining

2шт.

13

G106701

CLUTCH ASSEMBLY

forward and reverse, see Figure 6-24

2шт.

14

G107169

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

clutch seal

4шт.

15

40027

BALL BEARING,49.99mm ID x 80mm OD x 16mm W

forward and reverse gears

4шт.

16

A50034

SPACER

forward and reverse gears

1шт.

17

G106770

GEAR

reverse

1шт.

18

G106771

GEAR

forward

1шт.

19

A54107

OIL SEAL,38.1mm ID x 8mm Thk

main shaft, rear

1шт.
