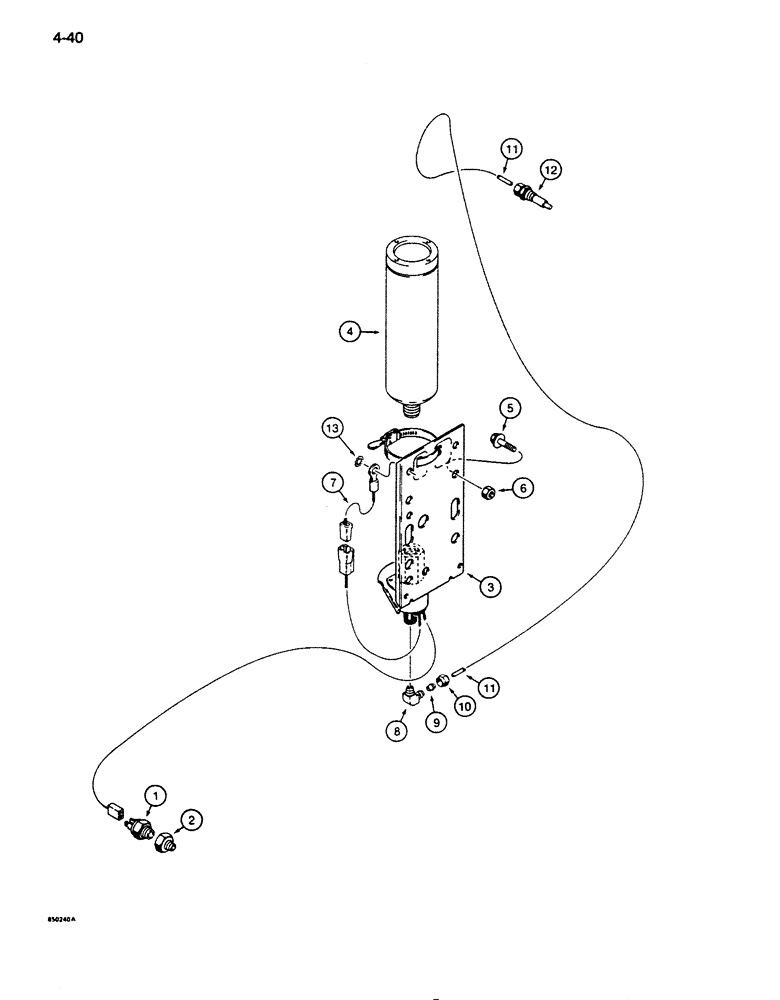

Запчасти Case 850D (4-40) - COLD START SYSTEM (04) - ELECTRICAL SYSTEMS

1

A172117

SWITCH

in engine cylinder head below intake manifold inlet tube

1шт.

2

217-45

REDUCER,3/4" - 14 NPTF x 1/2" - 18 Fem NPTF

1шт.

3

A172516

VALVE

starting fluid injection, with bracket, component parts not serviced separately, 3 cc injection volume, 24 volt

1шт.

4

A171940

CYLINDER

starting fluid

1шт.

5

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

2шт.

6

230-4216

LOCK NUT,3/8"-16, GA

2шт.

7

R51632

ELECTRICAL WIRE

WIRE ground, to valve mounting bracket

1шт.

8

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

Incl. Ref 9 & 10

1шт.

9

222-650

SLEEVE,1/8" Tube, Comp

1шт.

10

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube

1шт.

11

REF

INSTRUCTION

TUBE - nylon, 21" (533 mm) long, cut from L60539 bulk, see below

1шт.

12

A172900

NOZZLE CAP

cold start injection, component parts not serviced separately

1шт.

13

193-72

LOCK WASHER

internal-external tooth lock, 3/8", plated, wire ground

1шт.

L60539

TUBE,0.125" OD x 168" L

nylon, 14 ft (4267 mm) long

1шт.
