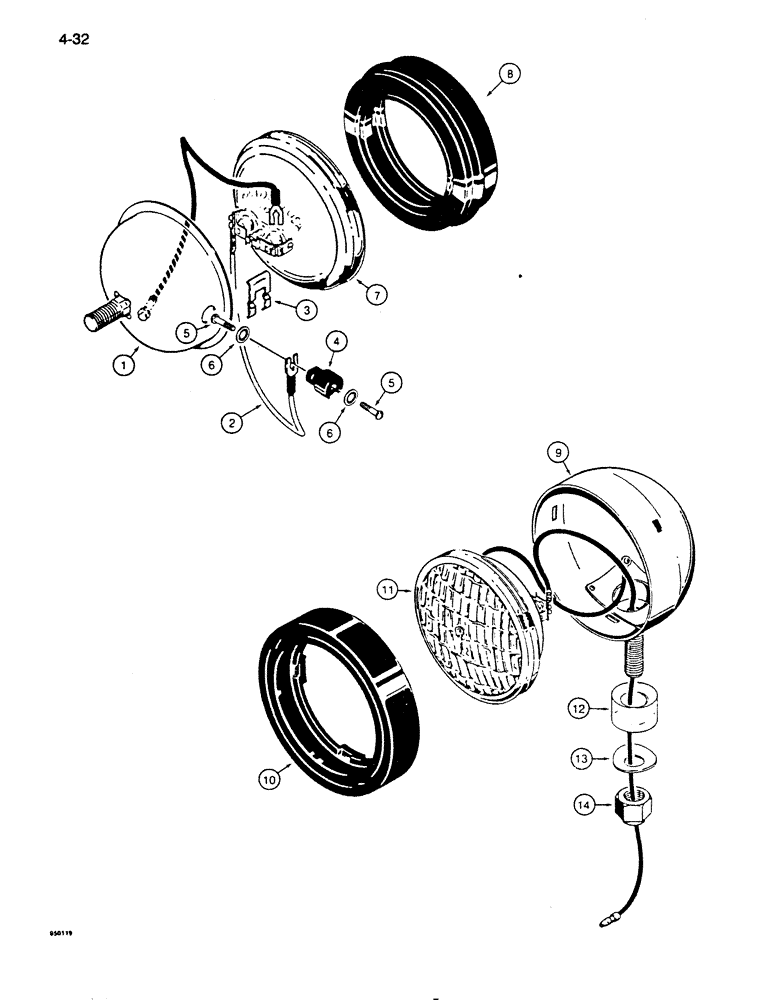

Запчасти Case 850D (4-32) - INCANDESCENT LAMP ASSEMBLIES, L45149 & R51415 HEAD LAMPS (04) - ELECTRICAL SYSTEMS

L45149

HEADLIGHT

24 volt, with mounting stud on rear of shell, used on models without ROPS only, Includes: Ref. 1 - 8

2шт.

1

NSS

NOT SOLD SEPARAT

SHELL - lamp, with internal wire, L45149 lamp assembly

1шт.

2

A40033

ELECTRICAL WIRE

WIRE bulb to insulator, L45149 lamp assembly

1шт.

3

10927

SPRING

SPARE PART retainer, insulator, L45149 lamp assembly

1шт.

4

B50293

TERMINAL CONNECTOR

bulb connection, L45149 lamp assembly

1шт.

5

182-82

SCREW,Slotted Pan Hd, #8-32 x 1/4"

L45149 lamp assembly

2шт.

6

193-91

LOCK WASHER,Int Tooth, #8

L45149 lamp assembly

2шт.

7

L10499

LAMP

sealed beam, 24 volt, No. 4589, L45149 lamp assembly

1шт.

8

D31441

RETAINER

bulb to shell, L45149 lamp assembly

1шт.

R51415

LAMP

24 volt, with mounting stud on side of shell, adjustable mounting, Includes: Ref. 9 - 14

2-4шт.

9

NSS

NOT SOLD SEPARAT

SHELL - with internal wire, R51415 lamp assembly

1шт.

10

A25213

RETAINER

bulb to shell, R51415 lamp assembly

1шт.

11

L10499

LAMP

sealed beam, 24 volt, No. 4589, R51415 lamp assembly

1шт.

12

D37048

BUSHING

pivot, R51415 lamp assembly

1шт.

13

D37049

WASHER

belleville, spring - special, R51415 lamp assembly

1шт.

14

131-28

LOCK NUT,1/2"-20, GB

R51415 lamp assembly

1шт.
