Запчасти Case 850D (4-30) - LAMPS AND WIRING, MODELS WITH ROPS CAB (04) - ELECTRICAL SYSTEMS

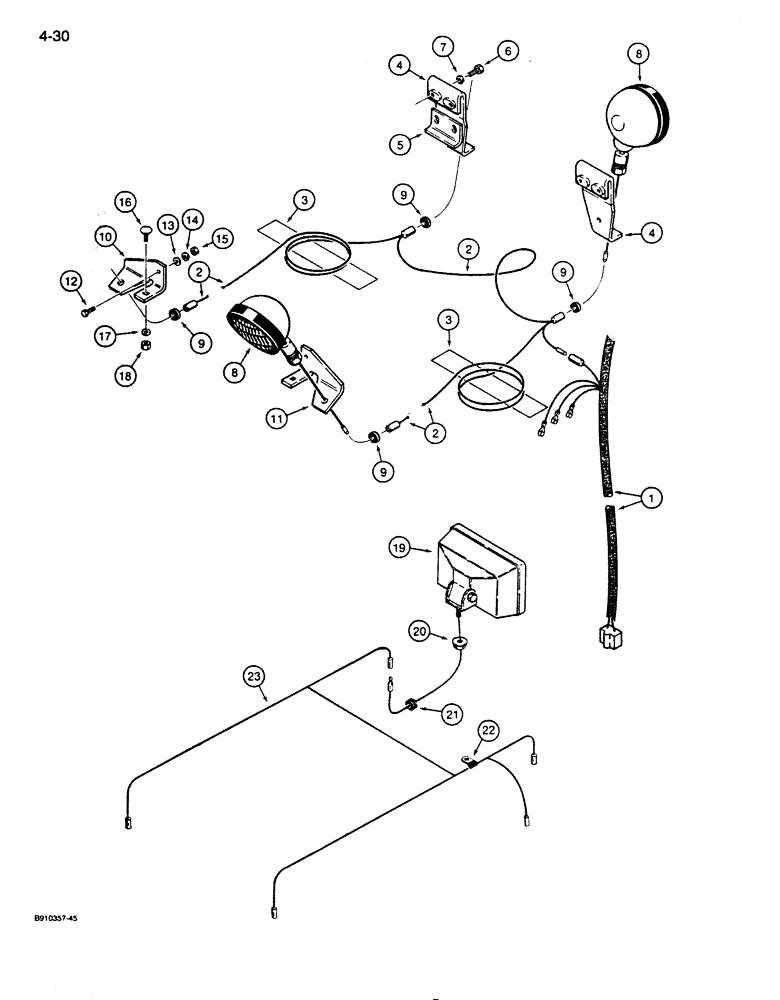

Схема запчастей Case 850D - (4-30) - LAMPS AND WIRING, MODELS WITH ROPS CAB (04) - ELECTRICAL SYSTEMS
3
22
7
10
9
4
2
12
19
8
14
21
16
15
8
3
9
5
2
23
2
18
9
20
6
9
13
17
4
11
1

Артикул

Название

Примечание

Количество

1

R51358

HARNESS

main wiring, cab, connects to lead harness Ref. 29 on Figure 4-18

1шт.

For additional main harness connections, see Figure 9-080.

1шт.

2

R47448

ELECTRICAL WIRE

WIRE incandesent lamps for ROPS cab

1шт.

3

NSS

NOT SOLD SEPARAT

TAPE - wire retaining, vinyl covered, obtain locally, incandescent lamps if used

1шт.

4

R47401

SUPPORT

front lamp mounting, incandescent if used

2шт.

5

R47405

SUPPORT

bracket retaining, front lamps, incandescent if used

2шт.

6

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Incandescent lamps, if used

4шт.

7

192-21

LOCK WASHER,3/8"

Incandescent lamps, if used

4шт.

8

R51415

LAMP

flood, incandesent, parts list Figure 4-32, if used

4шт.

9

353-700

BUSHING

lamp wire, 3/8" hole size, incandescent if used

4шт.

10

R47403

BRACKET

rear lamp mounting, left-hand, incandescent if used

1шт.

11

R47404

BRACKET

rear lamp mounting, right-hand, incandescent if used

1шт.

12

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Incandescent lamps, if used

2шт.

13

195-103

WASHER,5/16"

Incandescent lamps if used

2шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

Incandescent lamps, if used

2шт.

15

9635082

NUT,5/16" - 18, Gr 5

Incandescent lamps if used

2шт.

16

111-110

SCREW,Short NK, 1/4"-20 x 7/8", G2

Incandescent lamps if used

2шт.

17

195-102

WASHER,1/4"

flat, plated, incandescent lamps if used

2шт.

18

86625061

NUT,1/4"-20, GB

Incandescent lamps, if used

2шт.

19

F96876

LAMP

flood, halogen, parts list Figure 4-34, if used

4шт.

20

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

Special locking, Halogen lamps if used

4шт.

21

353-700

BUSHING

3/8 inch (9 mm) diameter, halogen lamps if used

4шт.

22

R54360

CLAMP,J, 5/16" Insul, 5/16" Bolt

wire, halogen lamps if used

9шт.

23

1338179C1

HARNESS

halogen lamps for ROPS cab, if used

1шт.

Выбрано товаров: 24
