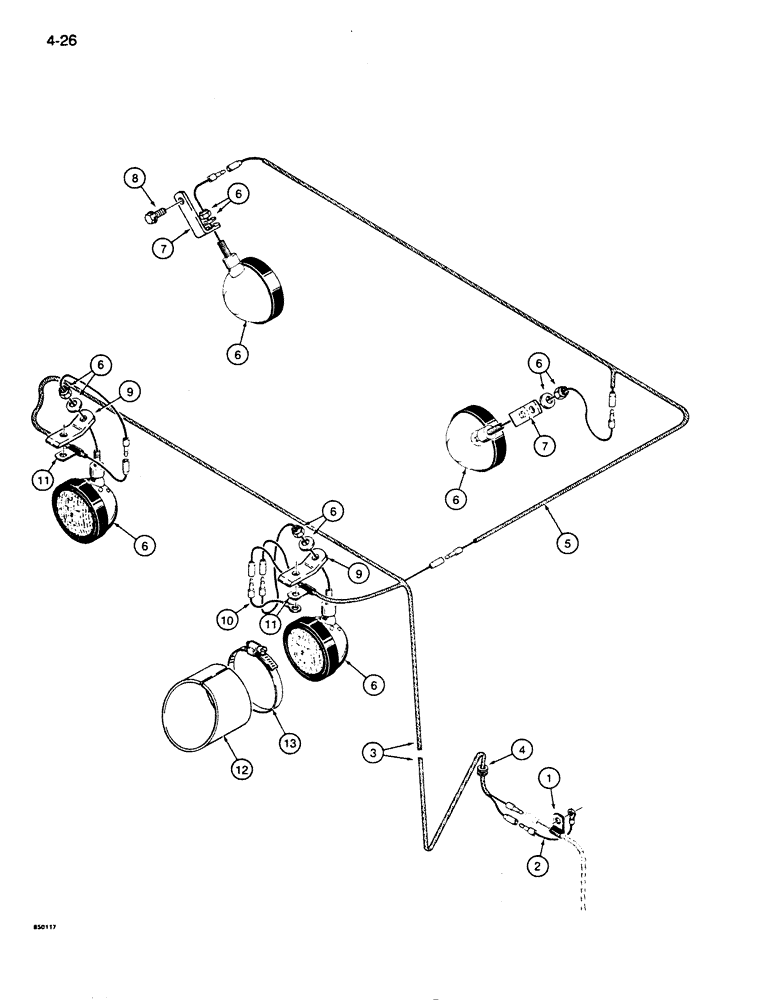

Запчасти Case 850D (4-26) - LAMPS AND WIRING, MODELS WITH ROPS CANOPY, INCANDESCENT (04) - ELECTRICAL SYSTEMS

1

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

rear wiring harness, use control valve linkage bracket hardware

1шт.

2

R47807

ELECTRICAL WIRE

WIRE ground, rear lamp harness

1шт.

3

R48404

HARNESS

rear lamps

1шт.

4

D37936

GROMMET

rear lamp harness through hydraulic reservoir cover

1шт.

5

R48403

HARNESS

SPARE PART head lamps

1шт.

6

R51415

LAMP

front and rear, parts list Figure 4-32

4шт.

7

R30019

BRACKET

headlamp mounting

2шт.

8

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

2шт.

9

R51325

SUPPORT

rear lamp mounting

2шт.

10

R51324

ELECTRICAL WIRE

WIRE ground, right-hand rear lamp

1шт.

11

49832

CLAMP

wire retaining, use ROPS canopy screen mounting hardware

2шт.

12

R51323

GUARD

rear lamp

2шт.

13

214-272

HOSE CLAMP,#84, 4.88" - 5.75", Type F Worm

adjustable, rear lamp cover retaining

2шт.
