Запчасти Case 850D (4-24) - LAMPS AND WIRING, MODELS WITHOUT ROPS CANOPY OR CAB (04) - ELECTRICAL SYSTEMS

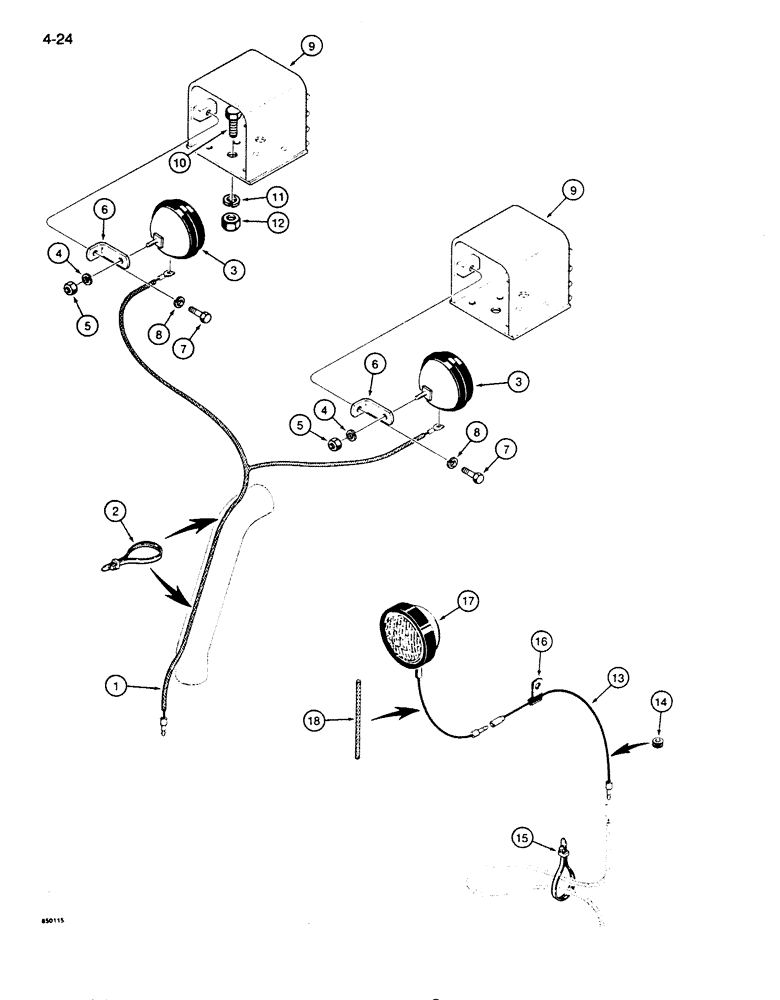

Схема запчастей Case 850D - (4-24) - LAMPS AND WIRING, MODELS WITHOUT ROPS CANOPY OR CAB (04) - ELECTRICAL SYSTEMS
6
9
15
8
9
5
14
13
12
5
11
10
3
1
3
17
2
7
7
8
18
4
6
4
16

Артикул

Название

Примечание

Количество

1

R51836

ELECTRICAL WIRE

WIRE main wiring harness to head lamps

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

2шт.

3

L45149

HEADLIGHT

parts list Figure 4-32

2шт.

4

92-8

LOCK WASHER,1/2"

2шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

6

R27714

BRACKET

head lamp mounting

2шт.

7

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

8

92-8

LOCK WASHER,1/2"

2шт.

9

NLS

NO LONGER SERVICED

head lamp

2шт.

10

113-713

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

4шт.

11

192-27

LOCK WASHER,3/4"

4шт.

12

129-108

NUT,3/4"-10, G5

4шт.

13

R51427

ELECTRICAL WIRE

WIRE to rear lamp wire

1шт.

14

A23870

GROMMET

wire at battery cover plate

1шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.

16

51200330

CLAMP

rear lamp wire to hydraulic reservoir

1шт.

17

R51415

LAMP

rear, parts list Figure 4-32

1шт.

18

D34933

LOOM

rear lamp wire

1шт.

Выбрано товаров: 18
