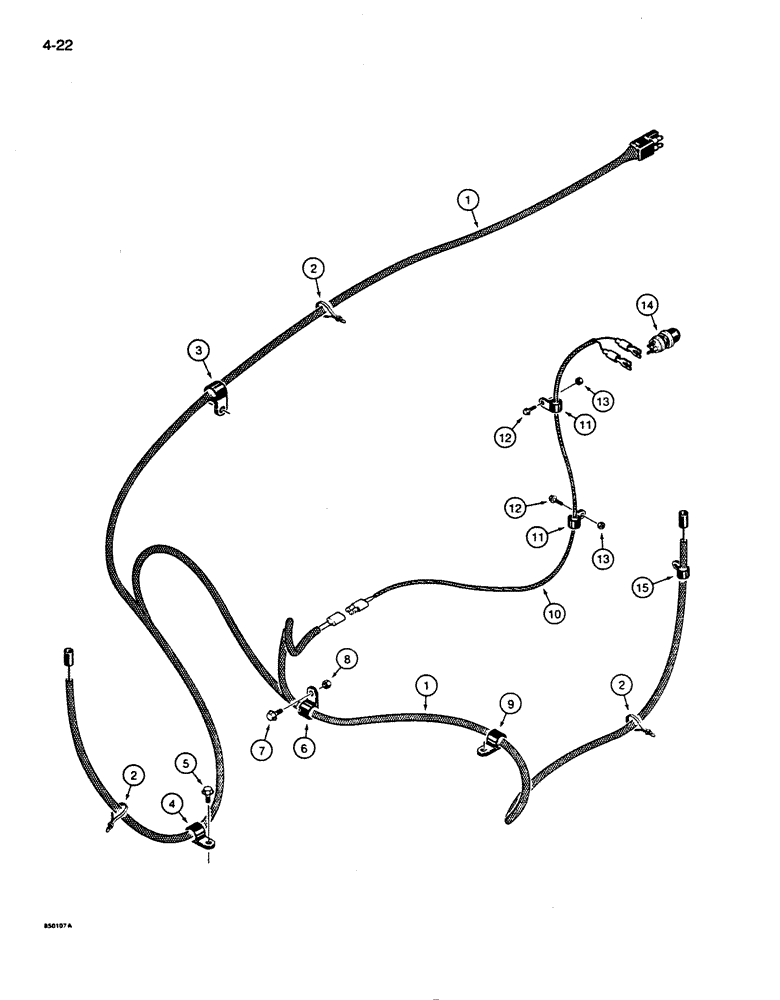

Запчасти Case 850D (4-22) - REAR WIRING HARNESS AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

R48517

HARNESS

rear wiring

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.

3

49838

CLAMP

harness, under left-hand floor plate, uses brake line mounting hardware

1шт.

4

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

harness routing to backup alarm

1шт.

5

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

1шт.

6

49838

CLAMP

rear harness to engine frame under operators seat, used on loader models only

1шт.

7

121-234

BOLT,Hex Flg, 3/8"-16 x 1", G8, Full Thd

1шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

1шт.

9

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

harness to equipment hydraulic line bracket under operators seat, uses bracket mounting hardware

1шт.

10

D39130

ELECTRICAL WIRE

WIRE starter switch

1шт.

11

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

starter switch wire

2шт.

12

121-135

FLANGE BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

13

9635082

NUT,5/16" - 18, Gr 5

2шт.

14

S241920

SWITCH

neutral start, push button

1шт.

15

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

rear harness routing to ROPS lamp harness, uses control valve linkage bracket hardware

1шт.
