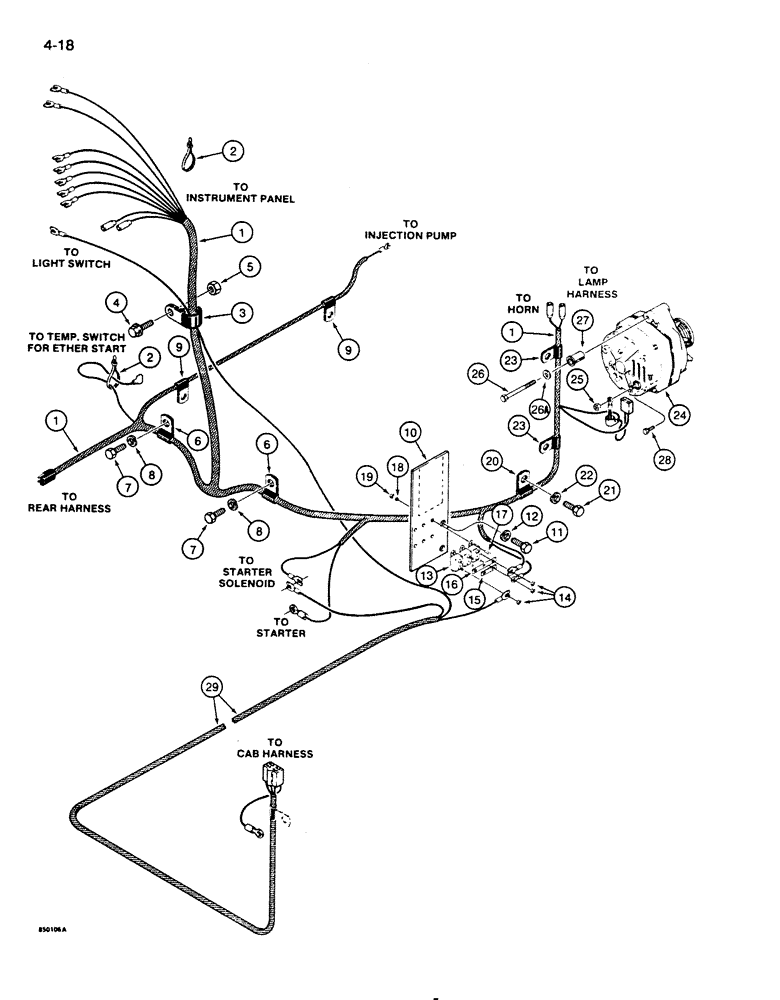

Запчасти Case 850D (4-18) - FRONT WIRING HARNESS, AND DELCO-REMY ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

R52489

HARNESS

front wiring, Dozer, Serial Range: -JAK0002748

1шт.

1

R52489

HARNESS

front wiring, Loader, Serial Range: -JAK0005948

1шт.

1

R57557

HARNESS

front wiring, Dozer, Start Serial: JAK0002748

1шт.

1

R57557

HARNESS

front wiring, Loader, Start Serial: JAK0005948

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

2шт.

3

D41564

harness, on firewall

1шт.

4

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

Used with item 5 nut, if used

1шт.

4a

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

Used on models with nut welded to firewall, if used

1шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

If Used

1шт.

6

49836

CLAMP

front harness at flywheel housing

2шт.

7

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

8

892-1112

LOCK WASHER,M12

2шт.

9

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

front harness to left-hand side of engine block

2шт.

10

R51631

LARGE PLATE

PLATE, LARGE mounting (right-hand side of engine), circuit breakers and jump start decal, for decal see Figure 9-108

1шт.

11

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

12

892-1112

LOCK WASHER,M12

2шт.

13

R45475

BREAKER

40 amperes; 2 used without cab, 3 used with cab

2-3шт.

14

129-37

NUT,#10-32

4-6шт.

15

R45468

PLATE ASSY.

circuit breaker mounting, with 2 slots, lower

1шт.

16

R45467

PLATE ASSY.

circuit breaker mounting, with 3 slots, upper

1шт.

17

182-510

SCREW,Sl Pan Hd, #8 - 32 x 1/2"

Phillips head, No. 8 - 32 NC x 5/8", plated

4-6шт.

18

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

4-6шт.

19

129-16

NUT,#8-32

4-6шт.

20

49836

CLAMP

front harness, at circuit breaker plate

1шт.

21

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

22

892-1112

LOCK WASHER,M12

1шт.

23

D31148

CLAMP

front harness, use engine block hardware

2шт.

24

REF

INSTRUCTION

ALTERNATOR - for correct assembly and components, see Figure 4-04

1шт.

25

825-1106

NUT,Hex, M6, Cl 8

Alternator output terminal

1шт.

26

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

1шт.

26a

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

27

J902469

SPACER

alternator mounting, upper

1шт.

28

855-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 10.9

1шт.

29

R51357

HARNESS

cab models only, circuit breaker to main cab wiring harness, see Figures 4-30 and 9-80

1шт.
