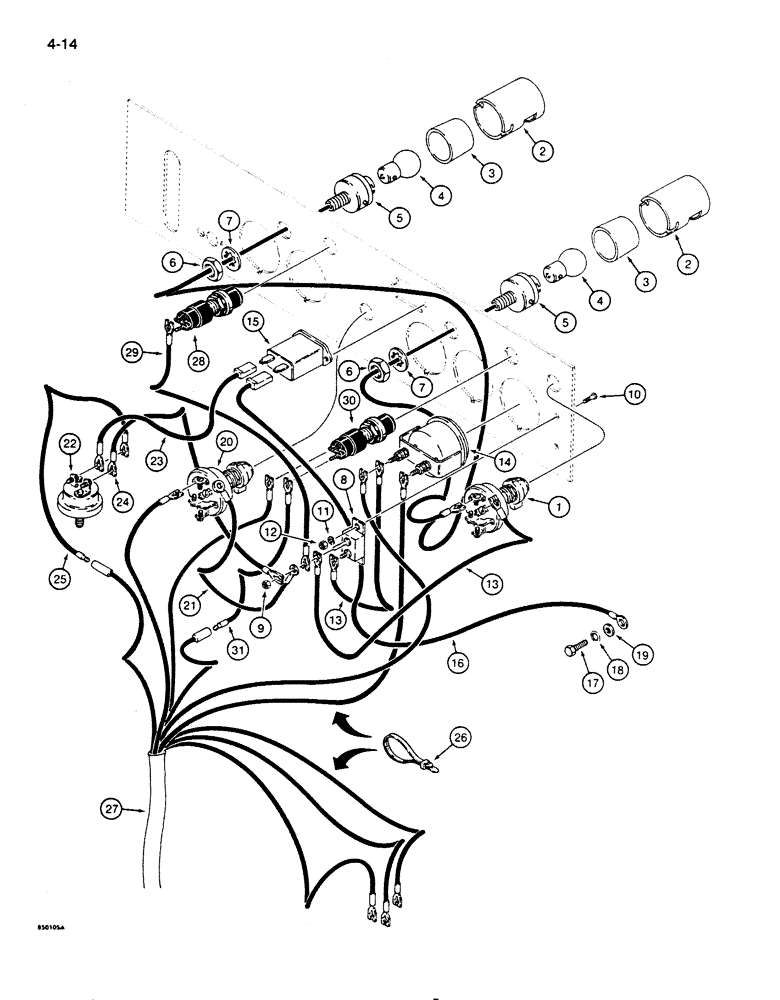

Запчасти Case 850D (4-14) - INSTRUMENT PANEL WIRING AND SWITCHES (04) - ELECTRICAL SYSTEMS

1

R54064

IGNITION SWITCH

lamp, instrument panel, was R27539

1шт.

D35815

LAMP

instrument panel, Includes: Ref. 2 - 6

2шт.

2

D37918

COVER

lamp

1шт.

3

D37919

LENS

lamp

1шт.

4

R19897

BULB

No. 623

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - includes wire

1шт.

6

D39095

NUT

special

1шт.

7

93-21065

LOCK WASHER,Int Tooth, 5/8"

Lamp ground

2шт.

8

L104328

BREAKER

25 amperes, on instrument panel, Includes: Ref. 9

1шт.

9

131-47

LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B

2шт.

10

182-508

SCREW,Cross Pan Hd, #8 - 32 x 3/8"

pan head, No. 8 - 32 NC x 3/8", plated

2шт.

11

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

2шт.

12

129-16

NUT,#8-32

2шт.

13

51200220

ELECTRICAL WIRE

WIRE jumper, from circuit breaker to ammeter and lamp switch

2шт.

14

R38643

ELECTRICAL GAUGE

electrical

1шт.

15

L107631

METER

HOUR - engine

1шт.

16

R47428

ELECTRICAL WIRE

WIRE hourmeter ground, to instrument panel and main frame, with eyelet terminal

1шт.

17

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

18

193-60

LOCK WASHER,Int Tooth, 1/4"

1шт.

19

195-518

WASHER,1/4", SAE

1шт.

20

R27539

SWITCH

fuel shutoff

1шт.

21

R49740

ELECTRICAL WIRE

WIRE fuel shutoff switch to circuit breaker

1шт.

22

D28798

SWITCH

engine oil, includes wire, wire not used

1шт.

23

R27252

HARNESS

hourmeter to pressure switch

1шт.

24

R33638

ELECTRICAL WIRE

WIRE pressure switch to circuit breaker

1шт.

25

R37114

ELECTRICAL WIRE

WIRE with diode, pressure switch to main wiring harness

1шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

2шт.

27

R52489

HARNESS

main wiring

1шт.

28

S241920

SWITCH

push button, horn, if used

1шт.

29

F21342

ELECTRICAL WIRE

WIRE horn switch to circuit breaker

1шт.

30

S241920

SWITCH

push button, cold start, if used

1шт.

31

R51894

ELECTRICAL WIRE

WIRE cold start switch to circuit breaker

1шт.
