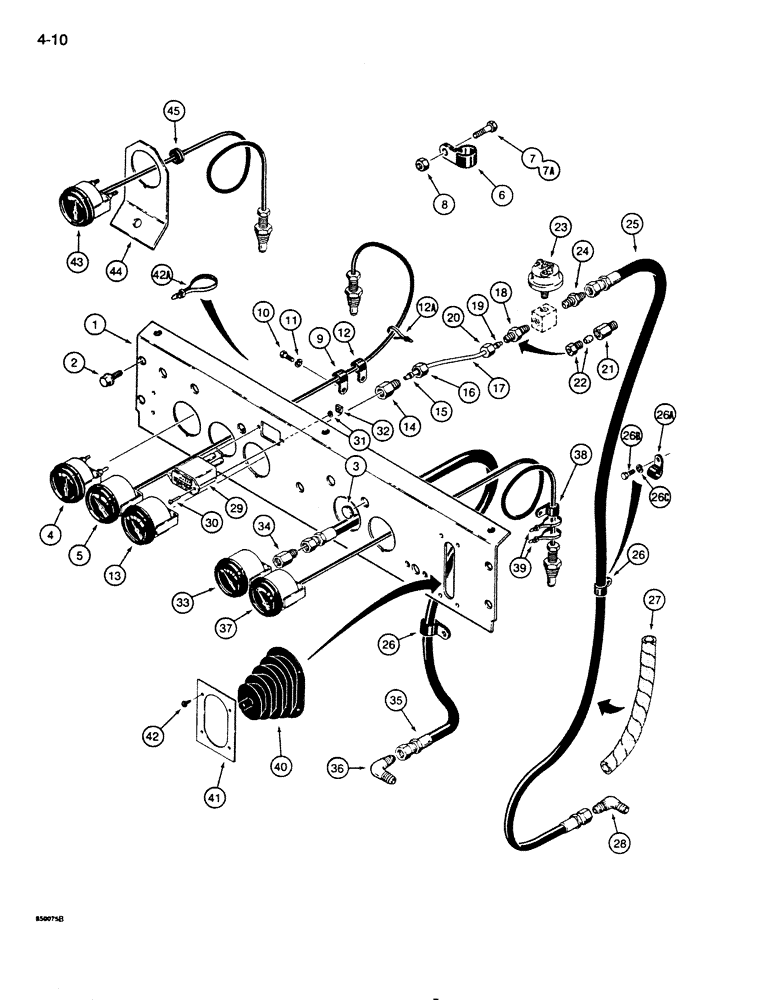

Запчасти Case 850D (4-10) - INSTRUMENT PANEL AND GAUGES (04) - ELECTRICAL SYSTEMS

1

R51478

PANEL, INSTRUMENTS

PANEL, INSTRUMENT Includes: decal on Figure 9-108, Ref 32

1шт.

2

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

4шт.

3

353-407

PLUG,Dome, .687" hole, Nylon

nylon, 11/16" (18 mm) diameter, if used

2шт.

4

R38643

ELECTRICAL GAUGE

electrical

1шт.

5

R52133

GAUGE

- engine temperature, was R42267

1шт.

6

84183C1

CLAMP

- on back of firewall, holds most harnesses and cables coming from the instrument panel

1шт.

7

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

Used with Ref. 8 nut, if used

1шт.

7a

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

Used on models with nut welded to firewall, if used

1шт.

8

129-105

NUT,Hex, 1/2" - 13, Gr 5

If Used

1шт.

9

49836

CLAMP

engine temperature cable above flywheel housing

1шт.

10

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

11

892-1112

LOCK WASHER,M12

1шт.

12

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

engine temperature cable, left-hand side of engine, no longer used, not required

1шт.

12a

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.

13

R49132

GAUGE ASSY.

engine oil pressure

1шт.

D35091

PIPE FITTING

straight, engine oil pressure gauge, Includes: Ref. 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

15

D37176

SLEEVE

compression

1шт.

16

D37362

TUBE NUT

adapter

1шт.

17

REF

INSTRUCTION

TUBE - nylon, 15" (381 mm) long, engine oil pressure, replaces a 10" (254 mm) long tube used in production on some models, cut from A138483, see below

1шт.

D35816

CONNECTOR, ELEC

CONNECTOR straight, production part, for service order 222-400 adapter, see Ref. 21 & 22, Includes: Ref. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

19

D37176

SLEEVE

compression

1шт.

20

D37362

TUBE NUT

adapter

1шт.

222-400

HYD CONNECTOR,1/8" NPT x 5/16"-24

straight, service replacement for D35816 adapter, see Ref. 18 - 20, Includes: Ref. 21 & 22

1шт.

21

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

22

222-500

TUBE NUT,5/16" - 24 NPT

AND SLEEVE - adapter

1шт.

A138483

TUBE

nylon, 99" (2515 mm) long

1шт.

23

D28798

SWITCH

engine oil pressure, see Figure 4-14 for electrical connections

1шт.

24

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

straight, male

1шт.

25

D95117

HOSE

engine oil pressure, 57" (1448 mm) long

1шт.

26

49838

CLAMP

holds engine oil pressure and transmission oil pressure hoses, uses torque converter mounting hardware, if used

2шт.

26a

49836

CLAMP

engine oil pressure hose, double clamp with main wiring harness and engine temperature cable at flywheel housing, if used

1шт.

26b

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

Used with Ref. 26A clamp only, if used

1шт.

26c

892-1112

LOCK WASHER,M12

Used with Ref. 26A clamp only, if used

1шт.

27

R12586

TAPE

SLEEVE - hose guard

1шт.

28

218-1066

ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/8"-27, NPTF, LG

90 degree, long, 1/8" NPT, engine oil pressure, left-hand side of engine block

1шт.

29

L107631

METER

HOUR- engine

1шт.

30

169-169

SCREW,Sl Fil Hd, #5 - 40 x 1/2"

2шт.

31

192-14

LOCK WASHER,Helical Spring, #5, 0.13" ID, CST, ZND

2шт.

32

129-44

SQUARE NUT,Sq, #5-40

2шт.

33

R53929

GAUGE

transmission oil pressure

1шт.

34

218-461

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Female NPTF

straight

1шт.

35

R56604

HOSE ASSY.

transmission oil pressure, 50" (1270 mm) long

1шт.

36

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

90 degree, male, transmission oil pressure

1шт.

37

R54145

GAUGE

torque converter temperature

1шт.

38

51200330

CLAMP

converter temperature cable, uses converter mounting hardware

1шт.

39

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

2шт.

40

R47898

BELLOWS

rubber, throttle control lever, if used

1шт.

41

R47895

ANCHOR

boot, if used

1шт.

42

187-579

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

4шт.

42a

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.

43

R38934

ELECTRICAL GAUGE

hydraulic oil temperature, connects into reservoir, used on backhoe models only

1шт.

44

R38711

PANEL

gauge, uses reservoir top cover mounting hardware, used on backhoe models only

1шт.

45

L13766

GROMMET

split, gauge cable, used on backhoe models only

1шт.
