Запчасти Case 850D (4-06) - ALTERNATOR - A186124 (04) - ELECTRICAL SYSTEMS

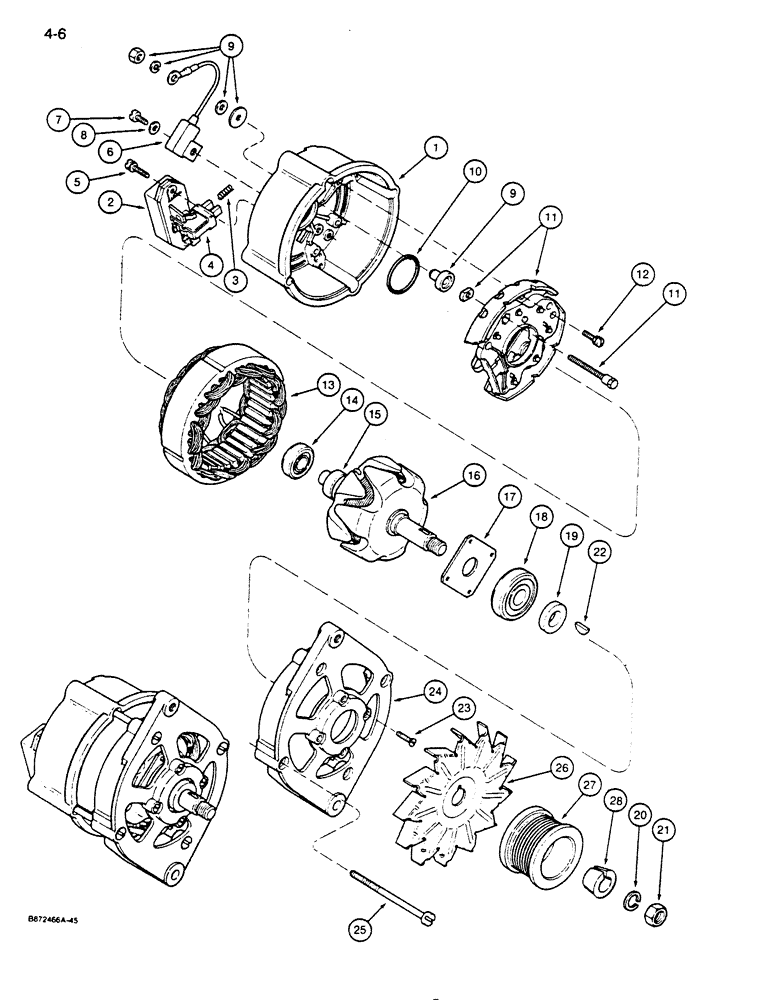

Схема запчастей Case 850D - (4-06) - ALTERNATOR - A186124 (04) - ELECTRICAL SYSTEMS
6
21
27
7
15
26
24
9
4
5
20
14
12
3
2
25
23
9
10
13
11
19
8
22
17
11
18
1
16
28

Артикул

Название

Примечание

Количество

A186124

ALTERNATOR

for 24 volt system, Bosch No. 0 120 489 481, type K1-28V 3/45A, no longer available, order A187916 alternator (Figure 4-08), A187990 terminal, 825-1405 and 825-1408 nuts, 892-11005 and 892-11008 washers, Ref. 13 - 18 on Figure 4-20

1шт.

AR186124

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

AC186124

CORE-ALTERNATOR

Return Number

1шт.

104260A1R

REMAN-ALTERNATOR

Remanufactured 24 VOLT, 40 AMP Alternator

1шт.

104260A1C

CORE-ALTERNATOR

Return Number, 24 VOLT, 40 AMP Alternator

1шт.

1

A187509

HOUSING

collector ring end

1шт.

2

A187505

REGULATOR

voltage, Includes: Ref. 3 & 4

1шт.

3

NSS

NOT SOLD SEPARAT

SPRING - compression

2шт.

4

NSS

NOT SOLD SEPARAT

BRUSH ASSEMBLY - alternator

1шт.

5

A186194

SCREW,M4 x 18mm

Voltage regulator retaining

2шт.

6

A186195

CAPACITOR

alternator

1шт.

7

625589C1

SCREW,Slot Cheese Hd, M5 x .8 x 10, 8.8

Fillister head, capacitor retaining

1шт.

8

A186196

WASHER

flat, capacitor screw

1шт.

9

3079135R1

TERMINAL CONNECTOR

terminal

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - ball bearing seal, housing, order 3079386R1

1шт.

11

A187507

RECTIFIER

alternator, includes hardware

1шт.

12

A187504

SCREW

with washer, rectifier bridge, retaining

3шт.

13

A187506

STATOR

alternator

1шт.

14

A186186

BALL BEARING,12mm ID x 32mm OD x 10mm W

rotor, collector ring end

1шт.

15

A187503

RING

collector

1шт.

16

A187502

ROTOR ASSY.

alternator

1шт.

17

3078379R1

COVER

bearing retaining, drive end cover

1шт.

18

A186183

BALL BEARING,17 mm ID x 47 mm OD x 14 mm

rotor, drive end

1шт.

3078897R1

SET OF PARTS

rotor retaining, Includes: Ref. 19 - 22 not used in A186124 alternator

1шт.

19

NSS

NOT SOLD SEPARAT

RING - spacer

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER - lock, rotor shaft

1шт.

21

NSS

NOT SOLD SEPARAT

NUT - rotor shaft

1шт.

22

NSS

NOT SOLD SEPARAT

KEY - pulley retainer, not used on A186124 alternator

1шт.

23

NSS

NOT SOLD SEPARAT

SCREW - bearing retaining plate

4шт.

24

A187501

COVER

drive end

1шт.

25

A186193

BOLT,Pan, Cross Recess Phillips, M5 x 110mm

cover retaining

4шт.

26

221425R1

FAN

alternator

1шт.

27

J903586

GROOVED PULLEY

drive, no longer available, replace with J908560 pulley and J908563 retainer as a matched set

1шт.

28

J903333

RETAINER

pulley, no longer available, replace with J908560 pulley and J908563 retainer as a matched set

1шт.
