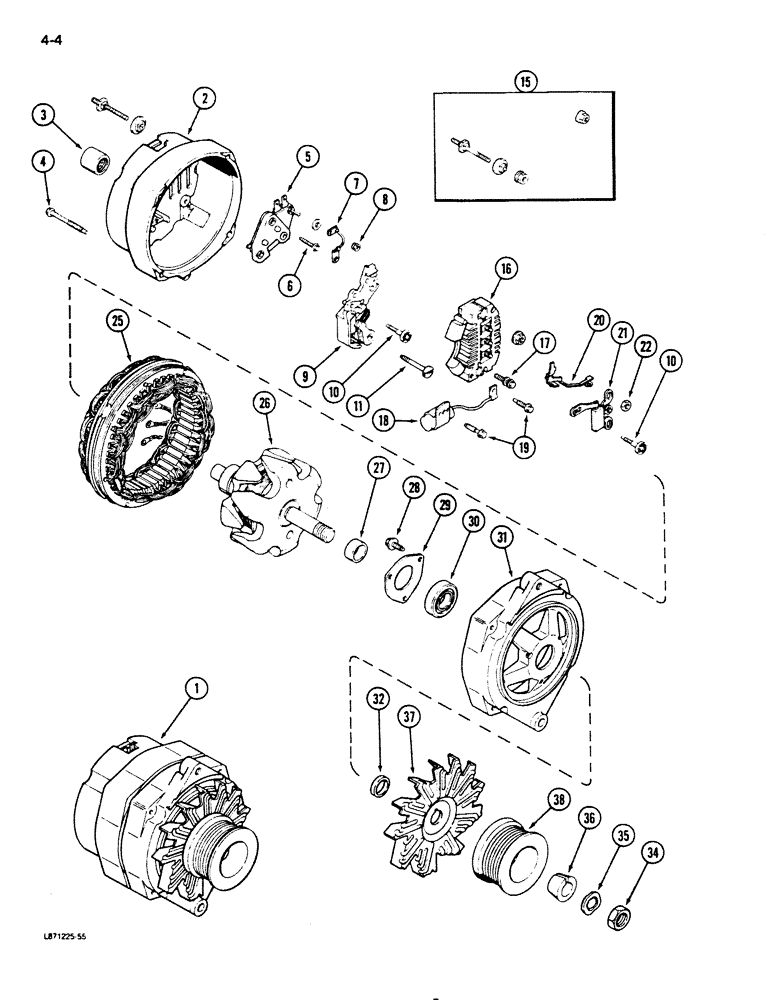

Запчасти Case 850D (4-04) - ALTERNATOR, IF EQUIPPED (04) - ELECTRICAL SYSTEMS

1

L112091

ALTERNATOR

engine (Delco-Remy No.1105537) JI Case installed (Order A167152 Alternator and Ref 36, 37 & 38)

1шт.

1

A167152

ALTERNATOR

engine (Delco-Remy No.1105510) (Service Only)

1шт.

1

104260A1R

REMAN-ALTERNATOR

REMANUFACTURED 24 VOLT, 40 AMP ALTERNATOR

1шт.

1

104260A1C

CORE-ALTERNATOR

Return Number, 24 VOLT, 40 AMP ALTERNATOR

1шт.

1

A187873

ALTERNATOR,12V, 65A

Alternator, 14V, 65 Amp

1шт.

1

AR187873

REMAN-ALTERNATOR

Reman for New PN A187873

1шт.

1

AC187873

CORE-ALTERNATOR

Return Number

1шт.

1

A187873GV

ALTERNATOR

Value, 14V, 65A

1шт.

2

A47595

FRAME

slip ring end, Includes: Ref. 3

1шт.

3

A47578

ROLLER BEARING,0.6694" ID x 0.937" OD x 0.73"

frame

1шт.

4

463-11028

SCREW,Hex Hd, #10-24 x 1 3/4"

4шт.

5

A46890

REGULATOR

voltage

1шт.

6

A47043

SCREW,#8 - 32 x 21"

brush holder grounded

1шт.

7

A45369

ELECTRICAL WIRE

WIRE, Serial Range: stud-bridge

1шт.

8

A45368

NUT

terminal

1шт.

9

A47042

HOLDER

brush, Includes: brush

1шт.

A47987

BRUSH, COMMUTATOR

BRUSH alternator

2шт.

10

A45223

SCREW,Spcl, #8 - 32 x 1 1/8"

retaining

1шт.

11

A47581

SCREW,#8 - 32 x 1.43"

brush holder, retaining

1шт.

15

A47597

TERMINAL CONNECTOR

battery

1шт.

16

A46942

ELEC CONNECTOR

RECTIFIER BRIDGE - alternator

1шт.

17

A45221

SCREW,Hex Wshr Hd, #8 - 32 x 0.99"

bridge retaining

1шт.

18

A47734

CAPACITOR

alternator

1шт.

19

A45228

SELF-TAP SCREW,Hex Wash Hd, #8-32 x .59", Spc

capacitor bracket

2шт.

20

A46931

TERMINAL CONNECTOR

relay

1шт.

21

A48339

DIODE

trio

1шт.

22

225-14108

NUT,#8-32

hex, No. 8 NC

3шт.

25

A49388

STATOR

alternator

1шт.

26

A46945

ROTOR

alternator

1шт.

27

A48261

COLLAR

rotor shaft, inner

1шт.

28

A46941

SCREW,Hex Washer, #10 - 24 x 0.52"

bearing plate retaining

3шт.

29

R15101

PLATE

bearing retainer

1шт.

30

A49389

BEARING ASSY

ball, drive end

1шт.

31

A49174

CAP

drive end

1шт.

32

A49733

COLLAR

rotor shaft, outer

1шт.

34

A25546

NUT

pulley and fan retaining

1шт.

35

R16171

SPRING WASHER

lock, pulley nut

1шт.

37

A49735

COLLAR CLAMP

pulley, tapered

1шт.

37

A43384

FAN

alternator ventilating

1шт.

38

A49734

PULLEY

drive

1шт.
