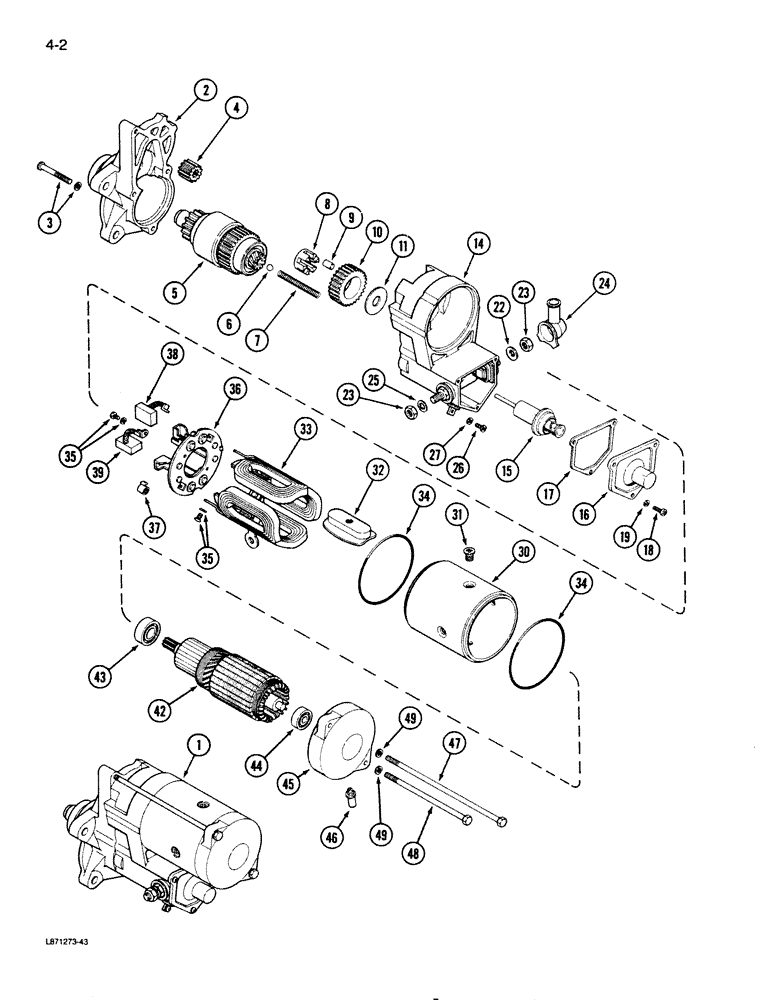

Запчасти Case 850D (4-02) - STARTER (04) - ELECTRICAL SYSTEMS

1

D129494

STARTING MOTOR

engine (Nippondenso No. 128000-2560), Includes: Ref. 2 - 49

1шт.

1

1987566C1GV

STARTER MOTOR,24V, 5.5kW

Value

1шт.

1

1987566C1R

REMAN-STARTER,24V, 5.5kW

Reman For New PN D129494

1шт.

1

1987566C1C

CORE-STARTER,24V, 5.5kW

Return Number

1шт.

2

A49797

HOUSING

starter

1шт.

3

A47129

CAPTIVE WASHER SCREW

AND WASHER - housing retaining

3шт.

4

A49809

PINION

1шт.

5

A49802

CLUTCH

starter

1шт.

6

211-209

BALL

3/8 inch diameter

1шт.

7

A47232

SPRING

compression

1шт.

8

A47236

RETAINER

roller bearing

1шт.

9

A47235

ROLLER BEARING

pinion bearing

5шт.

10

A49810

GEAR

pinion idler

1шт.

11

A47234

WASHER

thrust

1шт.

14

A49799

SWITCH

magnetic, Includes: Ref. 15 - 19

1шт.

15

NSS

NOT SOLD SEPARAT

SOLENOID - starter

1шт.

16

NSS

NOT SOLD SEPARAT

COVER - solenoid

1шт.

17

NSS

NOT SOLD SEPARAT

GASKET - solenoid cover

1шт.

18

NSS

NOT SOLD SEPARAT

BOLT - cover retaining

3шт.

19

NSS

NOT SOLD SEPARAT

WASHER - retaining

3шт.

22

A10454

WAVE WASHER

terminal

1шт.

23

825-1110

NUT,M10, Cl 8

Terminal, hex

2шт.

24

A49805

COVER

terminal

1шт.

25

892-1110

LOCK WASHER,M10

1шт.

26

A46950

SCREW,M5 x 0.8 x 0.8mm

terminal

1шт.

27

892-1105

LOCK WASHER,M5

terminal screw

1шт.

30

A49804

HOUSING

starter field, Includes: Ref. 31 - 33

1шт.

31

NSS

NOT SOLD SEPARAT

SCREW - pole shoes

4шт.

32

NSS

NOT SOLD SEPARAT

SHOE - pole

4шт.

33

NSS

NOT SOLD SEPARAT

COIL - field

1шт.

34

A49812

SEAL

housing

2шт.

35

A47244

CAPTIVE WASHER SCREW,Cross Pan Hd, M5 x 0.8 x 8mm

AND WASHER - brush retaining

4шт.

36

A49806

BRUSH HOLDER

Includes: Ref. 37

1шт.

37

A47249

SPRING

brush tension

4шт.

38

A49807

COMMUTATOR BRUSH

starter

2шт.

39

A49808

COMMUTATOR BRUSH

starter

2шт.

42

A49801

ROTOR

ARMATURE - starter, Includes: Ref. 43 & 44

1шт.

43

A49800

BALL BEARING,15 mm ID x 35 mm OD x 11 mm

armature, 15 x 35 x 11 mm

1шт.

44

A47248

BALL BEARING

armature, 10 x 30 x 9 mm

1шт.

45

A49811

COVER ASSY

commutator end

1шт.

46

A49803

BREATHER

frame end

1шт.

47

A49813

BOLT

through, hex, 7 x 208 mm

1шт.

48

A49814

BOLT

through, hex, 7 x 146 mm

1шт.

49

A49815

LOCK WASHER

through bolt

2шт.
