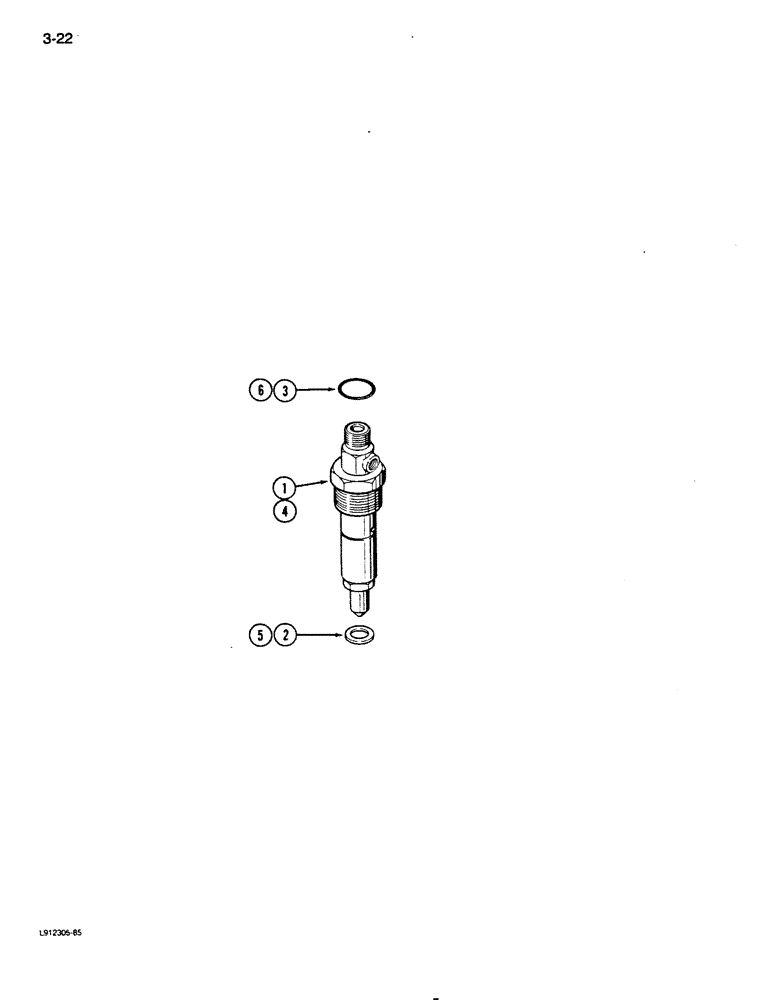

Запчасти Case 850D (3-22) - FUEL INJECTION NOZZLE - 7 MM TIP, 6-590 ENGINE, 6T-590 ENGINE, ENGINE SERIAL NO. 44566928 & AFTER (03) - FUEL SYSTEM

1

J919331

NOZZLE INJECTION

fuel, (CAV), fuel nozzle 7mm tip, 6-590 engine (natural aspirated) serial no. 44566928 & after, Includes: Ref. 2

4шт.

Whenever a nozzle is removed from the cylinder head, J920174 seal must be replaced before nozzle is installed in cylinder head.

1шт.

2

J920174

PACKING RING

injector

1шт.

3

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

injector

4шт.

4

J919325

NOZZLE INJECTION

fuel, (CAV), 7mm tip, 6t-590 engine (turbocharged) serial no. 44566928 & after, Includes: Ref. 5

4шт.

Whenever a nozzle is removed from the cylinder head, J920174 seal must be replaced before nozzle is installed in cylinder head.

1шт.

5

J920174

PACKING RING

injector, fuel nozzle 7mm tip, 6t-590 engine (turbocharged) serial no. 44566928 & after

1шт.

6

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

injector, fuel nozzle 7mm tip, 6t-590 engine (turbocharged) serial no. 44566928 & after

4шт.
