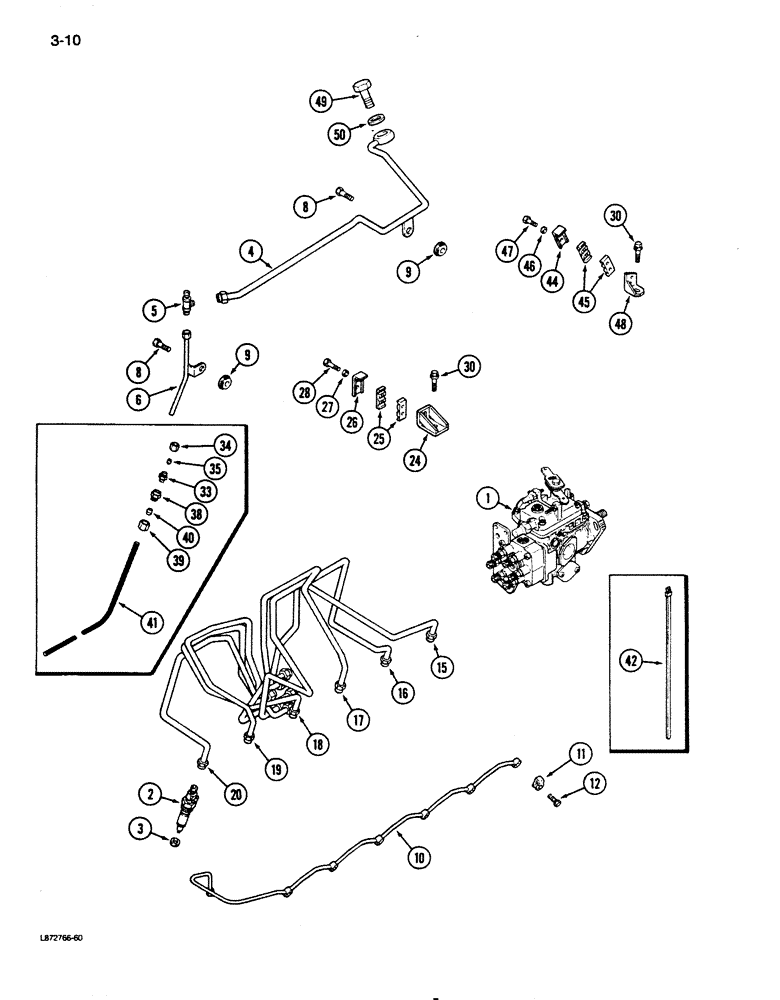

Запчасти Case 850D (3-10) - FUEL INJECTION SYSTEM, 6T-590 ENGINE (TURBOCHARGED) (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See Figure 3-16)

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel (See Figure 3-20 and 3-22)

6шт.

3

REF

INSTRUCTION

SEAL - injector (See Figure 3-20 and 3-22)

6шт.

4

J905705

FUEL TUBE,4.76 mm OD

fuel drain

1шт.

5

222-121

TEE,3/16", Flex Tubing

Union, 7/16"-24 thrd (Remove and discard hex nuts and sleeves at assembly)

1шт.

6

J905692

FUEL TUBE

fuel return

1шт.

8

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

9

J900267

SEAL

cover bolt

2шт.

10

J909696

TUBE

manifold, fuel drain

1шт.

11

J903380

SEAL

connector

6шт.

12

J905307

BANJO BOLT,M6 x 1 x 14.30mm

Drain, Special

6шт.

15

J909438

FUEL TUBE,2 mm ID x 6.4 mm OD x 746 mm L

injector, No. 1 cylinder

1шт.

16

J903486

FUEL TUBE,2 mm ID x 6.4 mm OD x 747.5 mm L

injector, No. 2 cylinder

1шт.

17

J903487

FUEL TUBE,2 mm ID x 6.4 mm OD x 741.8 mm L

injector, No. 3 cylinder

1шт.

18

J903488

FUEL TUBE,2 mm ID x 6.4 mm OD x 747.3 mm L

injector, No. 4 cylinder

1шт.

19

J903489

FUEL TUBE,2 mm ID x 6.4 mm OD x 748.1 mm L

injector, No. 5 cylinder

1шт.

20

J903490

FUEL TUBE,2 mm ID x 6.4 mm OD x 745.3 mm L

injector, No. 6 cylinder

1шт.

A77494

BRACKET

fuel tube

1шт.

24

NSS

NOT SOLD SEPARAT

BRACKET - fuel tube

1шт.

25

J917747

CLAMP

tube

2шт.

26

NSS

NOT SOLD SEPARAT

PLATE - clamp

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER - flat, 5 mm

2шт.

28

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

2шт.

30

J904341

BOLT,M6 x 1 x 35mm, Cl 8.8

flanged hex

2шт.

33

222-601

FITTING,3/8"-24 x 1/8" NPT, Comp

3/16 tube OD

1шт.

34

222-661

TUBE NUT,3/8"-24, 45 Degree Fl, Comp

Hex, 3/16 tube OD

1шт.

35

222-651

SLEEVE,3/16" Tube, Comp

Tapered

1шт.

38

222-5130

FITTING,7/16"-24 x 1/8" NPT Fem

compression, 1/4 tube OD x 1/8 inch female PT

1шт.

39

222-5180

TUBE NUT,7/16"-24

Hex, 1/4 tube OD

1шт.

40

222-5185

SLEEVE,1/4" Tube

1шт.

41

A60722

TUBE

fuel, nylon 104 inch

1шт.

42

R38237

STRAP

nylon, retaining

1шт.

A77529

BRACKET

fuel tube

1шт.

44

NSS

NOT SOLD SEPARAT

BRACKET - fuel tube

1шт.

45

J917747

CLAMP

tube

2шт.

46

NSS

NOT SOLD SEPARAT

WASHER - flat, 5 mm

2шт.

47

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

2шт.

48

NSS

NOT SOLD SEPARAT

PLATE - clamp

1шт.

49

NSS

NOT SOLD SEPARAT

BOLT - - bamjo connector

1шт.

50

NSS

NOT SOLD SEPARAT

WASHER - sealing

1шт.
