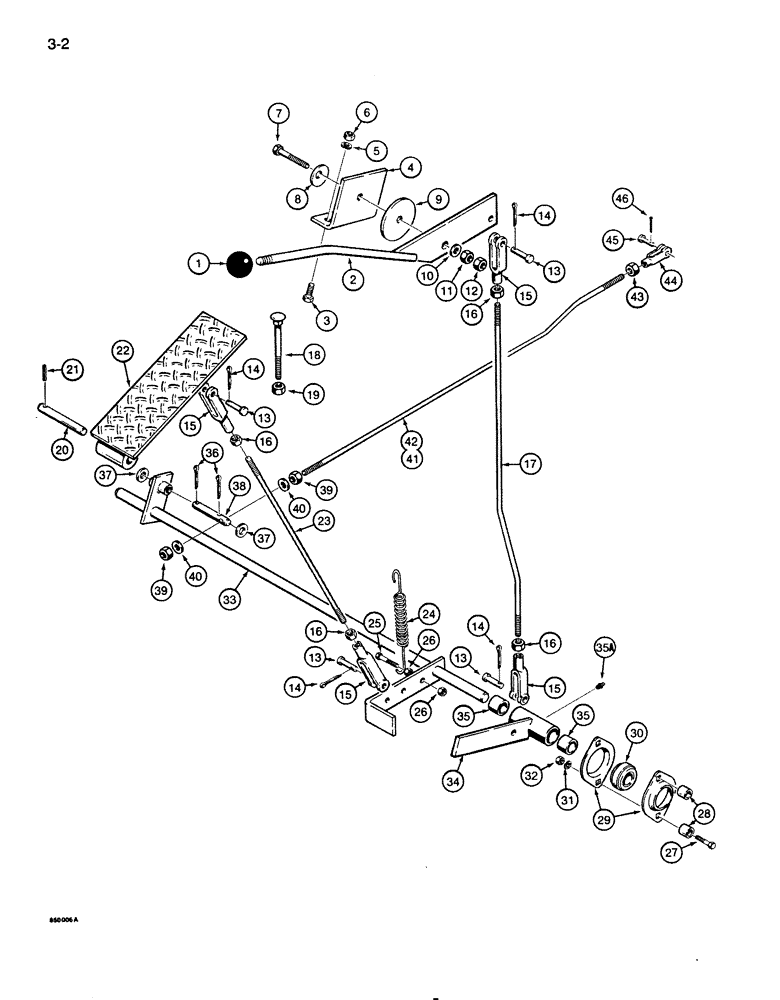

Запчасти Case 850D (3-02) - THROTTLE CONTROL LINKAGE (03) - FUEL SYSTEM

1

D49996

KNOB

control lever

1шт.

2

R26931

LEVER

hand throttle

1шт.

3

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

4

R26944

SUPPORT

mounting, control lever

1шт.

5

92-8

LOCK WASHER,1/2"

2шт.

6

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

7

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

8

R14771

WASHER

belleville, spring - control lever

1шт.

9

D139323

FRICTION WASHER

control lever

1шт.

10

95-8

WASHER,1/2"

Flat

1шт.

11

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

12

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

13

141-53

CLEVIS PIN,5/16" x .940"

4шт.

14

132-320

COTTER PIN,3/32" x 3/4"

4шт.

15

H44198

YOKE

UNIVERSAL JOINT YOKE adjustable, 5/16" - 24 NF threads, plated

4шт.

16

129-122

NUT,5/16"-24, G5

4шт.

17

R34807

ROD

connecting, control lever to cross shaft

1шт.

18

111-538

CARRIAGE BOLT,Short NK, 1/2"-13 x 4", G2

1шт.

19

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

20

R17364

SHAFT

pedal

1шт.

21

135-737

GROOVED PIN,5/32" x 1", Type E

1шт.

22

R26937

PEDAL

foot throttle

1шт.

23

R32621

ROD

connecting, foot pedal

1шт.

24

R36912

SPRING

return

1шт.

25

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

26

129-103

NUT,Hex, 3/8" - 16, Gr 5

4шт.

27

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

4шт.

28

D34162

SPACER

flange

4шт.

29

F13526

FLANGED BEARING

ball bearing

4шт.

30

R46666

BALL BEARING,0.627" ID x 1.575" OD x 1.125"

shaft

2шт.

31

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

4шт.

32

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

33

R34870

JACKSHAFT

cross, throttle control

1шт.

34

R55093

LEVER

connecting, Includes: Ref. 35 & 35A

1шт.

35

R31144

BUSHING

lever

2шт.

35a

219-410

LUBE NIPPLE,3/16" NPTF

1шт.

36

132-320

COTTER PIN,3/32" x 3/4"

2шт.

37

195-533

WASHER,1/2", SAE

2шт.

38

D47686

SHAFT

throttle control to accelerator rod

1шт.

39

131-30

LOCK NUT,1/4"-28, G8

Thin

2шт.

40

195-518

WASHER,1/4", SAE

2шт.

41

R51637

ROD

accelerator, models without turbocharger, if used

1шт.

42

R51638

ROD

accelerator, models with turbocharger, if used

1шт.

43

129-121

NUT,1/4"-28, G5

1шт.

44

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

1шт.

45

141-52

CLEVIS PIN,1/4" x .770"

1шт.

46

132-379

COTTER PIN,5/64" x 1/2"

1шт.
