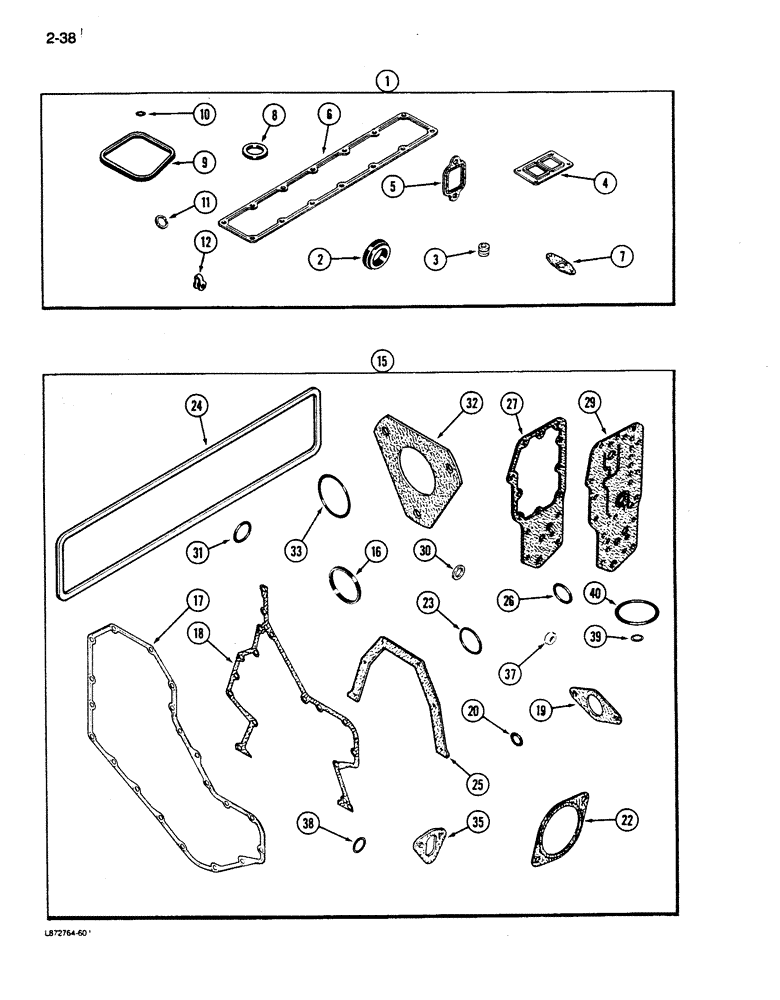

Запчасти Case 850D (2-38) - ENGINE GASKET KITS, 6-590 ENGINE, 6T-590 ENGINE, VALVE GRIND (02) - ENGINE

1

A77675

GASKET KIT

valve grind (Replaces A77493); Includes: 1 - 12

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket on Figure 2-18.

1шт.

2

J903301

GASKET

housing, thermostat

1шт.

3

J901097

SEAL

valve

12шт.

4

J901356

GASKET,0.5mm Thk

, Serial Range: turbocharger-manifold

1шт.

5

J905443

MANIFOLD GASKET

exhaust manifold

6шт.

6

J914029

GASKET

intake manifold (Replaces J907036)

1шт.

7

J914388

GASKET

GASKET - drain tube (Replaces J901805)

1шт.

8

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

oil fill cap

6шт.

9

J902666

GASKET

rocker cover

6шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

cover bolt (Replaces J901837)

6шт.

11

J900808

SEAL

injector

6шт.

12

J903380

SEAL

connector

6шт.

15

A77674

GASKET KIT

engine block (Replaces A77491); Includes: 15 - 40, cylinder

1шт.

For complete engine overhaul, order 1 - valve grind kit, 1 - cylinder block kit, 1 - oil pan kit, Figure 2-16, front and rear crankshaft seal kit, Figure 2-32 and required cylinder head gasket Figure 2-18.

1шт.

16

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

cover, cylinder block kit

1шт.

17

J914385

GASKET,1.02mm Thk

front cover (Replaces J910500), cylinder block kit

1шт.

18

J916131

GASKET

gear housing (Replaces J907836), cylinder block kit

1шт.

19

J905595

GASKET

pin housing, timing, cylinder block kit

1шт.

20

J913994

O-RING

sealing (Replaces J903927), cylinder block kit

1шт.

22

J919601

GASKET

cover plate (Replaces A77441), cylinder block kit

1шт.

23

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

(Replaces 22290R1), Cylinder block kit

1шт.

24

J907617

GASKET

tappet cover (Replaces J904776), cylinder block kit

1шт.

25

J914386

GASKET

seal retainer (Replaces J901019), cylinder block kit

1шт.

26

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID, cylinder block kit

1шт.

27

J918256

GASKET

cooler core, oil (Replaces J904427), cylinder block kit

1шт.

29

J918257

GASKET

filter head (Replaces J912532), cylinder block kit

1шт.

30

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

seal, plug, cylinder block kit

1шт.

31

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

cylinder block kit

1шт.

32

J914389

GASKET

pump mounting (Replaces J905685), cylinder block kit

1шт.

33

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING housing to block (Replaces A157927), cylinder kit

1шт.

35

J914304

GASKET

mounting, pump (Replaces J904044), cylinder block kit

1шт.

37

J900267

SEAL

cover bolt, cylinder block kit

6шт.

38

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

(Replaces 253070R1), cylinder block kit

1шт.

39

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

SEALRING sealing, 14 mm ID, cylinder block kit

1шт.

40

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

SEALRING sealing, 70 mm ID, cylinder block kit

1шт.
