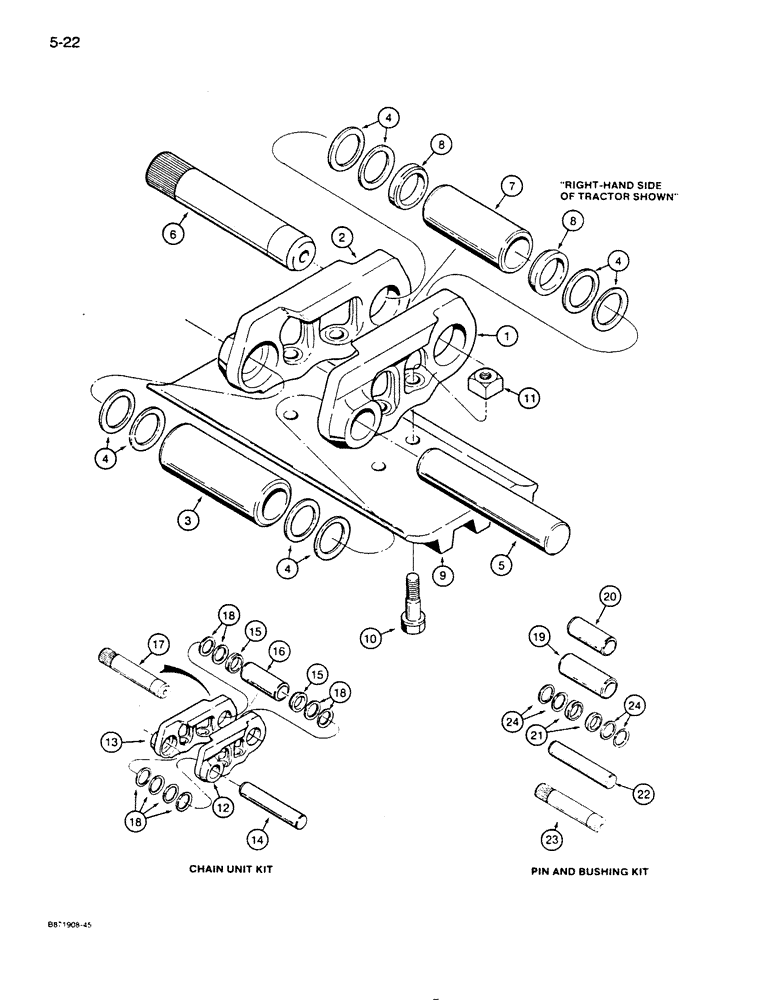

Запчасти Case 850D (5-22) - SEALED TRACK CHAIN (OPTIONAL) LOADER PRIOR TO PIN JAK0005766 / DOZER PRIOR TO PIN JAK0002253 (11) - TRACKS/STEERING

R49303

CHAIN (AG)

track, 38 unit, used on loaders and 60 inch gauge standard track dozers, Includes: Ref. 1 - 8

2шт.

1

R49789

LINK

track, right-hand

38шт.

2

R49788

LINK

track, left-hand

38шт.

3

R49790

BUSHING

standard pin

37шт.

4

R50211

WASHER

bushing

152шт.

5

R49792

PIN,33.48mm OD x 183.5mm L

standard

37шт.

6

R49793

PIN

master

1шт.

7

R49791

BUSHING

master pin

1шт.

8

R50210

SPACER

master bushing

2шт.

9

REF

INSTRUCTION

TRACK SHOE - see Figures 5-30 and 5-32 for options

76шт.

10

D48004

FLANGE BOLT

special, 2" (51 mm) long

304шт.

11

R57375

SQUARE NUT

square, special

304шт.

R51737

LINK

chain unit, Includes: instruction sheet & Ref. 12 - 18

1шт.

12

R49789

LINK

track, right-hand, chain unit kit (includes standard & master track pins)

1шт.

13

R49788

LINK

track, left-hand, chain unit kit (includes standard & master track pins)

1шт.

14

R49792

PIN,33.48mm OD x 183.5mm L

track, standard, chain unit kit (includes standard & master track pins)

2шт.

15

R50210

SPACER

bushing, master pin, track chain unit kit (includes standard & master track pins)

2шт.

16

R49791

BUSHING

master pin, track chain unit kit (includes standard & master track pins)

1шт.

17

R49793

PIN

master, track chain unit kit (includes standard & master track pins)

1шт.

18

R50211

WASHER

bushing, track chain unit kit (includes standard & master track pins)

8шт.

R51738

AXLE PIN

KIT - pin and bushing, Includes: instruction sheet & Ref. 19 - 24 (service both sides)

1шт.

19

R49790

BUSHING

standard pin kit (services both sides)

74шт.

20

R49791

BUSHING

master pin kit, services both sides

2шт.

21

R50210

SPACER

master bushing, pin kit, services both sides

4шт.

22

R49792

PIN,33.48mm OD x 183.5mm L

standard, bushing kit, services both sides

74шт.

23

R49793

PIN

master, bushing kit, services both sides

2шт.

24

R50211

WASHER

belleville, spring - bushing, pin kit, services both sides

304шт.
