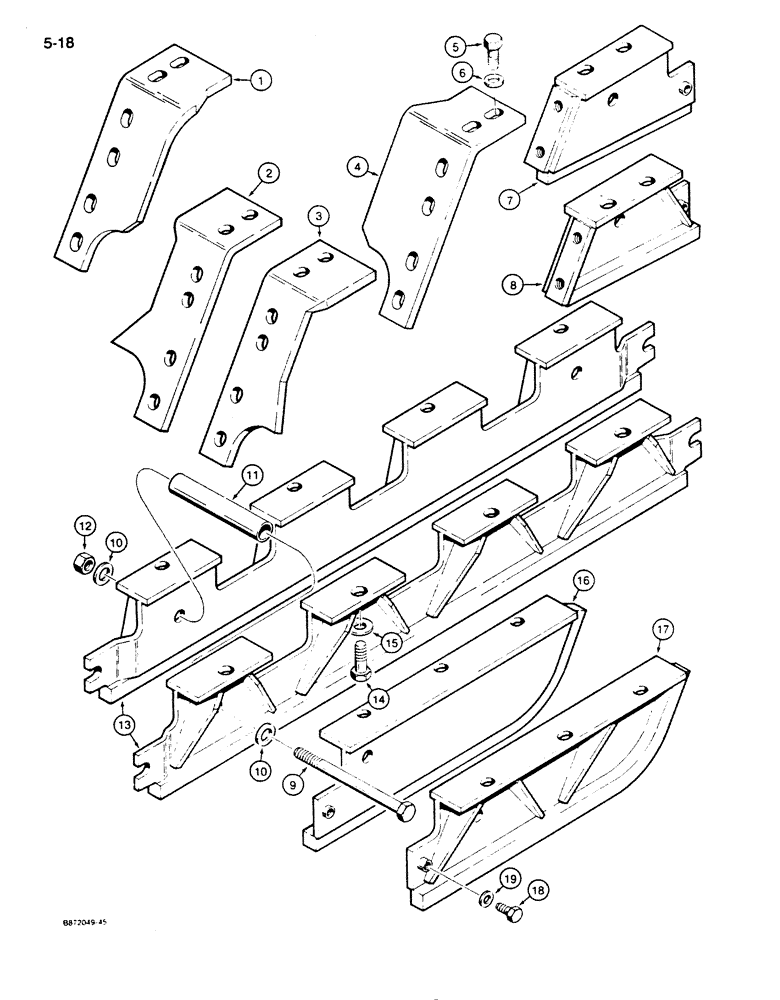

Запчасти Case 850D (5-18) - TRACK GUARDS, USED ON MODELS WITH ANGLED REAR TRACK COVER (11) - TRACKS/STEERING

1

R54464

GUARD

rear, left-hand track, outer

1шт.

2

R44467

COVER

rear, left-hand track, inner

1шт.

3

R44468

COVER

rear, right-hand track, inner

1шт.

4

R54465

COVER

rear, right-hand track, outer

1шт.

5

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Use with Loctite 242

24шт.

6

196-26

WASHER,21/32" x 1 5/16" x .150", HDN

flat, 5/8", hardened

24шт.

7

R52339

GUARD

rear, left-hand, both tracks

2шт.

8

R52340

GUARD ASSY.

rear, right-hand, both tracks

2шт.

9

413-12152

BOLT,Hex, 3/4" - 10 x 9-1/2", Gr 5

8шт.

10

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, 3/4", hardened

16шт.

11

D35698

SPACER

track guards

8шт.

12

131-669

LOCK NUT,3/4"-10, GB

8шт.

13

R52343

GUARD

center

4шт.

14

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

Use with Loctite 242

36шт.

15

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

flat, 3/4", hardened

36шт.

16

R56620

GUARD

front, left-hand, both tracks, was R52341

2шт.

17

R56629

GUARD

front, right-hand, both tracks, was R52342

2шт.

18

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Use with Loctite 242

8шт.

19

D64050

WASHER

flat, 1/2", hardened, plated

8шт.
