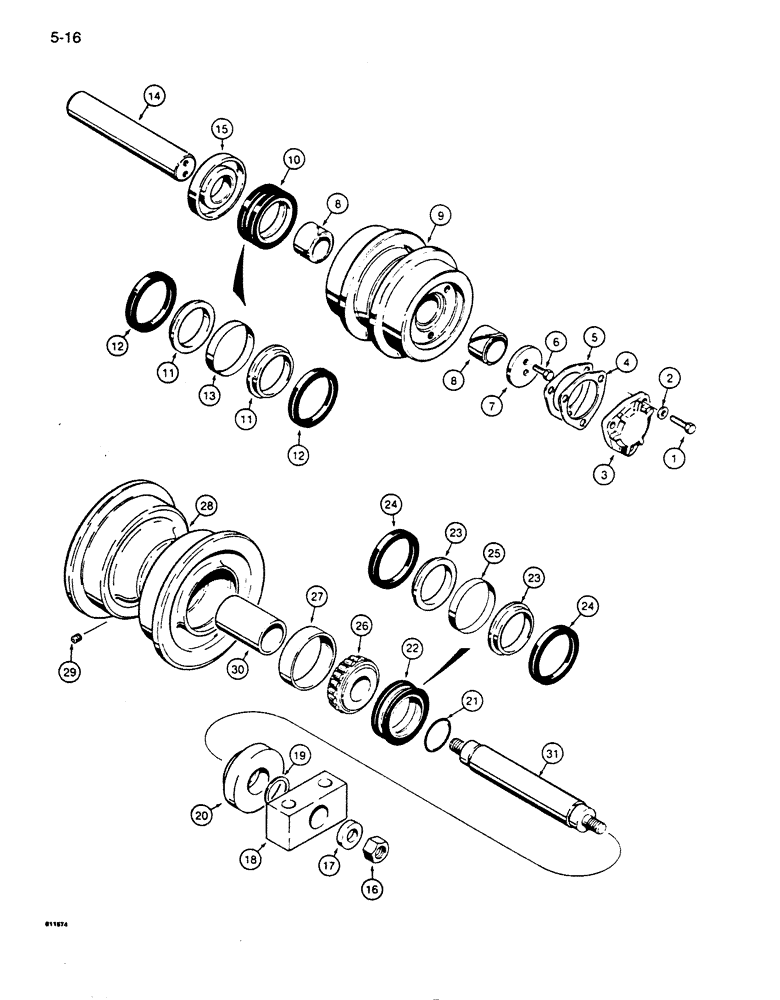

Запчасти Case 850D (5-16) - CASE-MADE TRACK ROLLER ASSEMBLIES, CARRIER ROLLER ASSEMBLY (11) - TRACKS/STEERING

D48684

ROLLER

Case-made, no longer available, order R33965 carrier roller, parts list Figure 5-14

2шт.

1

26-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

Carrier roller assembly

3шт.

2

D35288

WASHER

copper, carrier roller assembly

1шт.

3

R29288

COVER ASSY

carrier roller assembly

1шт.

4

D30384

SHIM,.010" Thk

(0.254 mm), Brown, Carrier roller assembly

1шт.

5

D30383

SHIM,.005" Thk

(0.13 mm) Blue, Carrier roller assembly

1шт.

6

26-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

Carrier roller assembly

2шт.

7

D30382

WASHER

shaft, carrier roller assembly

1шт.

8

D46396

BUSHING,44.51mm ID x 49.23mm OD x 31.75mm L

split, carrier roller assembly

2шт.

9

D49945

HUB CAP

carrier roller assembly

1шт.

10

R39273

SEAL

carrier roller, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - seal, split, carrier roller assembly

1шт.

D36826

SEAL KIT

face seal repair, Includes: Ref. 12 & 13, carrier roller assembly

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - rubber, carrier roller assembly

2шт.

13

NSS

NOT SOLD SEPARAT

RETAINER - plastic, carrier roller assembly

1шт.

14

D49100

SHAFT

carrier roller assembly

1шт.

15

D35265

COLLAR

face seal, carrier roller assembly

1шт.

R24102

ROLLER

Case-made, no longer available, order R56593 track roller, parts list Figure 5-14

10шт.

16

131-1152

LOCK NUT,3/4"-10, GC

R24102 track roller assembly

2шт.

17

D44182

WASHER

special, R24102 track roller assembly

2шт.

18

D36409

BLOCK

roller mounting, R24102 track assembly

2шт.

19

D31329

SHIM,.005" Thk

(0.13 mm), R24102 Track roller assy

1шт.

20

D45502

BUSHING

track roller, R24102 assembly

2шт.

21

D27878

O-RING,1.609" ID x 1.887" OD

shaft, R24102 track roller assembly

2шт.

22

R39273

SEAL

track roller, R24102, Includes: Ref. 23 - 25

2шт.

23

NSS

NOT SOLD SEPARAT

BODY - seal, split, R24102 track roller assembly

1шт.

D36826

SEAL KIT

face seal repair, R24102 track roller assembly, Includes: Ref. 24 & 25

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - rubber, R24102 track roller assembly

2шт.

25

NSS

NOT SOLD SEPARAT

RETAINER - plastic, R24102 track roller assembly

1шт.

26

ST791

TAPERED BEARING,1.6255" ID x 3.376" OD x 1.202"

R24102 track roller assembly

2шт.

27

D44322

BEARING CUP,3.375" OD x 0.9375"

tapered roller bearing, R24102 track assembly

2шт.

28

R24100

ROLLER

hub, single flange, R24102 track roller assembly

1шт.

29

221-841

PLUG

hex socket, 1/4 inch PT, R24102 track roller assembly

1шт.

30

D44183

SPACER

roller shaft, R24102 track assembly

1шт.

31

D44184

SHAFT

R24102 track roller assembly

1шт.
