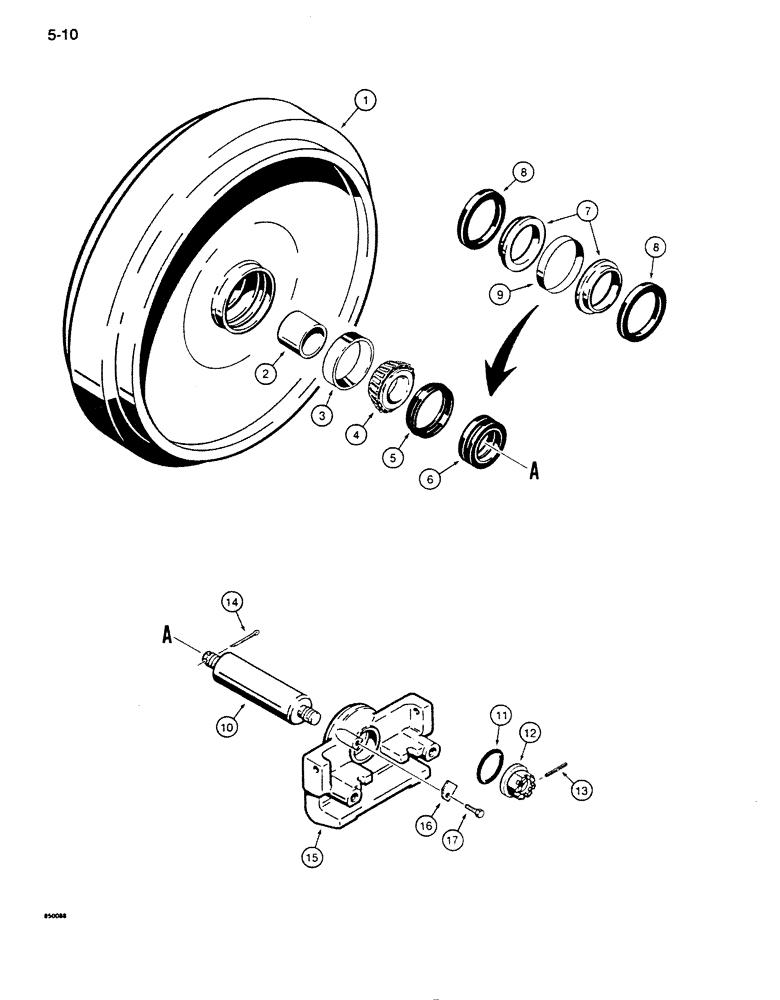

Запчасти Case 850D (5-10) - R51568 IDLER ASSEMBLY, SHAFT RETAINED BY FLANGE NUT (SEE ITEM 12 FOR IDENTIFICATION) (11) - TRACKS/STEERING

R51568

FRONT IDLER

uses flange nut (Ref. 12) on end of shaft no longer available, order R55677 idler assembly on Figure 5-12

2шт.

1

R51252

WHEEL

idler

1шт.

2

R51425

SPACER

bearings

1шт.

3

360325R1

BEARING, CUP,104.775 mm OD x 23.812 mm

tapered roller bearing

2шт.

4

R51412

ROLLER BEARING,50.813 mm ID x 30.963 mm

TAPERED ROLLER

2шт.

5

R34742

SEAL

face seal

2шт.

6

R39273

SEAL

idler

2шт.

7

NSS

NOT SOLD SEPARAT

BODY - face seal

1шт.

D36826

SEAL KIT

Includes: Ref. 8 & 9

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - rubber

2шт.

9

NSS

NOT SOLD SEPARAT

RETAINER - plastic

1шт.

10

R51161

SHORT SHAFT

idler assembly

1шт.

11

F62076

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

idler bracket

2шт.

12

R51426

NUT

with 7/16" (11 mm) thick flange

2шт.

13

138-218

LOCK PIN,5/16" x 1 7/8", Slotted

At locking tab end of shaft

1шт.

14

132-183

COTTER PIN,5/16" x 2 1/8"

Inner side of idler

1шт.

15

R51444

BRACKET

idler mounting

2шт.

16

R51567

LARGE PLATE

PLATE, LARGE locking, outer side of idler

1шт.

17

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

2шт.

18

B17501

LOCTITE

Gasket Eliminator no. 515, 6 ml tube, use between castle nut and bracket on both sides of the idler assembly, not shown

1шт.
