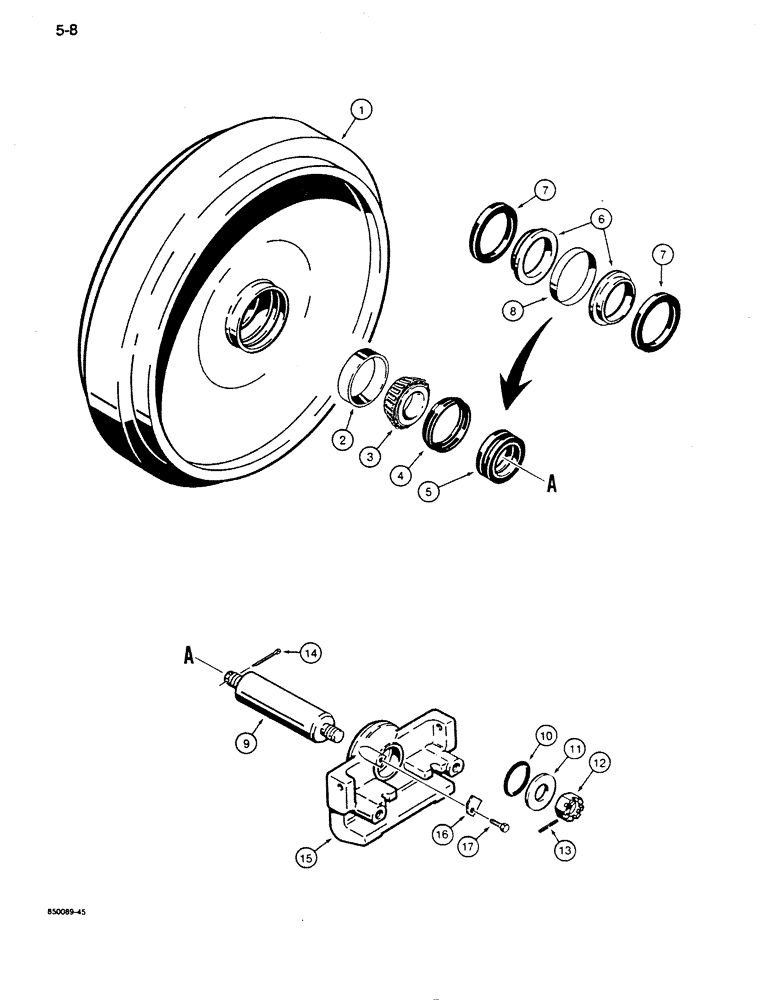

Запчасти Case 850D (5-08) - R45010 IDLER ASSEMBLY (SEE ITEMS 11 & 12 FOR IDENTIFICATION) (11) - TRACKS/STEERING

R45010

FRONT IDLER

uses separate castle nut and washer (Ref. 11 & 12) on end of shaft, no longer available, replace with R55677 idler assembly on Figure 5-12, Includes: Ref. 1 - 8

2шт.

1

R50082

WHEEL

IDLER - hub

1шт.

2

A27732

BEARING CUP

tapered roller bearing

2шт.

3

51200231

BEARING, CONE,50.8mm ID x 30.96mm W

tapered roller, idler assembly

2шт.

4

R34742

SEAL

face seal

2шт.

5

R39273

SEAL

idler assembly

2шт.

6

NSS

NOT SOLD SEPARAT

BODY - face seal

1шт.

D36826

SEAL KIT

face seal repair

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - rubber

2шт.

8

NSS

NOT SOLD SEPARAT

RETAINER - plastic

1шт.

9

R46824

SHAFT

idler assembly

1шт.

10

F62076

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

idler bracket

2шт.

11

D43745

WASHER

flat, 1-1/4 inch, hardened

2шт.

12

25-1320

SLOTTED NUT,1 1/4"-12, G5

2шт.

13

138-218

LOCK PIN,5/16" x 1 7/8", Slotted

At locking tab end of shaft

1шт.

14

432-1636

COTTER PIN,1/4" x 2 1/4"

Inner side of idler

1шт.

15

R44999

BRACKET

no longer available, replace with bracket and locking tab from R51568 idler assembly, see Ref. 15 & 16 on Figure 5-10

2шт.

16

R46823

PLATE

locking, nut retaining, used with R44999 bracket (Ref. 15) only

1шт.

17

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

2шт.
