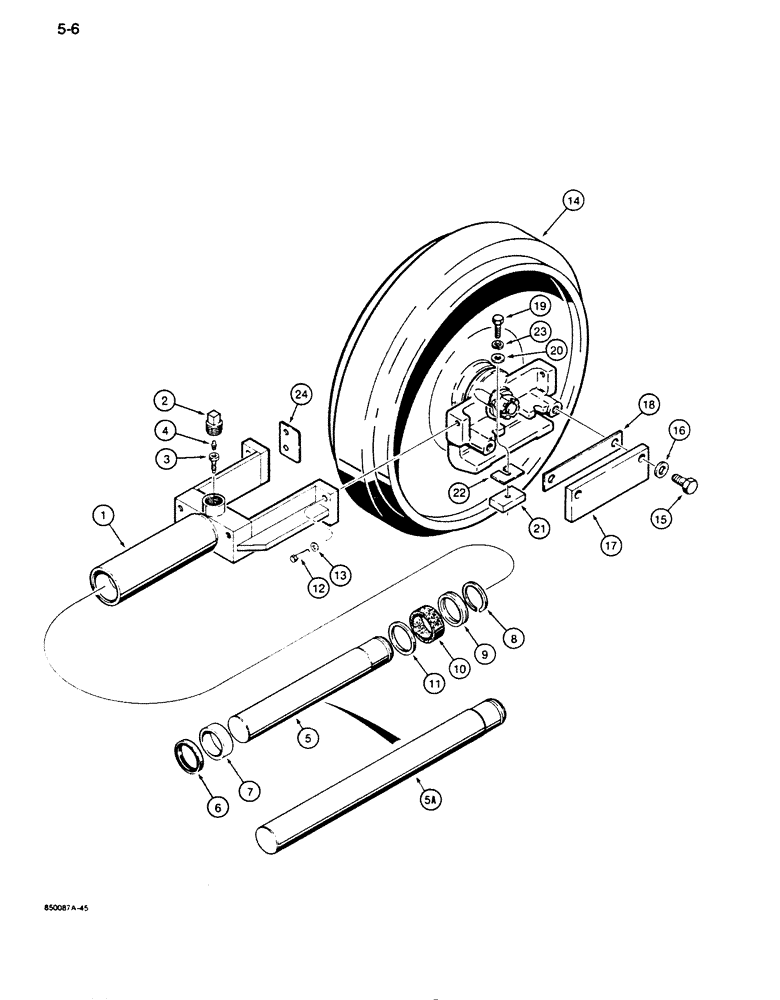

Запчасти Case 850D (5-06) - TRACK ADJUSTER ASSEMBLY AND IDLER MOUNTING (11) - TRACKS/STEERING
№
Артикул
Название
Примечание
Количество
R32467
ADJUSTER
track, used on loader models and on all standard track dozer models, Includes: Ref. 1 - 11
2шт.
R54616
ADJUSTER
track, used on all long track dozer models (LGP and 60" gauge), Includes: Ref. 1 - 11
2шт.
1
R31976
YOKE
UNIVERSAL JOINT YOKE track adjuster
1шт.
3
D35287
CHECK VALVE,5/8" - 18
track adjuster
1шт.
4
219-1
LUBE NIPPLE,1/8" - 27 NPTF
1шт.
5
R31983
ROD
piston, 16-1/8" (410 mm) long, used on loader models and on all standard track dozer models
1шт.
5a
R54615
PISTON
piston, 25-1/2" (648 mm) long, used on all long track dozer models (LGP and 60" gauge)
1шт.
6
D95149
PACKING RING,60.24mm ID x 73.05mm OD x 7.92mm Thk
rod
1шт.
7
D30374
RING,60.43mm ID x 73.15mm OD x 25.4mm L
wiper
1шт.
8
A32413
SNAP RING,#212, 1.997", Ext
rod
1шт.
9
R25706
SEAL,53.9mm ID x 66.75mm OD x 10.69mm Thk
U-cup, rod
1шт.
10
R25663
BUSHING,53.98mm ID x 66.62mm OD x 25.4mm L
seal, backup
1шт.
11
R30202
RING,54.101mm ID x 65.1mm OD x 5.08mm Thk
seal
1шт.
12
26-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8
Use with Loctite 242
4шт.
13
496-21053
WASHER,17/32" x 1 1/16" x .134"
Hardened
4шт.
14
REF
INSTRUCTION
IDLER ASSEMBLY - track, for correct assembly and components see Figures 5-08 - 5-12
2шт.
15
113-713
BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5
8шт.
16
D34666
WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk
flat, 3/4", hardened
8шт.
17
R45570
PLATE
guide, idler
4шт.
18
D35268
SHIM,1/32" Thk
Guide plate
1шт.
Circular Washer-Type Shims Used. Please Order In Pairs
1шт.
19
26-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8
8шт.
20
496-21053
WASHER,17/32" x 1 1/16" x .134"
Hardened
8шт.
21
R45568
BLOCK
idler, above track frame
8шт.
22
R45569
SHIM
idler spacer, if used
1шт.
23
192-23
LOCK WASHER,1/2"
Used under ref. 19 bolt head if ref. 22 shim is not used
1шт.
24
R37875
SHIM,0.813mm Thk
Track adjuster
1шт.
Выбрано товаров: 28
