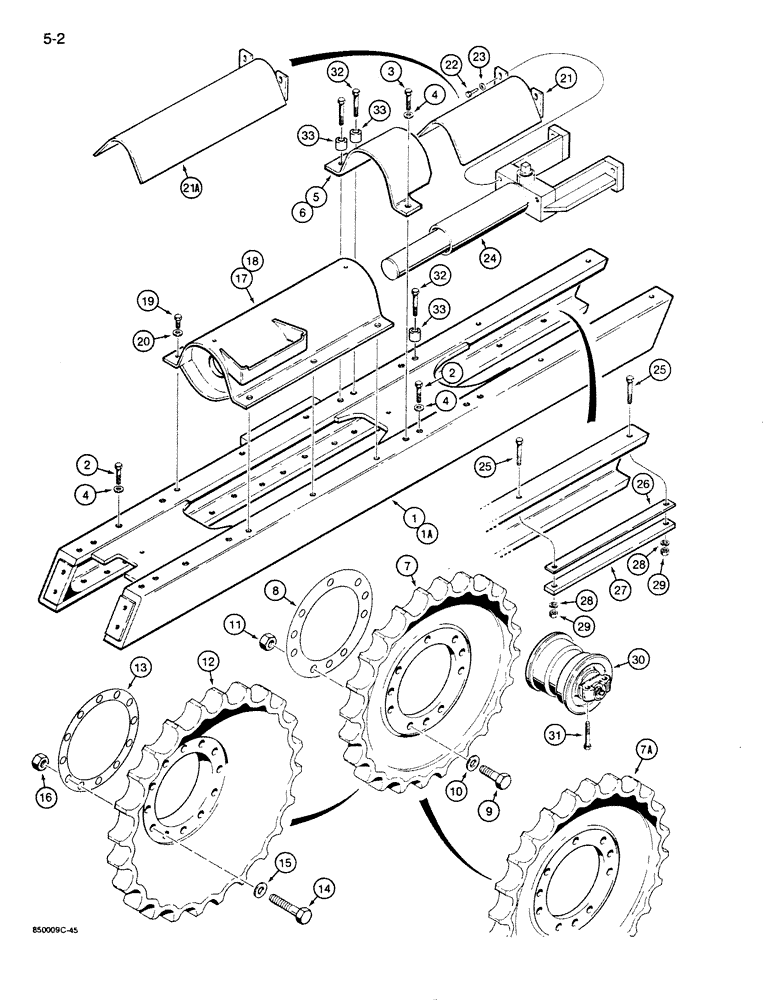

Запчасти Case 850D (5-02) - TRACK FRAMES AND RELATED PARTS (11) - TRACKS/STEERING

1

R34148

FRAME

used on loader models or 60" gauge dozer models (60" dozer uses angled rear track cover that extends over top of the track), Serial Range: -JAK0001551

2шт.

For rear track covers, see Figure 5-18 and 5-20.

1шт.

No longer available, Order R55992, plus (16) D34666 washers, (4) D35698 spacers, (2) R56633 gaurds, (4) R56637 covers, (2) R56646 guards, (16) 113-2628 bolts, (8) 113-2074 bolts, (4) 231-41112 nuts, (4) 413-12152 bolts, (16) 96-21066 washers, See Figure 5-20.

1шт.

1

R55992

FRAME

used on loader models and on 60" gauge standard track dozer models (uses flat rear track cover)

2шт.

For rear track covers, see Figure 5-18 and 5-20.

1шт.

1a

R54614

FRAME

used on LGP long track dozer models, (uses angled rear track cover that extends over top of the track) JAK0001551 to

2шт.

For rear track covers, see Figure 5-18 and 5-20.

1шт.

1a

R55994

FRAME

used on all long track dozer models (60" gauge and LGP) (uses flat rear track cover) JAK0001551 to

2шт.

For rear track covers, see Figure 5-18 and 5-20.

1шт.

2

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

Use with Loctite 242

12шт.

3

26-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 8

2шт.

4

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, 3/4", hardened

14шт.

5

R35422

COVER

yoke, left-hand

1шт.

6

R35423

COVER

yoke, right-hand

1шт.

7

R52597

DRIVE SPROCKET

25 teeth, 10 bolt holes, standard, if used

2шт.

7

R56464

DRIVE SPROCKET

23 teeth, 10 bolt holes, standard, if used

2шт.

7a

R56087

DRIVE SPROCKET

SPARE PART 25 teeth, 10 bolt holes, relieved, if used

2шт.

7a

R56508

DRIVE SPROCKET

23 teeth, 10 bolt holes, relieved, if used

2шт.

Relieved sprocket is the sprocket used in Clay application. It has ridges between teeth to stop build up.

1шт.

8

R46160

SHIM,.032" Thk

For sprocket with 10 bolt holes

1шт.

9

R27954

BOLT

special, 3/4 NC x 2-3/4 inch, if used

20шт.

10

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, 3/4", hardened

20шт.

11

131-1205

LOCK NUT,3/4"-10, GC

20шт.

12

R53117

DRIVE SPROCKET

25 teeth, 12 bolt holes, LGP dozer only, if used

2шт.

12

R56535

DRIVE SPROCKET

23 teeth, 12 bolt holes, LGP dozer only, if used

2шт.

13

R27241

SHIM,1/32" Thk

For sprocket with 12 bolt holes

1шт.

14

R31277

BOLT

special, 3/4 NC x 4-1/8 inch, if used

24шт.

15

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, 3/4", hardened

24шт.

16

131-1205

LOCK NUT,3/4"-10, GC

24шт.

17

R44849

HOUSING

RECOIL - left-hand

1шт.

18

R44850

HOUSING

RECOIL- right-hand

1шт.

19

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

12шт.

20

196-26

WASHER,21/32" x 1 5/16" x .150", HDN

flat, 5/8", hardened

12шт.

21

R46855

GUARD

adjuster, all loaders and standard track dozer models

2шт.

21a

R55843

GUARD

adjuster, long track dozer models

2шт.

22

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

Use with Loctite 242

4шт.

23

496-21053

WASHER,17/32" x 1 1/16" x .134"

flat, 1/2", hardened

4шт.

24

REF

INSTRUCTION

ADJUSTER ASSEMBLY - track, for correct assembly and components see Figure 5-06

2шт.

25

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

8шт.

26

CASR32491

SHIM

SHIM - idler, below track frame

1шт.

27

R32465

BAR

WEAR PLATE - idler, lower

4шт.

28

492-11062

BEARING WASHER,5/8"

8шт.

29

425-1010

NUT,5/8"-11, G5

8шт.

30

REF

INSTRUCTION

TRACK ROLLER - for correct assembly and components see Figures 5-14 and 5-16; use 5 per side on loader models and all standard track dozer models, use 6 per side on all long track dozer models

10-12шт.

31

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

Use with Loctite 242

40-48шт.

32

26-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

Use with Loctite 242, forward leg of main frame to track frame, inner bolts, both sides

8шт.

33

R30398

SPACER

forward leg of main frame to track frame, inner bolts, both sides

8шт.
