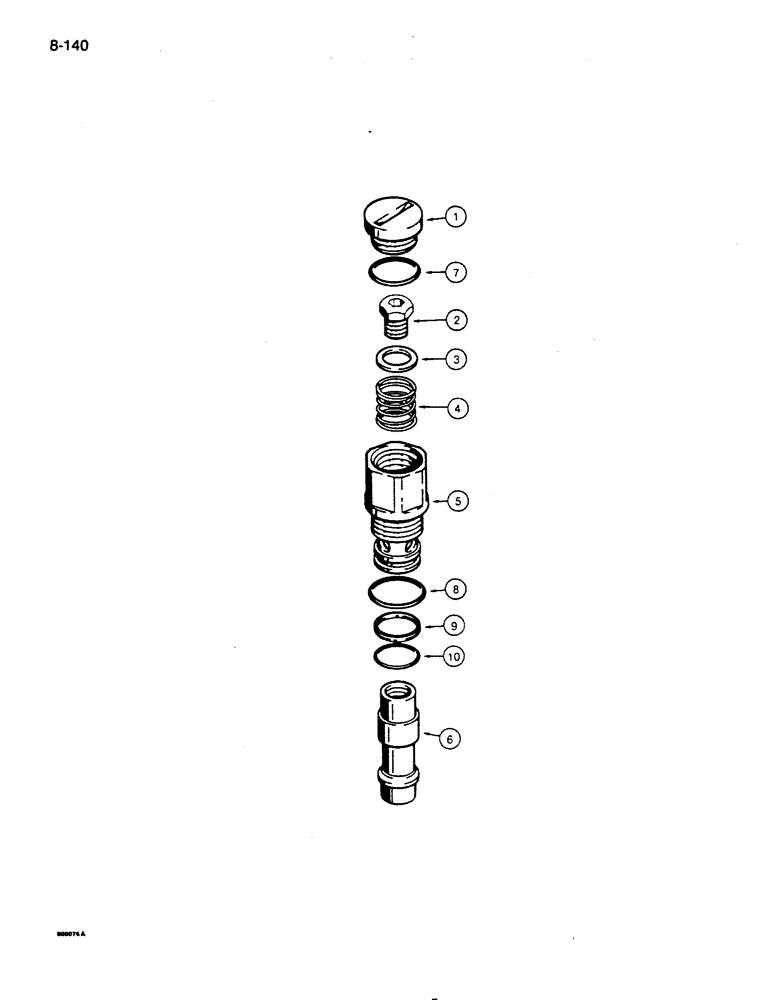

Запчасти Case 850D (8-140) - D78449 ANTICAVITATION VALVE, CONTROL VALVE LIFT SECTIONS (08) - HYDRAULICS

D78449

VALVE

anticavitation, order N14024 valve on Figue 8-142, Includes: Ref. 1 - 12

1шт.

1

R30182

PLUG

anticavitation valve

1шт.

2

D78450

PLUG

adjusting

1шт.

3

D78444

WASHER

flat

1шт.

4

R30196

SPRING

anticavitation valve

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - anticavitation valve

1шт.

6

D78451

VALVE POPPET

anticavitation valve

1шт.

R30184

SEAL

KIT, Includes: Ref. 7 - 12

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Plug

1шт.

8

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

body, large

1шт.

9

NSS

NOT SOLD SEPARAT

BACKUP RING - small O-ring, body

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - body, small

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - small, not used in this valve assembly, not shown

1шт.

12

NSS

NOT SOLD SEPARAT

RING - backup, not used in this valve assembly, not shown

1шт.
