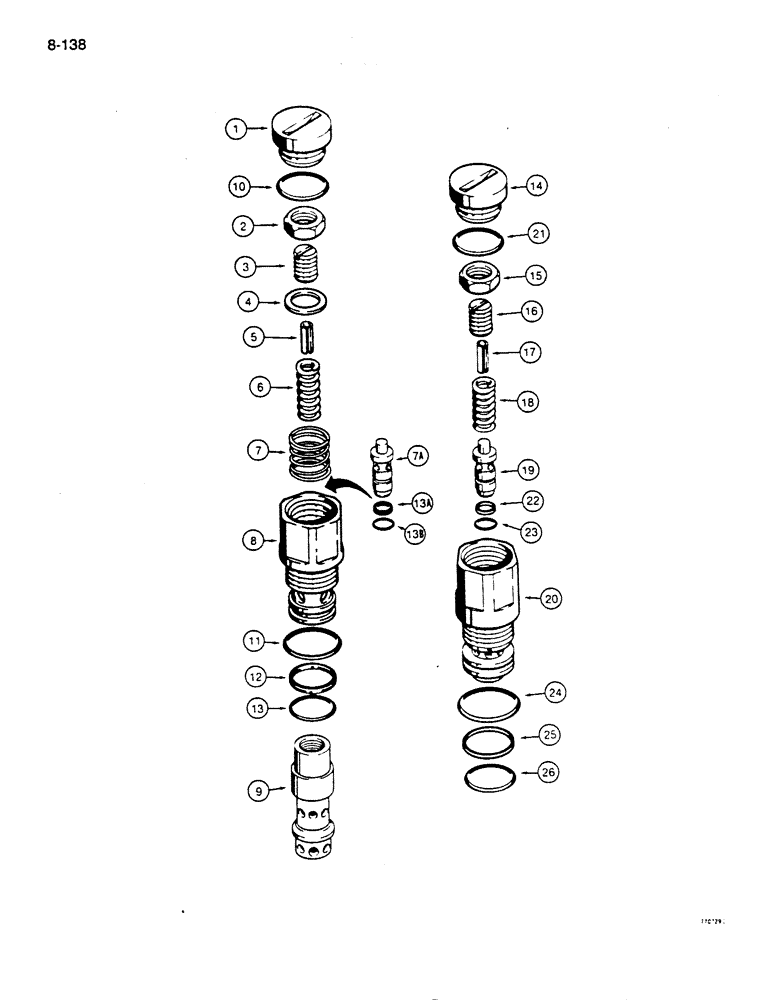

Запчасти Case 850D (8-138) - ANTICAVITATION AND CIRCUIT RELIEF VALVES (08) - HYDRAULICS

D78441

VALVE

combination anticavitation and circuit relief, used in loader bucket sections only, order S300433 valve on Figure 8-142, Includes: Ref. 1 - 13B

1шт.

D78453

VALVE

combination anitcavitation and circuit relief, used in ripper or clam bucket sections on loader models only, order S300440 valve on Figure 8-142, Includes: Ref. 1 - 13B

1шт.

1

R30182

PLUG

relief valve

1шт.

2

R30180

NUT

hex, locking

1шт.

3

R30179

ADJUSTMENT SCREW

adjusting

1шт.

4

D78444

WASHER

flat

1шт.

5

138-91

LOCK PIN,3/16" x 11/16", Slotted

Relief valve

1шт.

6

R30181

VALVE SPRING

inner

1шт.

7

R30196

SPRING

outer

1шт.

7a

D78443

PISTON

circuit relief valve

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

9

D78445

SPOOL

anticavitation valve

1шт.

R30184

SEAL

KIT, Includes: Ref. 10 - 13B

1шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Plug

1шт.

11

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

large, body

1шт.

12

NSS

NOT SOLD SEPARAT

BACKUP RING - small O-ring, body

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - small, body

1шт.

13a

NSS

NOT SOLD SEPARAT

BACKUP RING - poppet, circuit relief valve

1шт.

13b

NSS

NOT SOLD SEPARAT

O-RING - poppet, circuit relief valve

1шт.

D78442

VALVE

used in loader lift, loader bucket, loader clam bucket, ripper, and auxiliary sections, order S300440 valve except for loader lift applications which require S300434 valve, see Figure 8-142, Includes: Ref. 14 - 26

1шт.

The pressure setting on D78442 valve must be adjusted for loader lift section applications. Consult the 850D service manual for procedure and setting.

1шт.

14

R30182

PLUG

circuit relief valve, D78442

1шт.

15

R30180

NUT

hex, locking, D78442 circuit relief valve

1шт.

16

R30179

ADJUSTMENT SCREW

adjusting, D78442 circuit relief valve

1шт.

17

138-91

LOCK PIN,3/16" x 11/16", Slotted

Circuit relief valve, D78442

1шт.

18

R30181

VALVE SPRING

circuit relief valve, D78442

1шт.

19

D78443

PISTON

circuit relief valve, D78442

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - circuit relief valve, D78442

1шт.

R30184

SEAL

KIT, D78442 circuit relief valve, Includes: Ref. 21 - 26

1шт.

21

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Plug, D78442 circuit relief valve

1шт.

22

NSS

NOT SOLD SEPARAT

BACKUP RING - poppet, D78442 circuit relief valve

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING - poppet, D78442 circuit relief valve

1шт.

24

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

body, large, D78442 circuit relief valve

1шт.

25

NSS

NOT SOLD SEPARAT

BACKUP RING - small O-ring, body, D78442 circuit relief valve

1шт.

26

NSS

NOT SOLD SEPARAT

O-RING - body, small, D78442 circuit relief valve

1шт.
