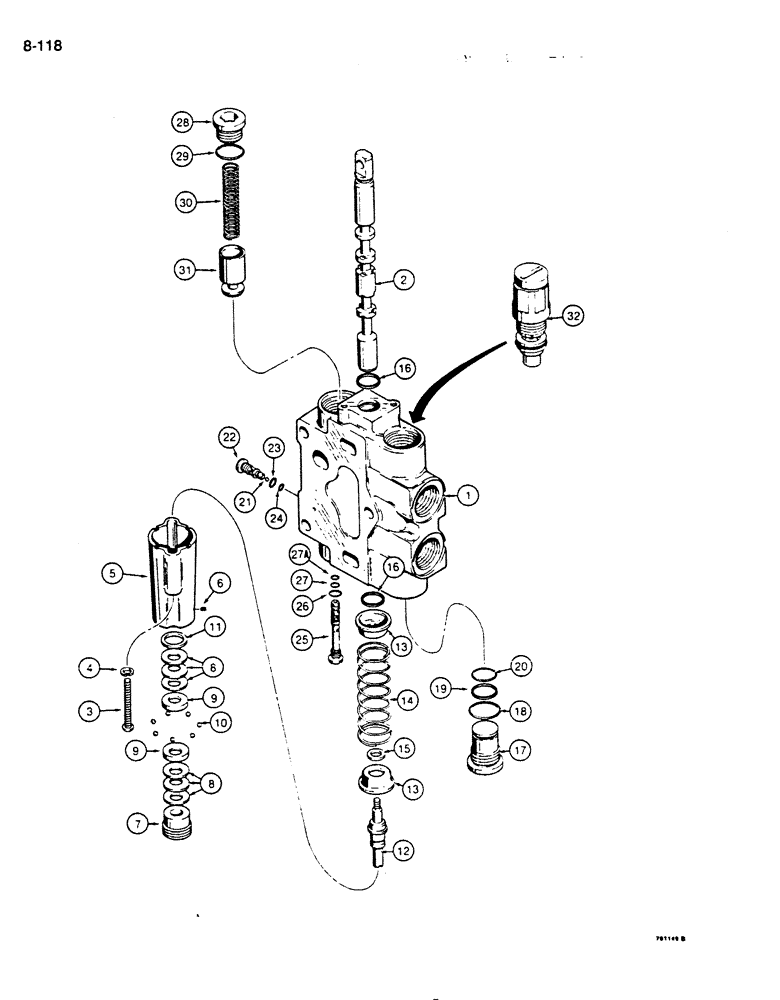

Запчасти Case 850D (8-118) - D87074 DOZER LIFT SECTION (08) - HYDRAULICS

D87074

VALVE

dozer lift, identification No. 307, no longer used, order N14018 section on Figure 8-120, Includes: Ref. 1 - 32

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - section

1шт.

3

61-436

HEX SOC SCREW,1/4"-20 x 2 1/4"

2шт.

4

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

2шт.

5

R30190

HOUSING

centering spring

1шт.

6

R30195

SCREW

special

1шт.

7

R30194

PLUG

detent adjusting

1шт.

8

D78437

WASHER

belleville, spring, detent

6шт.

9

D78439

RETAINER

ball

2шт.

10

211-257

BALL,1/4" Dia

Steel, (6 mm)

7шт.

11

D78438

WASHER

special

1шт.

12

D78447

SHAFT

detent

1шт.

13

R30191

WASHER

centering spring

2шт.

14

R30192

SPRING

spool

1шт.

15

R30198

WASHER

detent stud

1шт.

16

238-5118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

Spool

2шт.

17

R30167

PLUG

body, Includes: Ref. 18 - 20

1шт.

R30174

GASKET KIT

plug, Includes: Ref. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

19

NSS

NOT SOLD SEPARAT

BACKUP RING - small O-ring

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

21

211-204

BALL

3/16", grade 25, chrome alloy steel, secondary shuttle, Includes: Ref. 22 - 24

1шт.

A47210

PLUG

SHUTTLE ASSEMBLY - secondary

1шт.

22

A47204

PLUG

BODY - shuttle

1шт.

R30185

SEAL KIT

Includes: Ref. 23 & 24

1шт.

23

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

24

A47101

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

1шт.

D87080

VALVE

primary, Includes: Ref. 25 - 27A

1шт.

25

NSS

NOT SOLD SEPARAT

BODY - shuttle

1шт.

26

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Outer, 3/8" (9 mm) ID

1шт.

27

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

center, 1/4" (6 mm) ID

1шт.

27a

23524R1

O-RING,0.07" Thk x 0.208" ID, -9, Cl 6, 90 Duro

Inner, (5 mm)

1шт.

28

9841223

PLUG,1-1/16" - 12 ORB

Load check, Incl. Ref. 29

1шт.

29

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Plug

1шт.

30

R30189

SPRING

load check

1шт.

31

D87082

VALVE POPPET

load check

1шт.

32

D78449

VALVE

anticavitation, parts list Figure 8-140, no longer used, order N14024 valve on Figure 8-142

1шт.
