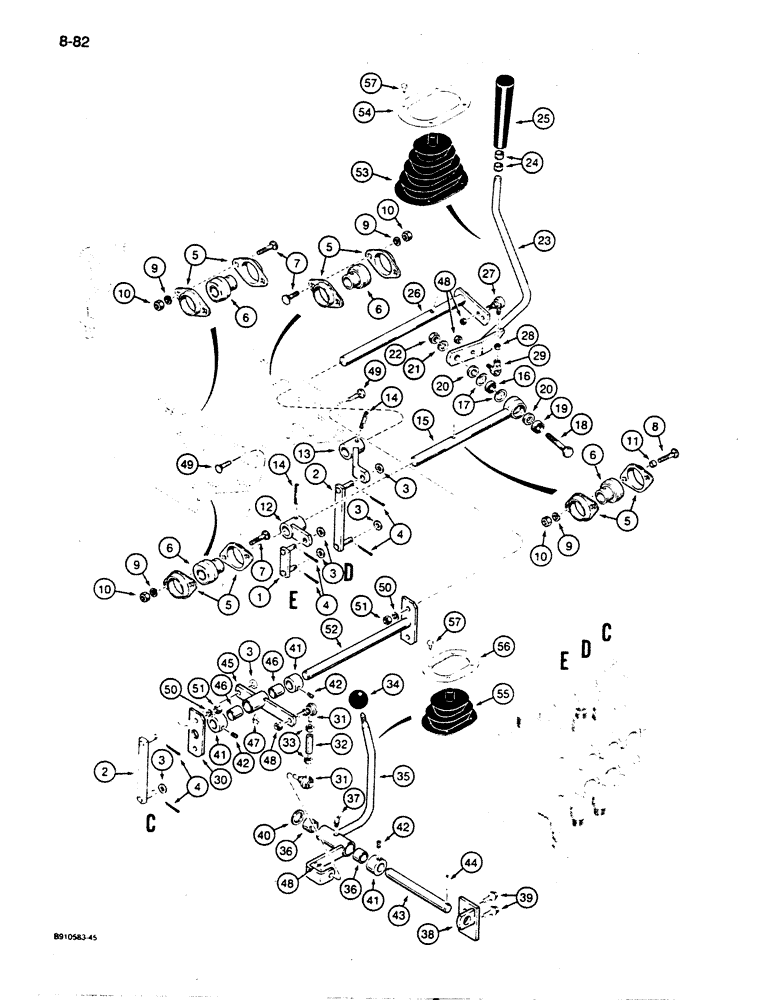

Запчасти Case 850D (8-082) - EQUIPMENT CONTROL VALVE AND LEVERS, TWO LEVERS - THREE SPOOL (08) - HYDRAULICS

REF

INSTRUCTION

VALVE ASSEMBLY - equipment control, for correct assembly and components see Figures 8-092, 8-094, and 8-102, for mounting see Figure 8-078

1шт.

1

R56425

POWER ARM

short, at control valve spool

1шт.

2

R56423

POWER ARM

long, at control valve spool

2шт.

3

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat

6шт.

4

132-320

COTTER PIN,3/32" x 3/4"

6шт.

5

469924R1

FLANGE

ball bearing

8шт.

6

R36380

BALL BEARING,19.05 mm ID x 47 mm OD x 15, 30.96 mm

shaft

4шт.

7

411-516

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

6шт.

8

411-524

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/2", Gr 2

2шт.

9

492-11031

LOCK WASHER,5/16"

8шт.

10

425-105

NUT,5/16"-18, G5

8шт.

11

R56431

SPACER

ball bearing

2шт.

12

R27689

LEVER

spool, Serial Range: link-shaft

1шт.

13

R56429

LEVER

angled, spool to upper shaft

1шт.

14

138-2053

PIN,1/4" x 1 1/4", Coiled

2шт.

R56413

SHAFT ASSY.

lower, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

SHAFT - lower

1шт.

16

R56407

BEARING, BALL,12.7 mm ID x 28.575 mm OD x 7.938 mm

shaft

1шт.

17

A36277

SNAP RING,1.125", Int, #112

Ball brg

2шт.

18

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

19

R56407

BEARING, BALL,12.7 mm ID x 28.575 mm OD x 7.938 mm

shaft

1шт.

20

R56436

SPACER

ball bearing

2шт.

21

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

22

425-108

NUT,1/2" - 13, Gr 5

1шт.

23

R56421

LEVER

dual control (lift and tilt)

1шт.

24

R38655

RING

knob, dual control lever

2шт.

25

R38654

KNOB

dual control lever

1шт.

26

R56427

SHAFT

upper

1шт.

27

R47939

ROD

ball, male

1шт.

28

425-115

NUT,5/16"-24, G5

1шт.

29

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

female

1шт.

30

R56435

LARGE PLATE

PLATE, LARGE mounting, control shaft

1шт.

31

R47939

ROD

ball, male

2шт.

32

R27647

LINK

ball joints

1шт.

33

425-115

NUT,5/16"-24, G5

2шт.

34

70213

KNOB

control lever

1шт.

R52148

LEVER ASSY.

control, auxiliary, Includes: Ref. 35 - 37

1шт.

35

NSS

NOT SOLD SEPARAT

LEVER - control, auxiliary

1шт.

36

R52129

BRONZE BUSHING

BRONZE BUSH

2шт.

37

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

1шт.

38

R36889

BRACKET

mounting, control lever

1шт.

39

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

2шт.

40

D35268

SHIM,1/32" Thk

(25/32" ID x 1-1/4" OD), Special finish

1шт.

41

T10676

COLLAR

locking, lever retaining

3шт.

42

83-55

SET SCREW,Hex Soc, 5/16"-18 x 5/16", Cup Pt

3шт.

43

R47819

SHAFT

auxiliary control lever

1шт.

44

138-63

LOCK PIN,1/8" x 1 1/4", Slotted

1шт.

R52862

LEVER ASSY.

shaft, auxiliary, Includes: Ref. 45 - 47

1шт.

45

NSS

NOT SOLD SEPARAT

LEVER - auxiliary

1шт.

46

R52129

BRONZE BUSHING

BRONZE BUSH ball, shaft

2шт.

47

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

1шт.

48

131-1231

LOCK NUT,5/16"-24, GC

4шт.

49

411-516

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

4шт.

50

492-11031

LOCK WASHER,5/16"

4шт.

51

425-105

NUT,5/16"-18, G5

4шт.

52

R56434

SHAFT

control, auxiliary

1шт.

53

R47896

BOOT

dual control lever,if used

1шт.

54

R47893

ANCHOR

dual control lever boot, if used

1шт.

55

R47897

BELLOWS

auxiliary control lever, if used

1шт.

56

R47894

ANCHOR

boot, auxiliary control lever, if used

1шт.

57

187-1904

SELF-TAP SCREW,Cross Truss Hd, #10 x 1/2"

8шт.
