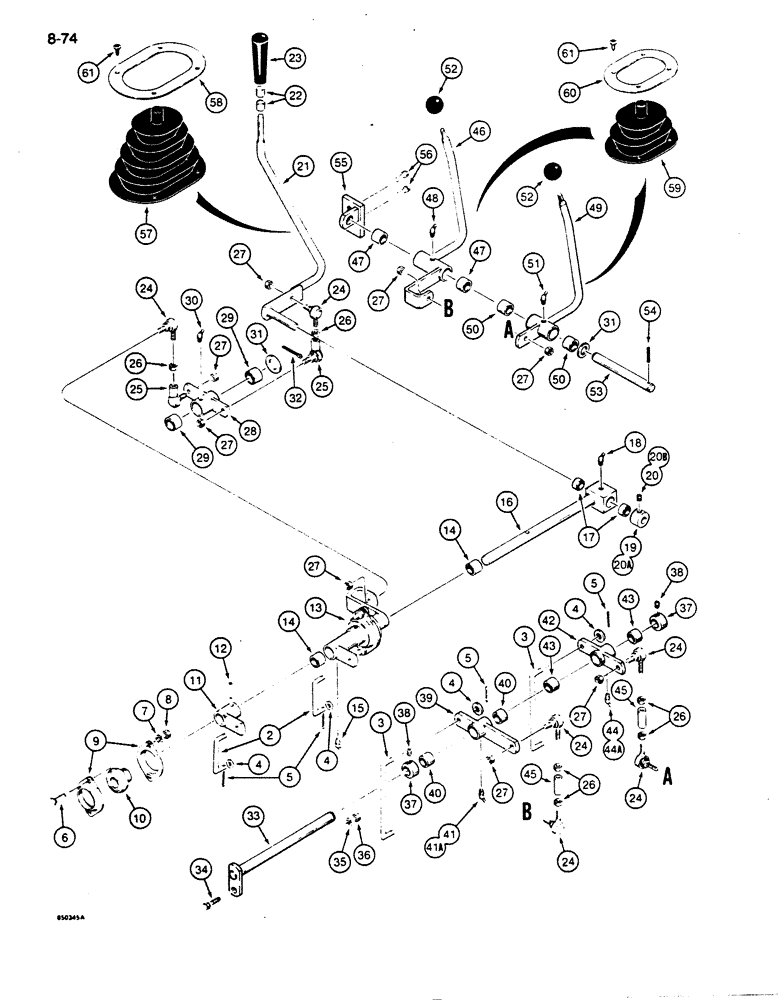

Запчасти Case 850D (8-074) - EQUIPMENT CONTROL LEVERS AND LINKAGE, THREE CONTROL LEVERS - FOUR SPOOL VALVE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
CONTROL VALVE - four spool, for correct assembly and components see Figure 8-096, 8-098, 8-104 or 8-106, not shown
1шт.
2
R48761
LINK
short, spool, Serial Range: eye-levers
2шт.
3
R48762
LINK
long, spool, Serial Range: eye-levers
2шт.
4
195-525
WASHER,3/8", SAE
8шт.
5
132-320
COTTER PIN,3/32" x 3/4"
8шт.
6
111-203
CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G2
2шт.
7
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
2шт.
8
9635082
NUT,5/16" - 18, Gr 5
2шт.
9
469924R1
FLANGE
ball bearing
2шт.
10
R36380
BALL BEARING,19.05 mm ID x 47 mm OD x 15, 30.96 mm
shaft
1шт.
11
R54249
LEVER
short links, rear
1шт.
12
138-304
LOCK PIN,1/4" x 1 1/4", Slotted
1шт.
R52144
TUBE
short links, Includes: Ref. 13 - 15
1шт.
13
NSS
NOT SOLD SEPARAT
BELLCRANK - links
1шт.
14
R52129
BRONZE BUSHING
BRONZE BUSH
2шт.
15
219-53
LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF
1шт.
16
R52146
SHAFT
bellcrank, lower, Includes: Ref. 17 & 18
1шт.
17
R52130
BRONZE BUSHING
BRONZE BUSH
2шт.
18
219-46
LUBE NIPPLE,65 Degree Elbow, 5/16" NPTF
1шт.
19
D81756
COLLAR
locking, with 1/4" set screw, if used, Includes: Ref. 20
1шт.
20
127782
SET SCREW,Hex Skt, 1/4"-20 x 1/4", Cup Pt
1шт.
20a
R42435
COLLAR
Locking, with 5/16" set screw, if used, Includes: Ref. 20B
1шт.
20b
83-54
SET SCREW,Hex Soc, 5/16"-18 x 1/4", Cup Pt
1шт.
21
R38721
LEVER
equipment
1шт.
22
R38655
RING
knob, control lever
2шт.
23
R38654
KNOB
lift control lever
1шт.
24
R47939
ROD
male
6шт.
25
H289652
BALL JOINT,5/16" - 24 x 1-3/8" L
female
2шт.
26
129-122
NUT,5/16"-24, G5
6шт.
27
131-1231
LOCK NUT,5/16"-24, GC
8шт.
28
R52151
LINKAGE YOKE
ball joints, Includes: Ref. 29 & 30
1шт.
29
R52129
BRONZE BUSHING
BRONZE BUSH
2шт.
30
219-53
LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF
1шт.
31
D35268
SHIM,1/32" Thk
At ball joint lever and auxiliary control levers
1шт.
32
132-310
COTTER PIN,1/8" x 1"
1шт.
33
R52858
SHAFT
lever, upper, 11-5/16" (287 mm) overall length, replaces 11" long shaft
1шт.
34
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
1шт.
35
192-21
LOCK WASHER,3/8"
1шт.
36
129-103
NUT,Hex, 3/8" - 16, Gr 5
1шт.
37
T10676
COLLAR
locking, lever retaining
2шт.
38
83-55
SET SCREW,Hex Soc, 5/16"-18 x 5/16", Cup Pt
2шт.
39
R52862
LEVER ASSY.
long link, upper shaft, rear, Includes: Ref. 40, 41 & 41A
1шт.
40
R52129
BRONZE BUSHING
BRONZE BUSH 3/4" long
2шт.
41
219-46
LUBE NIPPLE,65 Degree Elbow, 5/16" NPTF
If used
1шт.
41a
219-53
LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF
If used
1шт.
42
R52860
LEVER ASSY.
long link, upper shaft, front, 1-3/4" (45 mm) bearing pivot width, with 3/16" grease fitting, replaces lever with 5/16" grease fitting, Includes: Ref. 43, 44 & 44A
1шт.
43
R52129
BRONZE BUSHING
BRONZE BUSH
2шт.
44
219-46
LUBE NIPPLE,65 Degree Elbow, 5/16" NPTF
If used
1шт.
44a
219-53
LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF
If used
1шт.
45
R27647
LINK
threaded, ball joints
2шт.
46
R52148
LEVER ASSY.
auxiliary, inner, Includes: Ref. 47 & 48
1шт.
47
R52129
BRONZE BUSHING
BRONZE BUSH
2шт.
48
219-53
LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF
1шт.
49
R52150
LEVER ASSY.
auxiliary, outer, Includes: Ref. 50 & 51
1шт.
50
R52129
BRONZE BUSHING
BRONZE BUSH
2шт.
51
219-53
LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF
1шт.
52
70213
KNOB
auxiliary control levers
2шт.
53
R47819
SHAFT
auxiliary control levers
1шт.
54
138-63
LOCK PIN,1/8" x 1 1/4", Slotted
1шт.
55
R36889
BRACKET
lever mounting, bolts to hydraulic reservoir
1шт.
57
R47896
BOOT
lift lever, if used
1шт.
58
R47893
ANCHOR
boot, lift lever, if used
1шт.
59
R47897
BELLOWS
auxiliary control lever, if used
2шт.
60
R47894
ANCHOR
boot, auxiliary control lever, if used
2шт.
61
187-1904
SELF-TAP SCREW,Cross Truss Hd, #10 x 1/2"
Black, Replaces hex washer head screw used on some models
12шт.
Выбрано товаров: 66
