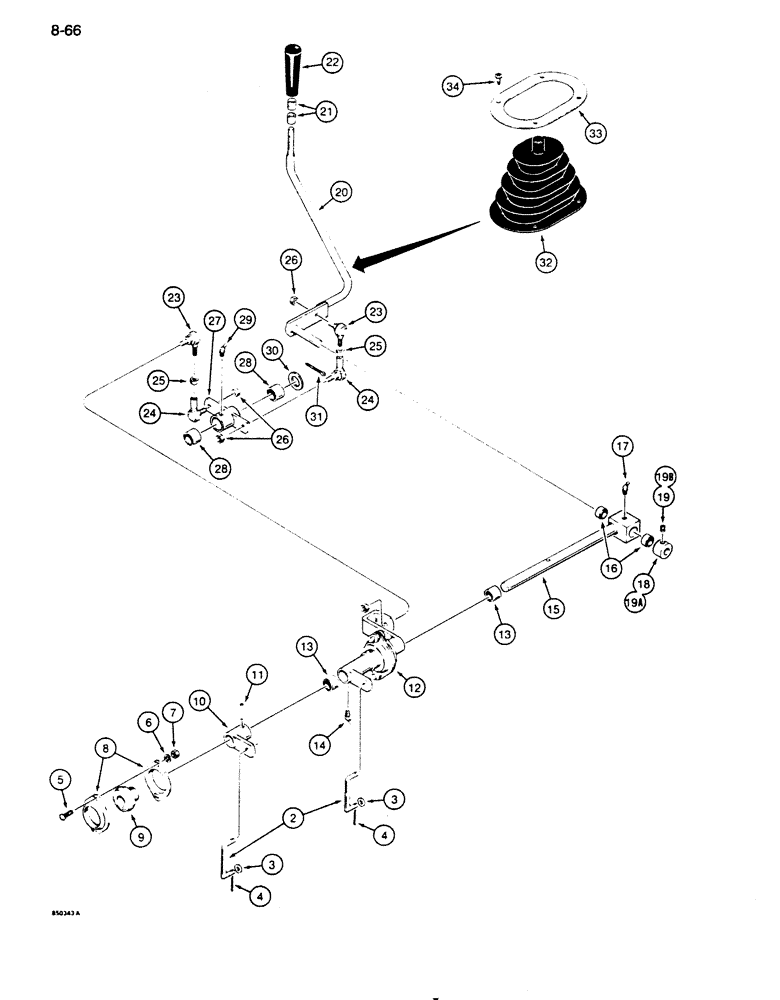

Запчасти Case 850D (8-066) - EQUIPMENT CONTROL LEVERS AND LINKAGE, ONE CONTROL LEVER - TWO SPOOL VALVE (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - two spool, parts list Figures 8-090 and 8-100, not shown

1шт.

2

R48761

LINK

spool, Serial Range: eye-levers

2шт.

3

195-525

WASHER,3/8", SAE

4шт.

4

132-320

COTTER PIN,3/32" x 3/4"

4шт.

5

111-203

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G2

2шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

7

9635082

NUT,5/16" - 18, Gr 5

2шт.

8

469924R1

FLANGE

ball bearing

2шт.

9

R36380

BALL BEARING,19.05 mm ID x 47 mm OD x 15, 30.96 mm

shaft

1шт.

10

R54249

LEVER

links, rear

1шт.

11

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

R52144

TUBE

links, Includes: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

BELLCRANK - links

1шт.

13

R52129

BRONZE BUSHING

BRONZE BUSH

2шт.

14

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

1шт.

15

R52146

SHAFT

bellcrank, Includes: Ref. 16 & 17

1шт.

16

R52130

BRONZE BUSHING

BRONZE BUSH

2шт.

17

219-46

LUBE NIPPLE,65 Degree Elbow, 5/16" NPTF

1шт.

18

D81756

COLLAR

locking, with 1/4" set screw, if used, Includes: Ref. 19

1шт.

19

127782

SET SCREW,Hex Skt, 1/4"-20 x 1/4", Cup Pt

1шт.

19a

R42435

COLLAR

Assy - locking, with 5/16" set screw, if used, Includes: Ref. 19B

1шт.

19b

83-54

SET SCREW,Hex Soc, 5/16"-18 x 1/4", Cup Pt

1шт.

20

R38721

LEVER

equipment, Includes: Ref. 28 & 29

1шт.

21

R38655

RING

knob, control lever

2шт.

22

R38654

KNOB

control lever

1шт.

23

R47939

ROD

male

2шт.

24

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

female

2шт.

25

129-122

NUT,5/16"-24, G5

2шт.

26

131-1231

LOCK NUT,5/16"-24, GC

4шт.

27

R52151

LINKAGE YOKE

Includes: Ref. 28 & 29

1шт.

28

R52129

BRONZE BUSHING

BRONZE BUSH bronze

2шт.

29

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

1шт.

30

D35268

SHIM,1/32" Thk

Ball joint lever

1шт.

31

132-310

COTTER PIN,1/8" x 1"

1шт.

32

R47896

BOOT

lift lever, if used

1шт.

33

R47893

ANCHOR

boot, if used

1шт.

34

F45307

SCREW

Phillips head, self-tapping, No. 10 - 16 x 1/2", plated, replaces hex washer head screw used on some models

4шт.
