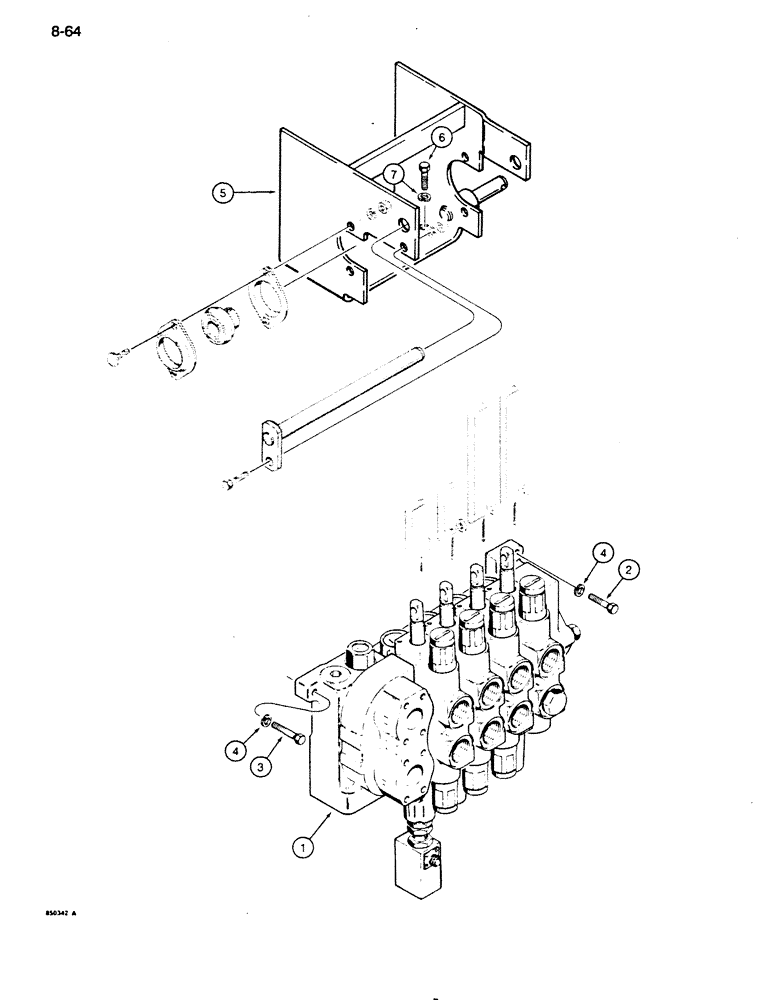

Запчасти Case 850D (8-064) - EQUIPMENT CONTROL VALVE MOUNTING, PRIOR TO DOZER PIN JAK0002062 OR LOADER PIN JAK0005723 (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - equipment, for correct assembly and components see Figures 8-090 through 8-106

1шт.

2

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

3

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

4

192-21

LOCK WASHER,3/8"

3шт.

5

R53489

BRACKET

shaft and linkage mounting

1шт.

6

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

7

192-21

LOCK WASHER,3/8"

4шт.
