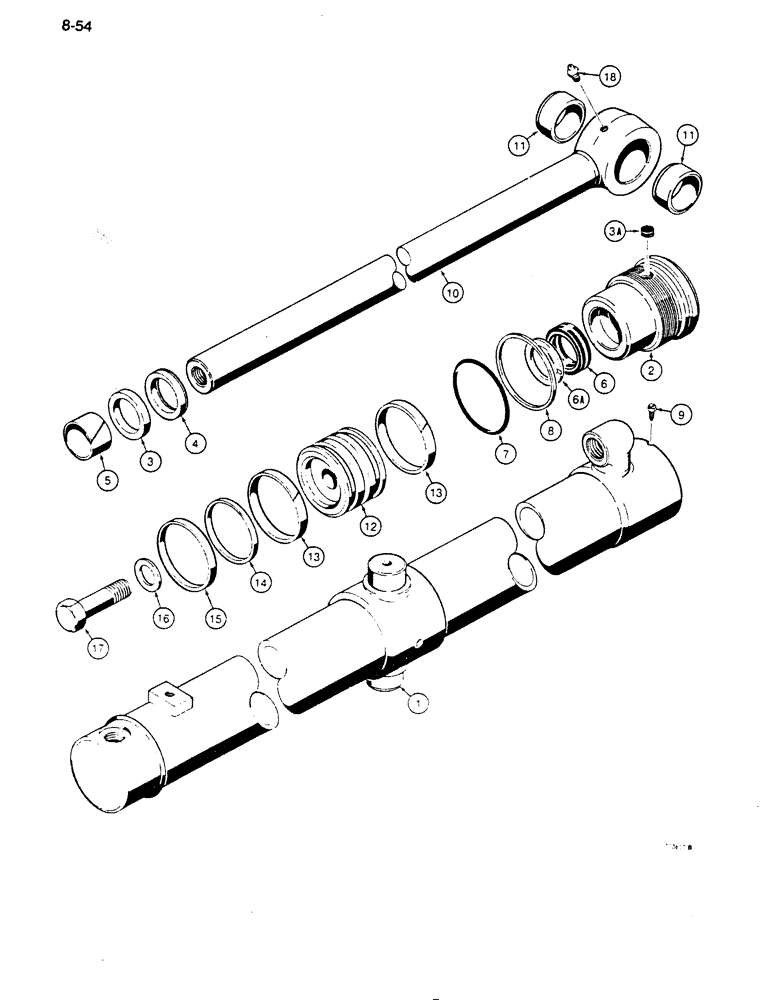

Запчасти Case 850D (8-054) - G101217 DOZER LIFT CYLINDERS (08) - HYDRAULICS

G101217

CYLINDER

dozer lift, 3" (76 mm) ID x 29-19/32" (752 mm) stroke, Includes: Ref. 1 - 18

2шт.

1

G109136

TUBE,2.996" ID x 36.97" L

cylinder

1шт.

G104222

GLAND

cylinder, Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

RETAINING RING - gland

1шт.

3a

G102569

PLUG

nylon, thread locking, gland, if used

1шт.

4

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

piston rod

1шт.

Part of Seal Kit, P/N G109452

1шт.

5

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

Center

1шт.

Part of Seal Kit, P/N G109452

1шт.

6

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

U-CUP - piston rod, wide, with O-ring

1шт.

Part of Seal Kit, P/N G109452

1шт.

6

G100776

SEAL

U-CUP - piston rod, service option - severe heat or cold

1шт.

6a

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

piston rod, narrow

1шт.

Part of Seal Kit, P/N G109452

1шт.

7

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

gland

1шт.

Part of Seal Kit, P/N G109452

1шт.

8

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

gland O-ring

1шт.

Part of Seal Kit, P/N G109452

1шт.

9

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

If used

1шт.

10

G35470

ROD

piston, 1-1/2" (38 mm) diameter, Includes: Ref. 11

1шт.

11

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

piston rod

2шт.

12

G100442

PISTON

cylinder

1шт.

13

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

2шт.

Part of Seal Kit, P/N G109452

1шт.

14

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

piston seal

1шт.

Part of Seal Kit, P/N G109452

1шт.

15

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

Piston

1шт.

Part of Seal Kit, P/N G109452

1шт.

16

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

hardened

1шт.

17

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

G109452

GASKET KIT

Includes: Ref. 4, 5, 6, 6A, 7, 8, 13, 14, & 15

1шт.
