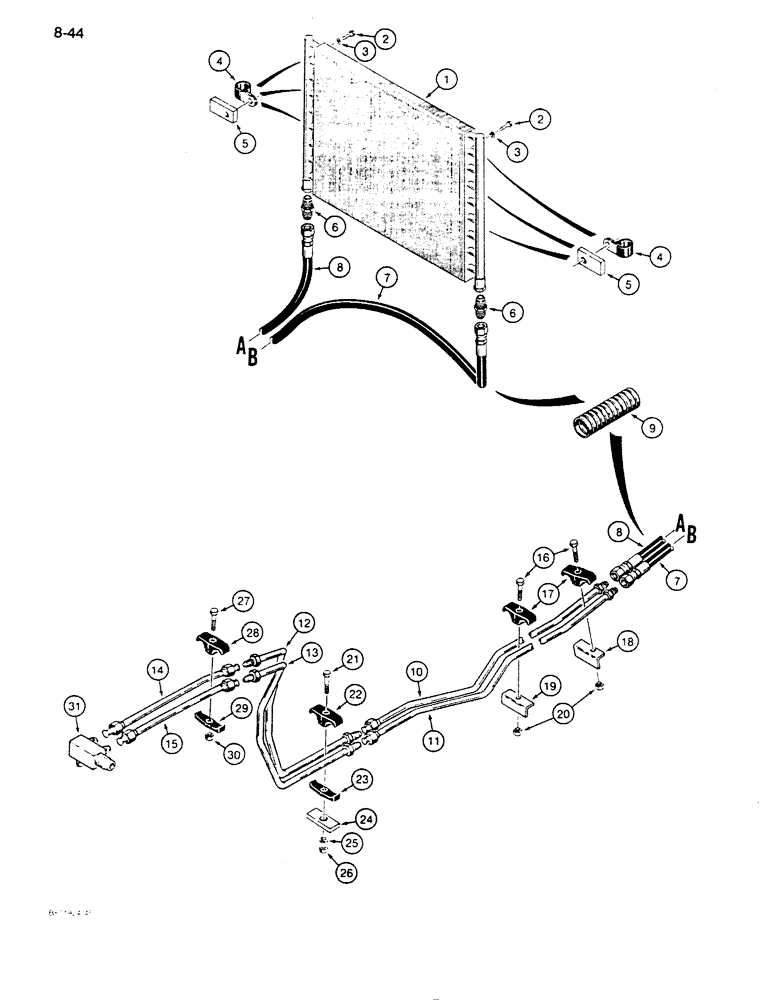

Запчасти Case 850D (8-044) - BACKHOE HYDRAULIC CIRCUIT, COOLING SYSTEM, HOSE CONNECTION ON EACH END OF COOLER, IF USED (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
H390104
COOLER
backhoe hydraulic circuit, Serial Range: bolts-radiator
1шт.
2
113-102
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
6шт.
3
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
6шт.
4
L11553
MOUNTING CLIP
oil cooler retaining
6шт.
5
R54489
LARGE PLATE
PLATE, LARGE tapped, Serial Range: weld-radiator
6шт.
6
218-1027
HYD CONNECTOR,1 1/16"-12, 37 Degree x 1"-11 1/2, NPTF
straight
2шт.
7
R31065
HOSE
45" (1143 mm) long, oil cooler, right-hand side
1шт.
8
H250340
HYDRAULIC HOSE,19.05 mm ID x 660.40 mm, SAE 100R1
Oil Cooler, LH Side
1шт.
9
R43084
HOSE PROTECTION
hose, 12" (305 mm) long, cut from R43083 guard, see below
3шт.
10
R35175
TUBE,0.75" OD
front, outer
1шт.
11
R35177
TUBE,0.75" OD
front, inner
1шт.
12
R37401
TUBE,0.75" OD
center, outer
1шт.
13
R37399
TUBE,0.75" OD
center, inner
1шт.
14
R50927
TUBE
rear, outer
1шт.
15
R50925
TUBE
rear, inner
1шт.
16
113-219
BOLT,Hex, 3/8" - 16 x 2", Gr 5
2шт.
17
D124301
CLAMP,3/4" ID
tubes, plastic
2шт.
18
R35297
BRACKET
tube support, front, weld to engine frame
1шт.
19
R35295
BRACKET
tube support, center, weld to engine frame
1шт.
20
129-103
NUT,Hex, 3/8" - 16, Gr 5
2шт.
21
113-248
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5
1шт.
22
D124301
CLAMP,3/4" ID
tubes, plastic
1шт.
23
D120614
CLAMP,25mm W x 68mm L x 9mm Thk
tubes, plastic
1шт.
24
R35857
BAR
clamp mounting, under main frame bracket for transmission dual control lever mounting, if used
1шт.
25
192-21
LOCK WASHER,3/8"
1шт.
26
129-103
NUT,Hex, 3/8" - 16, Gr 5
1шт.
27
113-219
BOLT,Hex, 3/8" - 16 x 2", Gr 5
1шт.
28
D124301
CLAMP,3/4" ID
tubes, plastic
1шт.
29
D120614
CLAMP,25mm W x 68mm L x 9mm Thk
tubes, plastic
1шт.
30
129-103
NUT,Hex, 3/8" - 16, Gr 5
1шт.
31
R54565
MANIFOLD
backhoe hydraulic circuit, use only with H390104 oil cooler
1шт.
R43083
LOOM
hose, 22" (559 mm) long
1шт.
