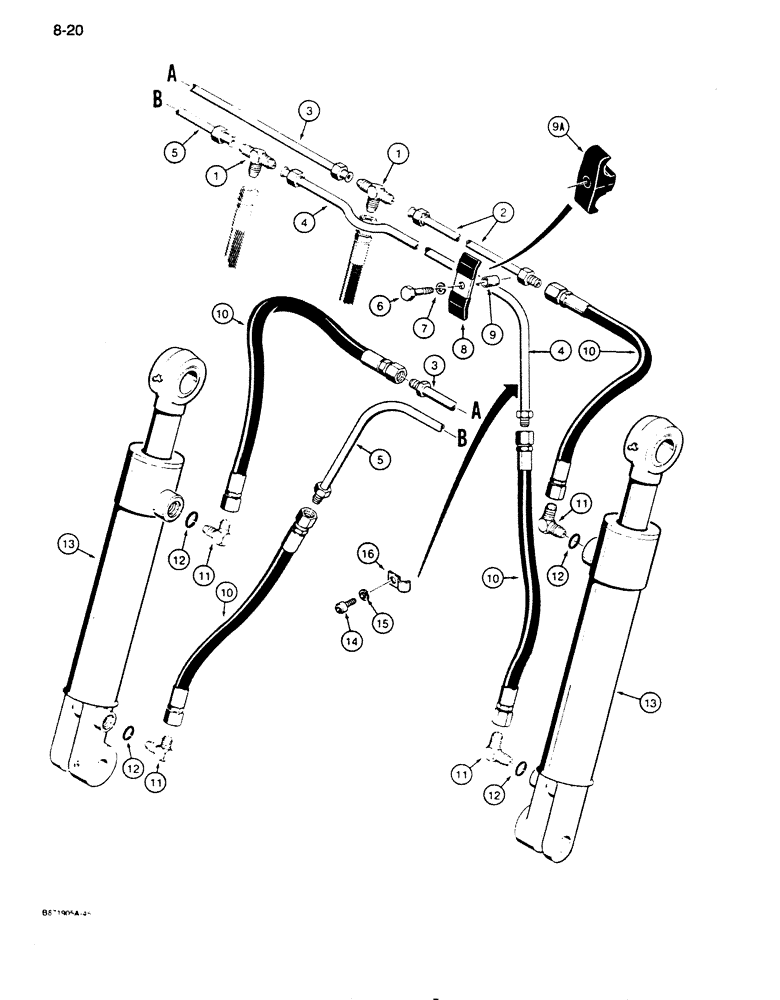

Запчасти Case 850D (8-020) - CLAM BUCKET HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

218-605

TEE,37 Degree, 7/8"-14 x 1 1/16"-12, Br

male

2шт.

2

R35431

TUBE,0.625" OD x 19.9" L

right-hand upper

1шт.

3

R35429

TUBE,0.625" OD x 24.3" L

left-hand upper

1шт.

4

R35435

TUBE,0.625" OD

right-hand lower

1шт.

5

R35433

TUBE,0.625" OD x 13.02, 14.54" L

left-hand lower

1шт.

6

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

7

192-21

LOCK WASHER,3/8"

3шт.

8

D40236

CLAMP

tubes to back of blade, if used

3шт.

9

D76209

SPACER

clamp, if used

3шт.

9a

D120613

CLAMP,20mm ID

tubes to back of blade, replaces metal clamp and spacer used on some models

3шт.

10

D64000

HOSE

20" (528 mm) long

4шт.

11

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adjustable, Incl. Ref. 12

4шт.

12

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Elbow

1шт.

13

G101211

CYLINDER BLOCK

clam bucket, parts list Figure 8-052

2шт.

14

61-610

HEX SOC SCREW,3/8"-16 x 5/8"

2шт.

15

192-21

LOCK WASHER,3/8"

2шт.

16

R41366

CLIP

tube retaining

2шт.
