Запчасти Case 850D (7-12) - MANUAL (PARKING) BRAKES (07) - BRAKES

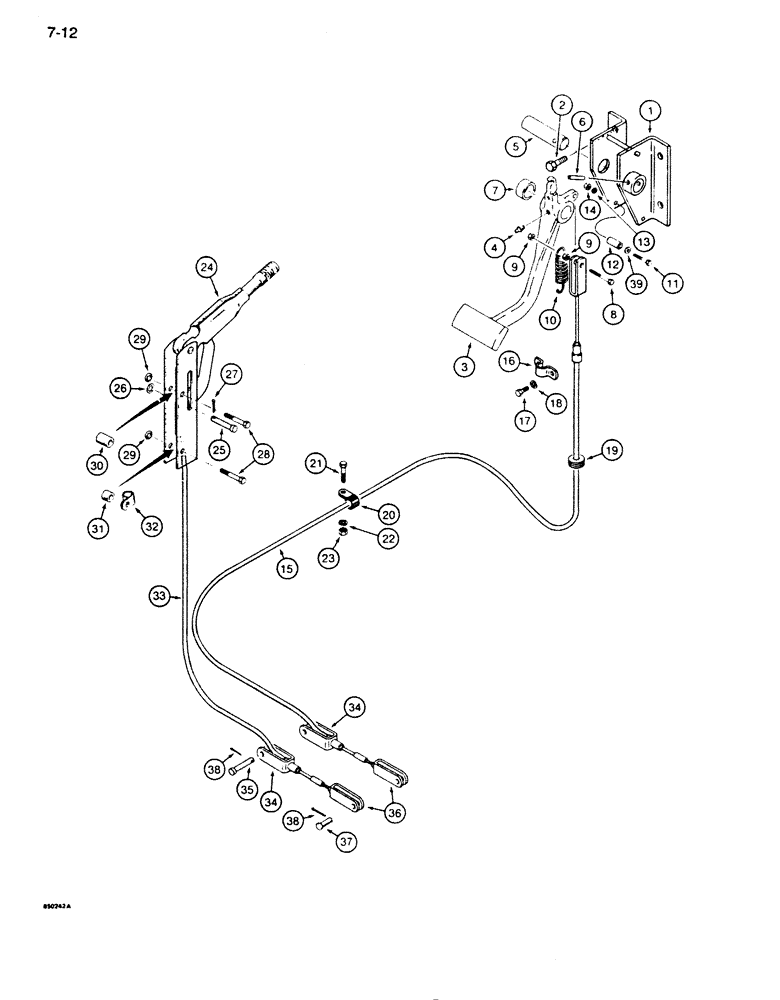

Схема запчастей Case 850D - (7-12) - MANUAL (PARKING) BRAKES (07) - BRAKES
35
9
19
29
2
27
17
4
32
10
8
36
29
6
15
1
30
38
23
37
9
34
31
21
24
14
25
20
28
5
18
38
3
12
34
13
39
11
33
26
22
7
16

Артикул

Название

Примечание

Количество

1

R51562

SUPPORT

foot pedal and spring mounting

1шт.

2

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

4шт.

3

R51498

PEDAL

parking brake

1шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

5

R51510

SHAFT

pedal

1шт.

6

138-2016

PIN,1/4" x 1 7/8", Coiled

1шт.

7

R51509

SPACER

Brake pedal, LH

1шт.

8

113-129

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5, Full Thd

Spring, Upper

1шт.

9

231-1445

NUT,5/16"-18, GB

2шт.

10

D120911

SPRING

foot pedal

1шт.

11

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Spring retaining, lower

1шт.

12

H297432

SPACER

lower spring retaining bolt

1шт.

13

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

1шт.

14

7770

NUT,Hex, 1/4 - 20, Cl 5

1шт.

15

R51580

CABLE

foot pedal to brake adjusters on transmission

1шт.

16

R26118

CLAMP

foot, Serial Range: cable-firewall

1шт.

17

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

18

192-21

LOCK WASHER,3/8"

2шт.

19

H114272

GROMMET,3/4" ID x 1 1/16" Groove Dia, Str Cut

foot cable through firewall

1шт.

20

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

foot cable to engine frame with brake supply tubes

1шт.

21

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

22

192-21

LOCK WASHER,3/8"

1шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

1шт.

D40687

LEVER

parking brake, Includes: Ref. 24 - 27

1шт.

24

NSS

NOT SOLD SEPARAT

CONTROL LEVER - parking brake

1шт.

25

D42458

PIN

cable to control lever

1шт.

26

195-103

WASHER,5/16"

1шт.

27

132-320

COTTER PIN,3/32" x 3/4"

1шт.

28

26-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8

2шт.

29

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

30

D40685

SPACER

long, upper

1шт.

31

D30863

TUBE

short, lower

1шт.

32

D40684

CLAMP,12.7mm ID, 8.78mm Bolt Hole, P Type

P-style, hand lever cable

1шт.

33

R51589

CABLE ASSY.

hand lever to brake adjusters on transmission

1шт.

34

R51613

CLEVIS

Cable to brake adjuster lever, LH

2шт.

35

S10754

LINCH PIN

LH clevises

1шт.

36

R51621

CLEVIS

Cable to brake adjuster lever, RH

2шт.

37

H45096

SPLIT PIN/SAFETY PIN

RH clevises

1шт.

38

132-334

COTTER PIN,1/8" x 3/4"

2шт.

39

195-102

WASHER,1/4"

flat, plated, use with lower spring retaining bolt

1шт.

Выбрано товаров: 40
