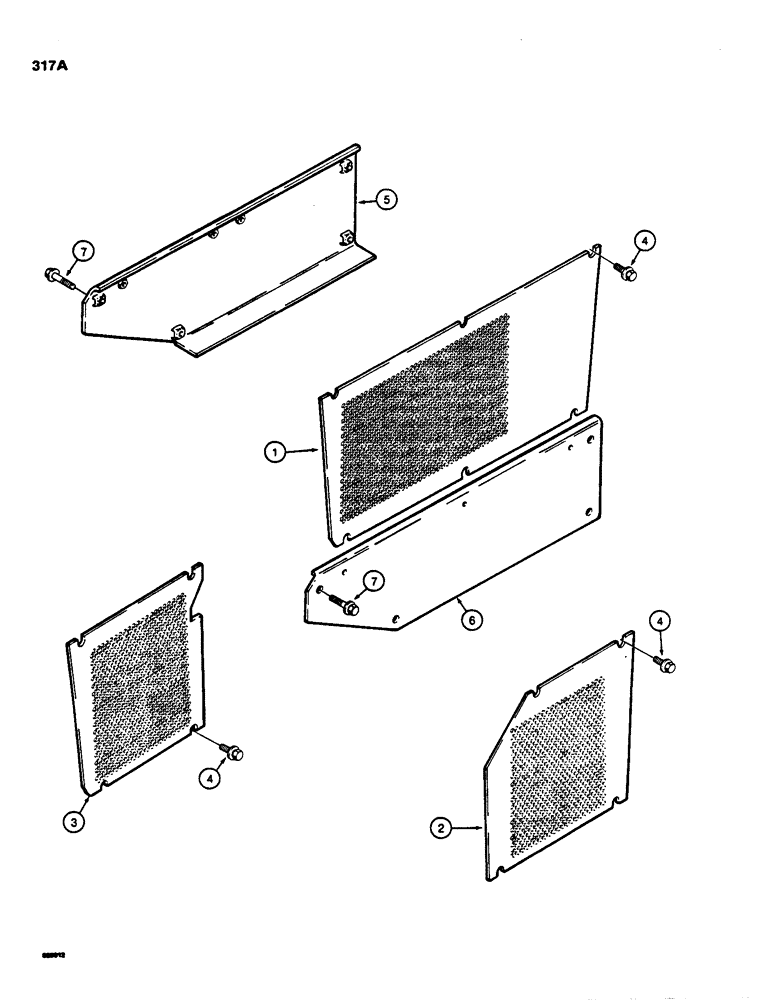

Запчасти Case 850C (317A) - ENGINE SIDE SHIELDS, 850C CRAWLER TRACTOR (05) - UPPERSTRUCTURE CHASSIS

1

R42614

SHIELD

- engine side, loader models

2шт.

2

R42612

SHIELD

- engine side, front, dozer models

2шт.

3

R42613

LARGE PLATE

SHIELD - engine side, rear, dozer models

2шт.

4

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1", G8, Full Thd

12-16шт.

5

R32795

SHIELD - lower, left-hand, loader and dozer models

1шт.

6

R32796

SHIELD - lower, right-hand, loader and dozer models

1шт.

7

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

8шт.
