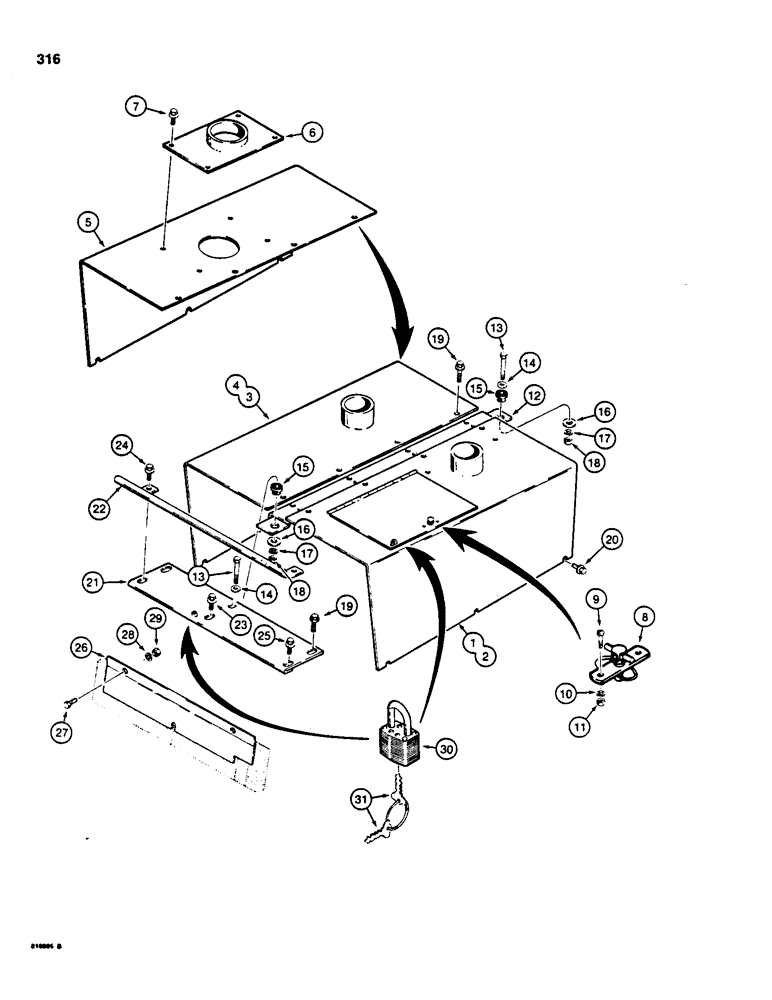

Запчасти Case 850C (316) - HOODS (05) - UPPERSTRUCTURE CHASSIS

1

R46016

HOOD

- right-hand, used on models without turbocharger

1шт.

2

R46017

HOOD

- right-hand, used on models with turbocharger

1шт.

3

R37154

HOOD

- left-hand, used on models without turbocharger

1шт.

4

R40253

HOOD

- left-hand, one-piece, used on on models with turbocharger, no longer available, order R47599 hood, R47601 air cleaner mounting plate, & 4 121-234 bolts 5R47599HOOD - left-hand, used on models with turbocharger, use with R47601 plate

1шт.

6

R47601

PLATE

- air cleaner mounting

1шт.

7

121-234

BOLT,Hex Flg, 3/8"-16 x 1", G8, Full Thd

4шт.

8

L102515

LATCH

FASTENER - access door, hood

1шт.

9

182-125

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

MACHINE SCREW - no 10 - 24 NC x 1/2"

2шт.

10

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

11

129-7

NUT,Hex, #10 - 24

- hex, no 10 - 24 NC

2шт.

12

R34655

BRACKET - hood mounting

1шт.

13

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex head, 1/2" - 13 NC x 2-1/2"

2шт.

14

195-33

WASHER,1/2"

- flat, 1/2"

2шт.

15

R29799

SHOCK ABSORBER

INSULATOR - rubber, mounting

2шт.

16

D25022

WASHER

- hardened

2шт.

17

92-8

LOCK WASHER,1/2"

2шт.

18

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

19

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

10шт.

20

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1", G8, Full Thd

6шт.

21

R40722

PLATE

- hood extension, includes decals

1шт.

22

R43077

HANDLE

HANDRAIL - hood extension plate

1шт.

23

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT - flange head, 3/8" - 16 NC x 3/4", Teflon coated

1шт.

24

121-234

BOLT,Hex Flg, 3/8"-16 x 1", G8, Full Thd

Used on models with handrail (without cab) Hex Flg, 3/8"-16 x 1", G8, Full Thd

2шт.

25

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT - flange head, 3/8" - 16 NC x 3/4", Teflon coated, used on cab models only (no handrail)

2шт.

26

R34145

NOISE PROTECTION

PANEL - noise reduction, if used, for pad see figure 336

1шт.

27

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

28

92-6

LOCK WASHER,3/8"

2шт.

29

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

30

D93753

PADLOCK

- includes keys, if used, Includes: Ref. 31 and 32

2шт.

31

R29555

KEY

- for Master padlock only

2шт.

32

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.
